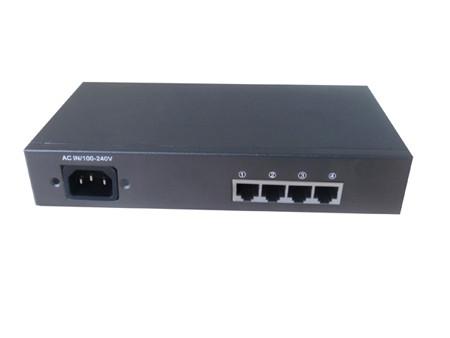

WD-504M-PoE(af) 4 Ports 500Mbps PoE power supply PLC Ethernet bridge
WD-504M-PoE(af) 4 Ports 500Mbps PoE power supply PLC Ethernet bridge
Specifications
Brand Name :
Wondertek
Model Number :
WD-504M-PoE(af)
Certification :
FCC,CE,ROHS
Place of Origin :
China
MOQ :
10 sets
Supply Ability :
1000 sets per month
Delivery Time :
5-48 days after payment
Packaging Details :
White neutral box or customised box
Interface :
4*LAN10/100 Base-TXRJ45
Transmission frequence band :
2-68MHz
Quantity of a group(Max) :
15 pieces
Plug standard :
EU,UK,US,China
Description
Brief introduction
WD-504M-PoE transfers the network data through the existing power line, just plug it into the power source socket wherever you can get, the transmission rate up to 500Mbps, it has 4 Ethernet POE power supply interfaces which can contact with the POE power supply devices just as net camera quickly. It adopts 128-bit AES data encryption and key management technology which can guarantee the safety of the network.

Topology

Specification

Specifications
Model WD-504M-PoE(af) 4 Ports PLC bridge
Interface 4*LAN10/100 Base-TXRJ45
LED display light Power (on/off)
PLC (conected/activity)
ETH (link/activity) PoE(on.off)
Button Pairing button
Transmission frequence band 2-68MHz
Standard Protocol HomePlug
IEEE 802.3,IEEE 802.3u 10/100 IEEE802.3af standard
Security 128-AES
O/S Windows 7 (32 Bit), Windows 7 (64 Bit)
Windows 8.x (32 Bit), Windows 8.x (64 Bit), Windows 8.x Pro (32 Bit), Windows 8.x Pro (64 Bit)
Ubuntu-Linux 12.04 (32 Bit)
MAC OS X 10.6, MAC OS X 10.7, MAC OS X 10.8, MAC OS X 10.9
Modulate OFDM
Quantity of a group(Max) 15 pieces
Modulation • Carrier Powerline OFDM - 4096/1024/512/256/64-QAM, QPSK, BPSK • Powerline 2880
Plug standard EU,UK,US,China
Power over Ethernet DC48V, 15.4W Ordinary Ethernet cable Data: 1,2 & 3,6 Power:4,5 & 7,8
Power over plug AC 100V-240V 60/50Hz
Weight 0.7kg
Operating environment Working temperature:0℃-70℃Operating humidity10%-90% (non-condensation state)
Certification FCC,CE,ROHS

Features
1,The transmission rate (PHY) up to 500Mbps.
2,No wiring.
3,No setting, just plug and play, supply 48V power for Ethernet line which transfers the network signals.
4,Built-in POE power supply function suits to home monitoring system or other network devices which support POE power supply function.
5,Adopt 128-bit data encryption and key management technology.
6,Could be linked in computers and other network terminals, where is a socket, there is a network.
7,Low cost design.
