SF6 Density Relay ChecSF6 Density Meter Check 0.2 Level
SF6 Density Relay ChecSF6 Density Meter Check 0.2 Level
SF6 Density Relay ChecSF6 Density Meter Check 0.2 Level
SF6 Density Relay ChecSF6 Density Meter Check 0.2 Level
Specifications
Brand Name :
KSTONE
Model Number :
KS2001
Certification :
ISO9001
Place of Origin :
Shanghai
MOQ :
1
Price :
$3000-$5000
Payment Terms :
T/T
Supply Ability :
10 set/year
Delivery Time :
30waok days
Packaging Details :
Carton / Wooden Box
Application :
Density meter calibrator
Accuracy Level :
0.1 level
Storage Temperature :
-20°C to 60°C
Resistance Measurement Accuracy :
±5%FS
Pressure Display Resolution :
0.0001 MPa
Pressure Calibration Range :
0 ~ 1.0 MPa
Temperature Measurement Range :
-50°C ~ 150°C
Power Supply :
Power Supply Lithium battery or AC220V/50Hz10
Dimensions :
365 × 300 × 220 (mm)
Attachment box :
400 × 370 × 200 (mm)
Description

SF6 Density Relay Calibration, SF6 Pressure Gauge, Fully Automatic Calibration, KS2001


SF6 switch is a high-voltage appliance widely used in power system, and the reliable operation of SF6 switch has become one of the most concerned issues in the power supply department. SF6 gas density relay is an important component used to monitor SF6 gas density change in SF6 switch body during operation, its performance directly affects the safety of SF6 switch operation. SF6 gas density relay running in the field because of infrequent action, after a period of time often appear inflexibility, poor contact contact and other phenomena, and some will appear density relay temperature compensation performance deteriorates, when the ambient temperature sudden change often lead to SF6 density relay misoperation. Therefore, DL/T596 "Preventive Test Procedures for Power Equipment" stipulates that each SF6 switch user should regularly verify SF6 gas density relays. From the actual operation situation, the SF6 density relay and pressure gauge in the field operation are also very necessary for regular calibration

Technical Specifications Table
Parameter Specification
Power Supply Lithium battery or AC220V/50Hz
Power Consumption 4W
Accuracy Level 0.2 level
Pressure Display Resolution 0.0001 MPa
Pressure Calibration Range 0 ~ 1.0 MPa
Contact Resistance Range 0 ~ 25 Ω
Resistance Measurement Accuracy ±5%FS
Resistance Display Resolution 1 mΩ
Temperature Measurement Range -50°C ~ 150°C
Temperature Measurement Accuracy ±0.5°C
Temperature Display Resolution 0.1°C
Verification Object Single alarm/block/overpressure, any combination of alarm + block + overpressure
Pressure Type Absolute pressure, relative pressure

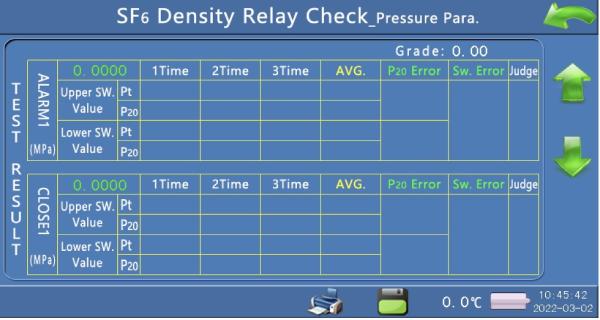

Display 800×600 graphic color LCD screen
Operation Mode Resistive touch screen
Printer High-speed thermal micro printer
Printing Format Chinese character report type printing
Storage Capacity Up to 150 test results
Dimensions Main unit: 380mm×320mm×180mm
Accessory box: 465mm×370mm×145mm
SF6 Gas Density Display Pressure at measured environment, equivalent pressure at 20°C
Weight 2.5 kg


SF6 Density Relay ChecSF6 Density Meter Check 0.2 Level

SF6 Density Relay ChecSF6 Density Meter Check 0.2 Level

SF6 Density Relay ChecSF6 Density Meter Check 0.2 Level


SF6 Density Relay ChecSF6 Density Meter Check 0.2 Level

SF6 Density Relay ChecSF6 Density Meter Check 0.2 Level


packing list


1. 1 host
2. 1 power cord
3. 1 high-pressure steel cylinder
4. One intake pipe (250cm)
5. Measure 1 trachea (250cm)
6. One vent pipe (80cm)
7. Transition joint (serial numbers ○ 1- ○ 14) 1 set
8. Inflatable adapter (serial number ○ 15) 1 piece
9. Public connector (serial number ○ 16) 1 piece
10. 16-core test wire
11. 2 rolls of printing paper
12. 2 rolls of raw material tape
13. 2 2A insurance tubes
14. 1 manual
