Dry Air Source, Producing Dry Air, Filtering Method To Produce Dry Air KS3000-200-CZ4
Dry Air Source, Producing Dry Air, Filtering Method To Produce Dry Air KS3000-200-CZ4
Specifications
Brand Name :
KSTONE
Model Number :
KS3000-80-cz4
Certification :
ISO9000
Place of Origin :
Shanghai
MOQ :
1
Price :
$5500-$5700
Payment Terms :
T/T
Supply Ability :
10
Delivery Time :
15 days
Packaging Details :
Wooden Box
Power Supply :
220V/50Hz
Auto Shut-Off :
Yes
Power Consumption :
7Kw
Operating Temperature :
5-35°C
Air Flow Rate :
200L/min
Humidity Control :
Digital control
Description
Dry Air Production Equipment, Filtration Technology, 30ppm Moisture Rating, Natural Air Filtration & Drying System KS3000-200-cz4-ws

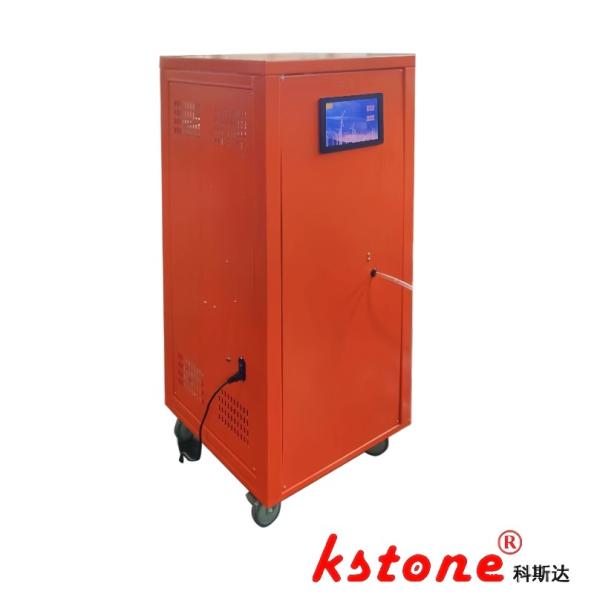

The KS3000-200-cz4 is engineered to filter moisture and particulates from ambient air, generating dry air with a moisture content below 30ppm (v). The dry air flow rate is customizable to meet specific operational needs. This equipment serves as a reliable air source for air-insulated cabinets and can be used to flush gas-insulated cabinets as a substitute for high-purity nitrogen. Equipped with a vacuum pumping function, it allows for optional expansion of the vacuum pump capacity.


The system comprises a silent compressor, moisture filtration unit, drying activation module, pressure adjustment system, and exhaust piping. It also includes a vacuum pump, anti-reflux device, and integrated pipelines. An optional online micro-water testing sensor (model: KS3000-80-CZ4-WS) can be installed to monitor when activation is required. The equipment supports both fully automatic and manual operation modes based on user preferences.

Key Technical Parameters

Item Technical Specification
Compressor Flow Rate 200L/min (optional)
Pressure Adjustment Range 0.1-6.0 Mpa (customizable low-pressure setpoints with fluctuation control)
Drying Activation Capacity 15m³ of qualified dry air per 30-minute regeneration cycle
Moisture Filtration Performance Outlet moisture controlled at 30-50ppmv under 70% inlet humidity
Vacuum Pump Rate 15m³/h
Dimensions (L×W×H) 1200×800×1620 mm
Weight ≤200 kg
Power Supply AC220V
Power Consumption ≤7kW
Moisture Absorption per Activation ≥1.0 kg (at <50-60ppm moisture level)

Operational Highlights

  • Pressure Control Mechanism: Example setting: Low pressure at 0.12 Mpa with 0.02 Mpa fluctuation. The compressor stops at 0.14 Mpa and restarts at 0.12 Mpa.
  • Regeneration Process: When outlet gas micro-water values exceed standards, disconnect the outlet pipeline, open the gas valve, activate the drying system for 30 minutes to restore adsorbent efficiency.


,
