SF6 N2 C4F7N Gas Blending System Mixing Device Industrial Grade
SF6 N2 C4F7N Gas Blending System Mixing Device Industrial Grade
Specifications
Brand Name :
KSTONE
Model Number :
KSLF-28/30WY20/NZ
Certification :
ISO9000
Place of Origin :
Shanghai
MOQ :
1
Price :
$2000-$100000
Payment Terms :
T/T
Supply Ability :
100
Delivery Time :
60 days
Packaging Details :
Carton / Wooden Box
Evacuation Pressure :
≤1mbar
Pressure Range :
0-10 bar
Operating Temperature :
-20°C to +50°C
Product Type :
Recovery Equipment
Gas Purification System :
Three-stage filtration system
Storage Temperature :
-40°C to +70°C
Vacuum Pump :
Double-stage rotary vane pump
Capacity :
1000 kg
Description
KSLF-28/30WY20/NZ Gas Mixing System – SF6/N2/C4F7N Blending Solution

System Overview

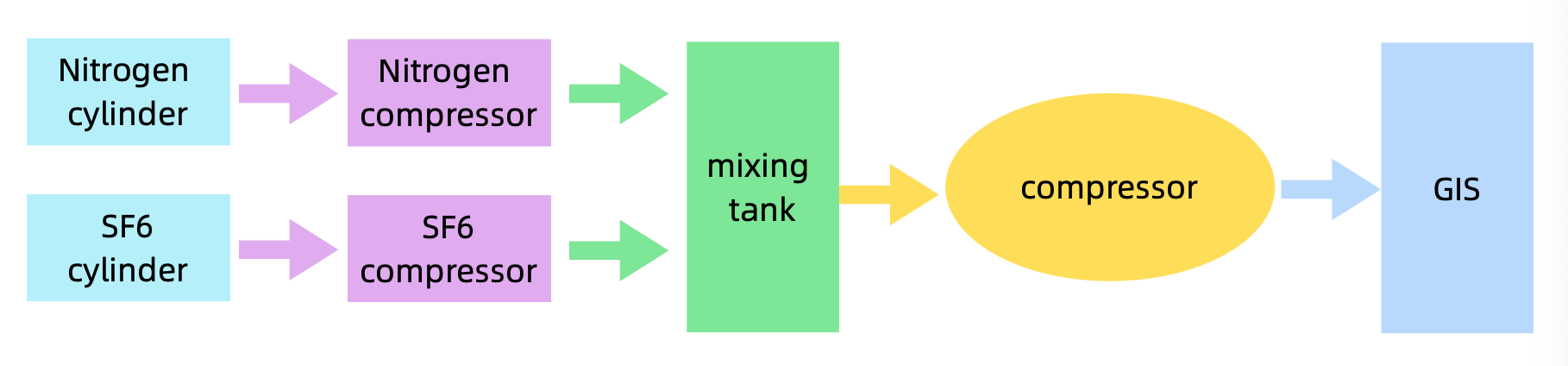

This industrial-grade gas mixing unit is designed for SF6/N2 mixture inflation, supporting applications like SF6/CF4, SF6/AIR, and C4F7N/CO2 blending. With a 10Nm³/h mixing capacity, it's optimized for State Grid China's environmental initiatives, such as 3:7 SF6/N2 ratio gas for GIS systems. The device integrates vacuum pumping, precise gas mixing, and charging functions via a piston compressor system, filtration module, and intelligent control valves.

Technical Configuration Table

Component SF6 Compressor N2 Compressor Mixed Gas Charging Compressor
Type Air-cooled Piston Air-cooled Piston Air-cooled Piston
Theoretical Flow Rate 14 m³/h 14 m³/h 30 m³/h
Max. Discharge Pressure 2 MPa 2 MPa 5 MPa
Allowable Working Pressure 1 MPa 1 MPa 1 MPa
Suction Pressure Range 53 kPa ~ 0.5 MPa 53 kPa ~ 0.5 MPa 53 kPa ~ 0.5 MPa
Max. Discharge Temperature 130°C 130°C 130°C
Lubrication System Oil-free Oil-free Oil-free
Power Rating 2.2 kW (3Φ 380V 50Hz) 2.2 kW (3Φ 380V 50Hz) 11 kW (3Φ 380V 50Hz)
Vacuum Pump 54 m³/h pumping rate - -
Ultimate Vacuum ≤10 Pa (PRO-200 oil lubricated) - -

Operational Capabilities

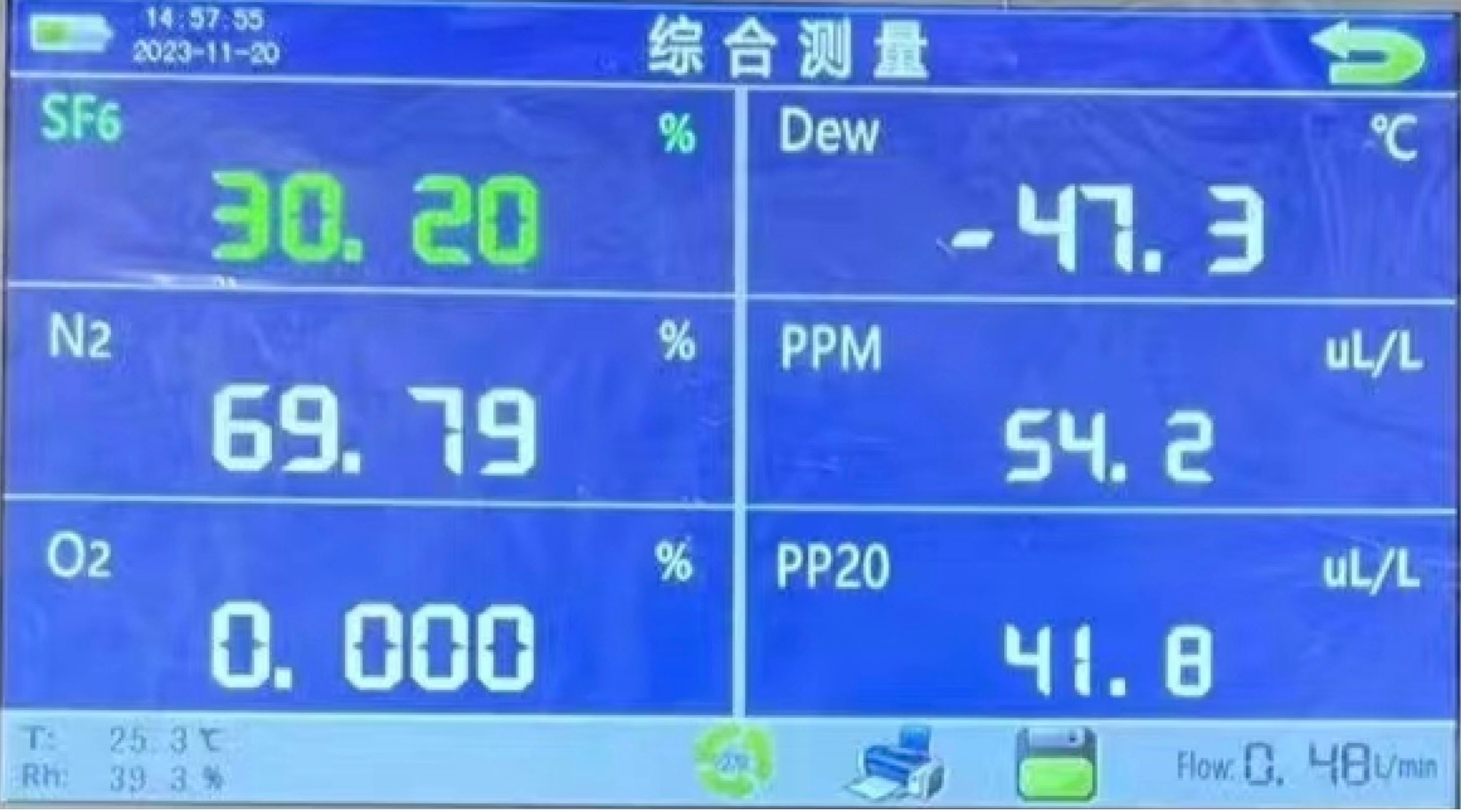

  • Gas Mixing Precision: Achieves 3:7 SF6/N2 ratio tolerance within ±1.5%
  • Environmental Applications: Supports low-GWP gas mixtures for GIS switchgear
  • System Functions: Vacuum pumping (≤10Pa), dynamic gas blending, high-pressure charging (up to 5MPa)

Equipment Specifications

Parameter Specification
Model Code KSLF-28/30WY20/NZ
Nominal Mixing Capacity 10 Nm³/h
Applicable Gas Mixtures SF6/N2, SF6/CF4, C4F7N/CO2, etc.
Control System PLC-based with touchscreen interface
Filtration Accuracy 0.1μm (particulate) / 3ppm (moisture)
Dimensions (L×W×H) 1800×1000×1500mm
Power Supply 3Φ 380V 50Hz, total 15.4kW
