SF6 vacuum inflating trolley， 500m³/h ，Anti Backflow,dilo
SF6 vacuum inflating trolley， 500m³/h ，Anti Backflow,dilo
Specifications
Brand Name :
KSTONE
Model Number :
KSCZ-500/100
Certification :
ISO9000
Place of Origin :
Shanghai
MOQ :
1
Price :
$2000-$100000
Payment Terms :
T/T
Supply Ability :
10 per year
Delivery Time :
45 days
Packaging Details :
Carton / Wooden Box
Power :
380v50Hz
Max Vacuum Pressure :
6.2*10-2pa
Max Flow Rate :
500m3/h
Origin :
China
Warranty :
1 Year
Valve Ports :
2
enclosure :
Two 10m high-pressure hoses
Description

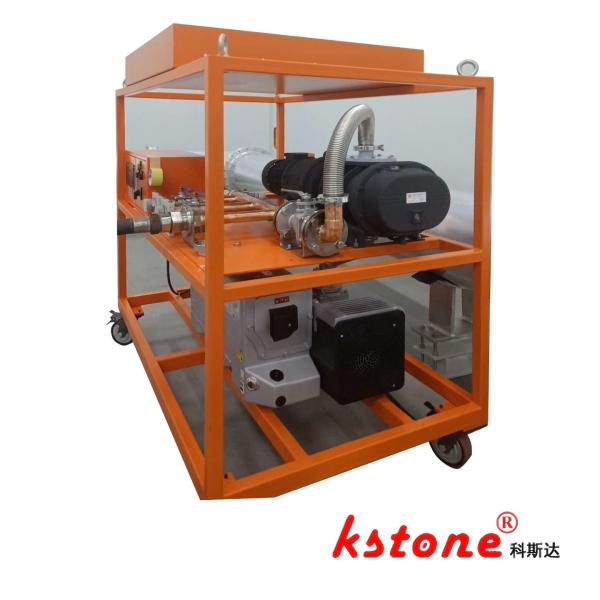

KSCZ-500/100 Industrial Vacuum Unit - 500m³/h Roots Pump, 6×10⁻² Pa Ultimate Vacuum, Anti-Backflow
The KSCZ - 500/100 vacuum unit is specially engineered for industrial vacuum applications. It combines a 500 m³/h Roots pump with a 100 m³/h front - end pump, and is equipped with anti - backflow oil protection to avoid contamination. Featuring two M27 valve ports, it enables multi - channel connections. The system can reach an ultimate vacuum degree of 6×10⁻² Pa. Powered by 380V AC at 50Hz, it comes with two 10m DN20 pipelines (with M27 threads) as standard. Customers have the option to select vacuum pumps from top international brands such as Leybold or Busch, or choose cost - efficient Chinese models. Moreover, the quantity and length of pipelines can be customized to fulfill specific project needs.

Technical Parameter Table
Parameter Description
Model KSCZ - 500/100
Pump Configuration 500 m³/h Roots pump + 100 m³/h front - end pump
Anti - Backflow Protection Oil - based design to prevent contamination
Valve Ports 2× M27 threaded ports for multi - channel connection
Ultimate Vacuum 6×10⁻² Pa
Power Supply 380V AC, 50Hz
Standard Accessories 2×10m DN20 pipelines (with M27 threads)
Pump Brand Options Leybold, Busch, or Made - in - China models
Pipeline Customization Adjustable quantity and length
