Specifications
Life Cycle :
100000 cycles
Voltage & Current :
250V 16A
Contact type :
normally closed or normally open
Switch type :
auto reset or manual reset
temperature range :
0-250℃
Brand Name :
HENGHAO
Model Number :
H31
Certification :
UL CQC TUV ROHS
Place of Origin :
DONGGUAN,CHINA
MOQ :
1000PCS
Price :
US$0.2-0.3 PER PC
Payment Terms :
TT FOB SZ
Supply Ability :
1000000PCS PER MONTH
Delivery Time :
7-10 WORKING DAYS
Packaging Details :
1650 PCS PER CARTON
Description
Temperature Controlled Switch KSD301 250V16A Temperature Controller
KSD301 Bimetal Thermostat Temperature Controlled Switch with Normally Closed or Open Auto or Manual Reset UL/CQC/TUV/RoHS Certified

The KSD series thermostat operates on the principle of bimetal discs that snap into action when temperature changes occur. This snap action activates the internal contacts, ultimately connecting or disconnecting the circuit. Key features include fixed working temperature settings, reliable snap action, minimal flashover, extended operational lifespan, and reduced radio interference.

KSD301 Thermostat Specifications
KSD301 Bimetal Thermostat Temperature Controlled Switch with Normally Closed or Open Auto or Manual Reset UL/CQC/TUV/RoHS Certified KSD301 Bimetal Thermostat Temperature Controlled Switch with Normally Closed or Open Auto or Manual Reset UL/CQC/TUV/RoHS Certified
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery and Action Temperature Difference 0 to 25 degrees, or according to client's request
Temperature Deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit Resistance ≤50mΩ (Initial value)
Insulation Resistance AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life Cycle ≥100,000 times
Contact Type Normally closed or Normally open

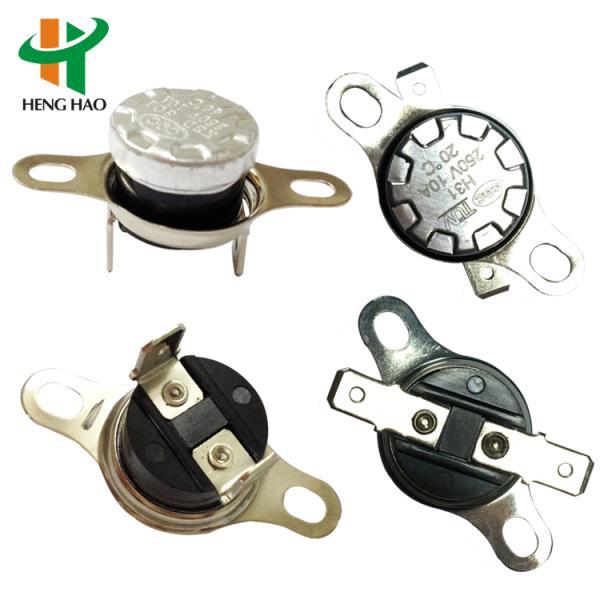

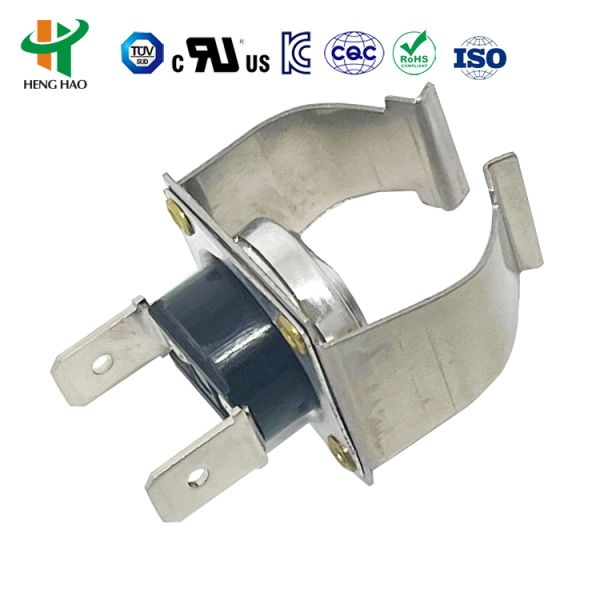

Mounting Bracket Types Movable or immovable
Terminal Type a. Terminal type: 187 series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
Housing Plastic or ceramic
Temperature Sensor Face Aluminum cap or copper head
KSD301 Bimetal Thermostat Temperature Controlled Switch with Normally Closed or Open Auto or Manual Reset UL/CQC/TUV/RoHS Certified
KSD301 Auto Reset vs Manual Reset Types

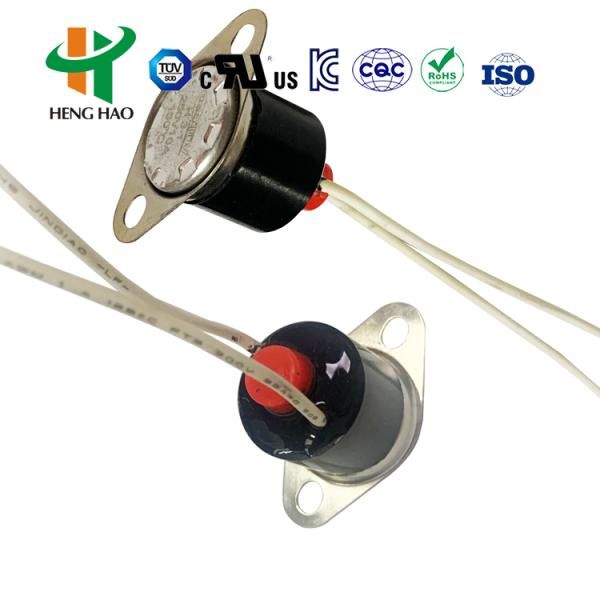

Manual Reset Type: Temperature sensing is achieved through bimetallic strips. When temperature reaches the action range, the mechanism snaps quickly and the movable disc disconnects. The contacts cannot reset automatically when temperature decreases to the fixed point; instead, the circuit must be manually reconnected by pressing the reset button to restore contact functionality.

Important Notes for Manual Reset Type:
  • This thermostat can reset when temperature declines 20°C after snap action by pressing the reset button with 4-6 N force (avoid excessive strength)
  • Ensure a minimum distance of 20.4mm between reset button and close cover for normal functionality

Auto Reset Type: Utilizes bimetallic strip temperature sensing components. When temperature reaches the action range, the mechanism snaps quickly and the movable disc disconnects. When temperature decreases to the fixed point, the contact point automatically resets and resumes operation without manual intervention.

KSD301 Bimetal Thermostat Applications
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
0℃±5℃ -10℃±5℃ 110℃±5℃ 90℃±10℃ 220℃±5℃ 190℃±10℃
5℃±5℃ -5℃±5℃ 115℃±5℃ 95℃±10℃ 225℃±5℃ 195℃±10℃
10℃±5℃ 0℃±5℃ 120℃±5℃ 100℃±10℃ 230℃±5℃ 200℃±10℃
15℃±5℃ 5℃±5℃ 125℃±5℃ 105℃±10℃ 235℃±5℃ 205℃±10℃
20℃±5℃ 5℃±5℃ 130℃±5℃ 110℃±10℃ 240℃±5℃ 210℃±10℃
25℃±5℃ 10℃±5℃ 135℃±5℃ 115℃±10℃ 245℃±5℃ 215℃±10℃
30℃±5℃ 15℃±5℃ 140℃±5℃ 120℃±10℃ 250℃±5℃ 220℃±10℃
35℃±5℃ 20℃±5℃ 145℃±5℃ 125℃±10℃ 255℃±5℃ 225℃±10℃
40℃±5℃ 25℃±5℃ 150℃±5℃ 130℃±10℃ 260℃±5℃ 230℃±10℃
45℃±5℃ 30℃±5℃ 155℃±5℃ 130℃±10℃ 265℃±5℃ 235℃±10℃
50℃±5℃ 35℃±5℃ 160℃±5℃ 135℃±10℃ 270℃±5℃ 240℃±10℃
55℃±5℃ 40℃±5℃ 165℃±5℃ 140℃±10℃ 275℃±5℃ 245℃±10℃
60℃±5℃ 45℃±5℃ 170℃±5℃ 145℃±10℃ 280℃±5℃ 250℃±10℃
65℃±5℃ 50℃±5℃ 175℃±5℃ 150℃±10℃ 285℃±5℃ 255℃±10℃
70℃±5℃ 55℃±5℃ 180℃±5℃ 155℃±10℃ 290℃±5℃ 260℃±10℃
75℃±5℃ 60℃±5℃ 185℃±5℃ 155℃±10℃ 295℃±5℃ 265℃±10℃
80℃±5℃ 65℃±5℃ 190℃±5℃ 160℃±10℃ 300℃±5℃ 270℃±10℃
85℃±5℃ 70℃±5℃ 195℃±5℃ 165℃±10℃ Or according to client's request
90℃±5℃ 75℃±5℃ 200℃±5℃ 170℃±10℃
Certifications

This product holds UL, CQC, TUV and RoHS certification approvals.
