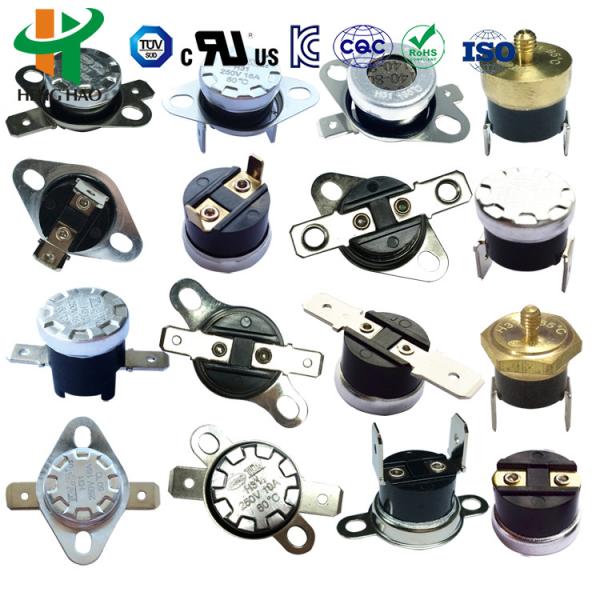

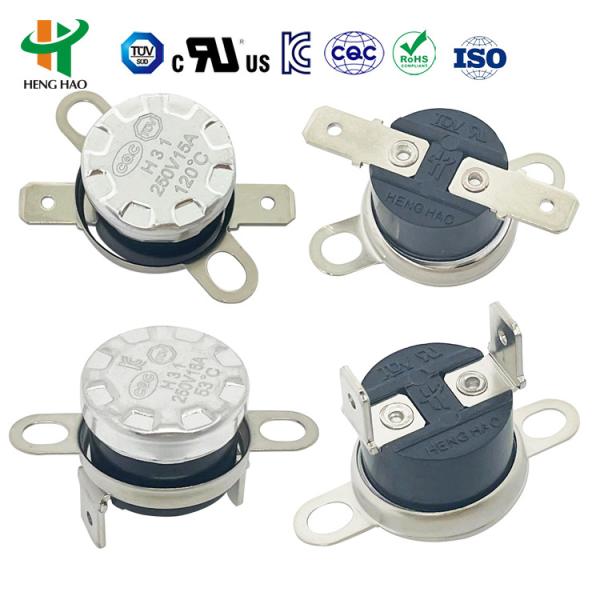

Ksd301 Ksd302 Ksd303 250V10A Temperature Protector Thermal Fuse Temperature Controller
Ksd301 Ksd302 Ksd303 250V10A Temperature Protector Thermal Fuse Temperature Controller
Ksd301 Ksd302 Ksd303 250V10A Temperature Protector Thermal Fuse Temperature Controller
Ksd301 Ksd302 Ksd303 250V10A Temperature Protector Thermal Fuse Temperature Controller
Ksd301 Ksd302 Ksd303 250V10A Temperature Protector Thermal Fuse Temperature Controller
Ksd301 Ksd302 Ksd303 250V10A Temperature Protector Thermal Fuse Temperature Controller
Ksd301 Ksd302 Ksd303 250V10A Temperature Protector Thermal Fuse Temperature Controller
Ksd301 Ksd302 Ksd303 250V10A Temperature Protector Thermal Fuse Temperature Controller
Ksd301 Ksd302 Ksd303 250V10A Temperature Protector Thermal Fuse Temperature Controller
Ksd301 Ksd302 Ksd303 250V10A Temperature Protector Thermal Fuse Temperature Controller
Ksd301 Ksd302 Ksd303 250V10A Temperature Protector Thermal Fuse Temperature Controller
Ksd301 Ksd302 Ksd303 250V10A Temperature Protector Thermal Fuse Temperature Controller
Specifications
Brand Name :
HENGHAO
Model Number :
H31
Certification :
UL CQC TUV KC
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
USD 0.2~0.3PCS
Payment Terms :
T/T
Supply Ability :
1000000PCS PER MONTH
Delivery Time :
10~15
Packaging Details :
2000PCS/CARTON
Life Cycle :
100000 cycles
Voltage & Current :
250V 16A
Contact type :
normally closed or normally open
Switch type :
auto reset or manual reset
temperature range :
0-250℃
Case :
metal
Description
KSD301 KSD302 KSD303 250V10A Temperature Protector Thermal Fuse Temperature Controller

The KSD series thermostat operates on the principle of bimetal discs that snap into action when temperature changes occur. This snap action activates the internal contacts, enabling circuit connection or disconnection. Key features include fixed working temperature, reliable snap action, minimal flashover, extended service life, and reduced radio interference.

Ksd301 Ksd302 Ksd303 250V10A Temperature Protector Thermal Fuse Temperature Controller
KSD302 Thermostat Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery and Action Temperature Difference 0 to 25 degrees, or according to client's request
Temperature Deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit Resistance ≤50mΩ (Initial value)
Insulation Resistance AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life Cycle ≥100000 times
Contact Type Normally closed or Normally open
Mounting Bracket Two kinds: movable or immovable
Terminal Type a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
Housing Plastic or ceramic
Temperature Sensor Face Aluminum cap or copper head
KSD302 Reset Types
Manual Reset Type:

Temperature sensing components consist of bimetallic strip. When temperature reaches the action range, it snaps quickly and the movable disc disconnects. The contact point cannot reset automatically when temperature declines - reconnection requires pressing the reset button. This enables circuit restart through manual intervention.

  • Reset occurs when temperature declines 20°C after snap action by pressing reset button
  • Recommended force: 4-6 N (avoid excessive strength)
  • Minimum distance between reset button and close cover: 20.4mm for normal function
Auto Reset Type:

Temperature sensing components consist of bimetallic strip. When temperature reaches the action range, it snaps quickly and the movable disc disconnects. The contact point automatically resets and resumes operation when temperature declines to the fixed reset point.

Applications

Used as temperature control for household electric appliances including:

  • Coffee pots
  • Automatic toasters
  • Laminators
  • Electric water pots
  • Steam guns
  • Steam irons
  • Wind warmers
  • Microwave ovens
  • Water dispensers
Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
0℃±5℃ -10℃±5℃ 110℃±5℃ 90℃±10℃ 220℃±5℃ 190℃±10℃
5℃±5℃ -5℃±5℃ 115℃±5℃ 95℃±10℃ 225℃±5℃ 195℃±10℃
10℃±5℃ 0℃±5℃ 120℃±5℃ 100℃±10℃ 230℃±5℃ 200℃±10℃
15℃±5℃ 5℃±5℃ 125℃±5℃ 105℃±10℃ 235℃±5℃ 205℃±10℃
20℃±5℃ 5℃±5℃ 130℃±5℃ 110℃±10℃ 240℃±5℃ 210℃±10℃
25℃±5℃ 10℃±5℃ 135℃±5℃ 115℃±10℃ 245℃±5℃ 215℃±10℃
30℃±5℃ 15℃±5℃ 140℃±5℃ 120℃±10℃ 250℃±5℃ 220℃±10℃
35℃±5℃ 20℃±5℃ 145℃±5℃ 125℃±10℃ 255℃±5℃ 225℃±10℃
40℃±5℃ 25℃±5℃ 150℃±5℃ 130℃±10℃ 260℃±5℃ 230℃±10℃
45℃±5℃ 30℃±5℃ 155℃±5℃ 130℃±10℃ 265℃±5℃ 235℃±10℃
50℃±5℃ 35℃±5℃ 160℃±5℃ 135℃±10℃ 270℃±5℃ 240℃±10℃
55℃±5℃ 40℃±5℃ 165℃±5℃ 140℃±10℃ 275℃±5℃ 245℃±10℃
60℃±5℃ 45℃±5℃ 170℃±5℃ 145℃±10℃ 280℃±5℃ 250℃±10℃
65℃±5℃ 50℃±5℃ 175℃±5℃ 150℃±10℃ 285℃±5℃ 255℃±10℃
70℃±5℃ 55℃±5℃ 180℃±5℃ 155℃±10℃ 290℃±5℃ 260℃±10℃
75℃±5℃ 60℃±5℃ 185℃±5℃ 155℃±10℃ 295℃±5℃ 265℃±10℃
80℃±5℃ 65℃±5℃ 190℃±5℃ 160℃±10℃ 300℃±5℃ 270℃±10℃
85℃±5℃ 70℃±5℃ 195℃±5℃ 165℃±10℃ Or according to client's request
90℃±5℃ 75℃±5℃ 200℃±5℃ 170℃±10℃
Certifications

The product has UL, CQC, TUV and RoHS certification approval.
