250V 10A Bimetal Thermostat Temperature Control 17AM033A5 17AM036A5 17AM0378A3
250V 10A Bimetal Thermostat Temperature Control 17AM033A5 17AM036A5 17AM0378A3
250V 10A Bimetal Thermostat Temperature Control 17AM033A5 17AM036A5 17AM0378A3
250V 10A Bimetal Thermostat Temperature Control 17AM033A5 17AM036A5 17AM0378A3
250V 10A Bimetal Thermostat Temperature Control 17AM033A5 17AM036A5 17AM0378A3
250V 10A Bimetal Thermostat Temperature Control 17AM033A5 17AM036A5 17AM0378A3
250V 10A Bimetal Thermostat Temperature Control 17AM033A5 17AM036A5 17AM0378A3
250V 10A Bimetal Thermostat Temperature Control 17AM033A5 17AM036A5 17AM0378A3
250V 10A Bimetal Thermostat Temperature Control 17AM033A5 17AM036A5 17AM0378A3
250V 10A Bimetal Thermostat Temperature Control 17AM033A5 17AM036A5 17AM0378A3
250V 10A Bimetal Thermostat Temperature Control 17AM033A5 17AM036A5 17AM0378A3
250V 10A Bimetal Thermostat Temperature Control 17AM033A5 17AM036A5 17AM0378A3
Specifications
Brand Name :
HENG HAO
Model Number :
17AM
Certification :
UL TUV CQC
Place of Origin :
CHINA
MOQ :
1000pcs
Price :
USD
Payment Terms :
TT FOB SZ, T/T
Supply Ability :
10000000pcs per month
Delivery Time :
10WORKDAYS
Packaging Details :
5000pcs per carton
Rating and Currents: :
AC-125V 15A; AC-250V 10A, DC-16V 20A
life time :
10000 times
use for :
17AM thermal protector is applicable to all kinds of Motor, commentator for fluorescent lamp, transformer, Laminator, lamps and lighting, transformers, cover sealing machine & various of household appliances
switch type :
auto reset normally closed type
Name :
Thermal overload protection switch
Operating temperature range :
50-180°C
Description
250V 10A Bimetal Thermostat Temperature Control 17AM033A5 17AM036A5 17AM0378A3
Product Overview

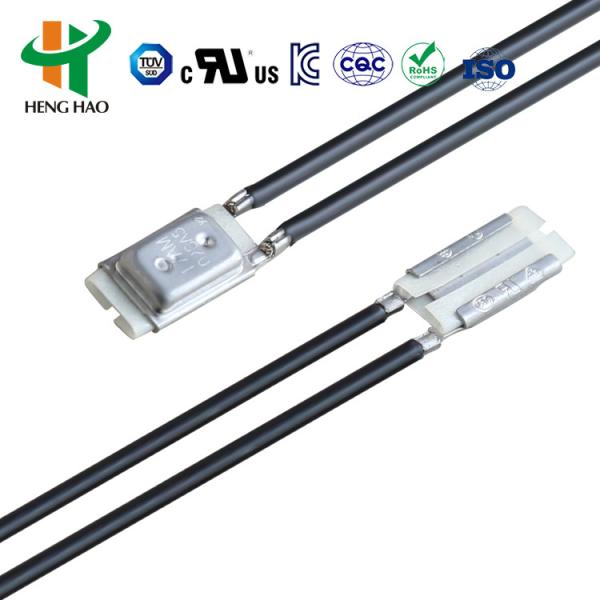

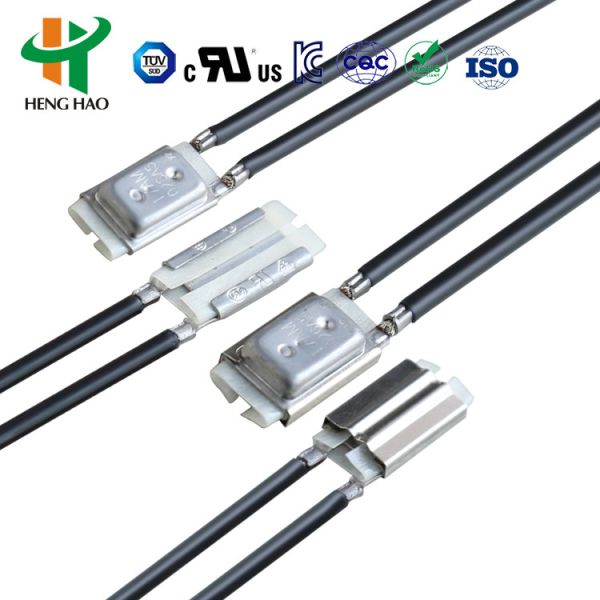

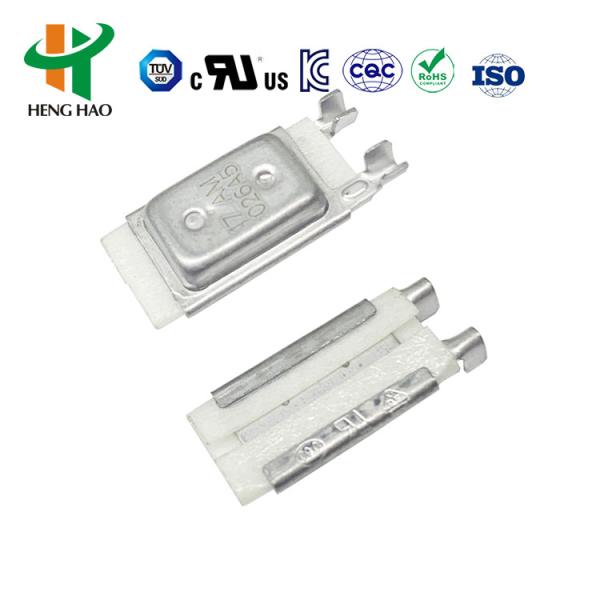

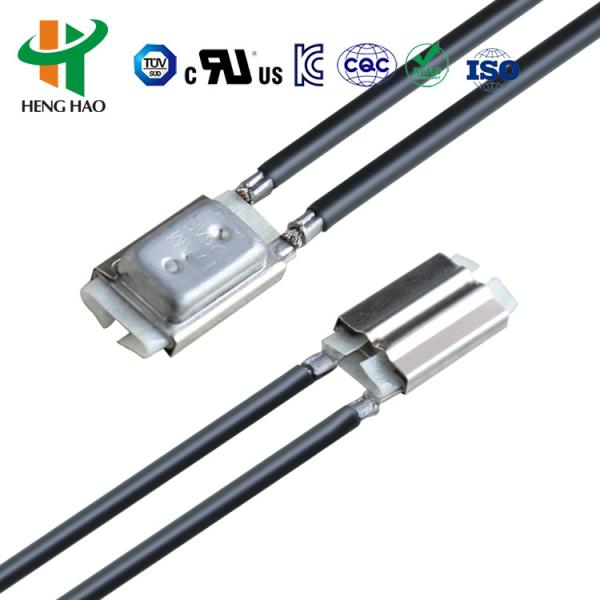

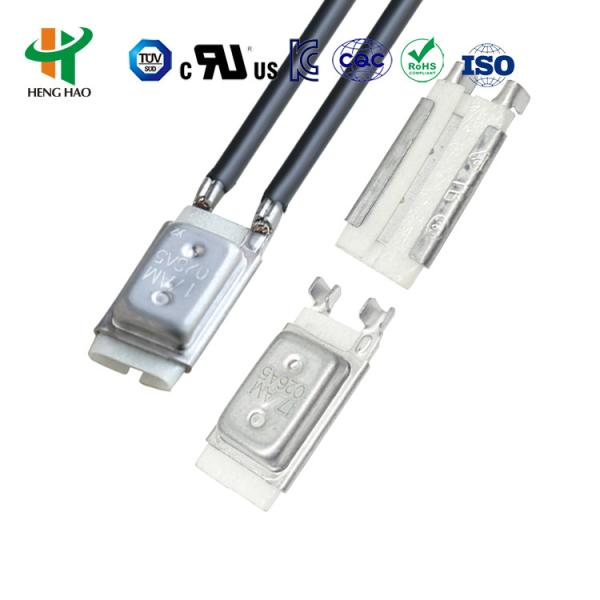

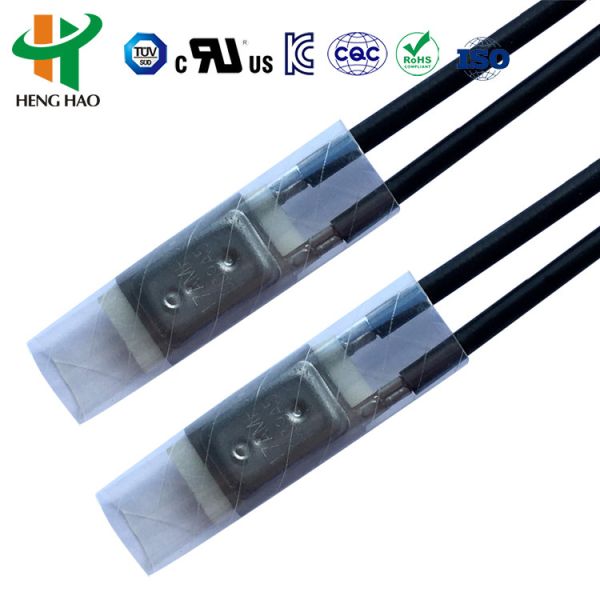

The 17AM series is an excess-current thermal protector with compact design, featuring quick and accurate action. We can rivet different types of leads according to customers' requirements.

250V 10A Bimetal Thermostat Temperature Control 17AM033A5 17AM036A5 17AM0378A3

Download Technical Documentation (BH-B2D BH-A1D.pdf)

Technical Specifications
  • Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A
  • Contact life cycles: AC-125V 15A, AC-250V 10A more than 10,000 Cycles; AC-125V 5A more than 100,000 Cycles
  • Operating temperature range: 50-180°C
  • Temperature tolerance: ±2°C±3°C±5°C
  • Reset temperature: 10~45 degrees in off temperature decline
  • Working times: Over 10,000 times
Product Coding System
17AM _XXX_ _A / B_ _5_ _A,B,C,D ………..Z

(17AMH): The number of product series
(XXX): Trip off temperature in °C Code
(A / B): A: Terminals in the same direction / B: Terminals in the opposite direction
(5): OFF Temperature Tolerance Code
(A, B, C, D………..Z): Different type of connecting wire
Trip Off Temperature Codes
Degrees °C Code Degrees °C Code Degrees °C Code Degrees °C Code
55°C01890°C025125°C032160°C039
60°C01995°C026130°C033165°C040
65°C020100°C027135°C034170°C041
70°C021105°C028140°C035175°C042
75°C022110°C029145°C036180°C043
80°C023115°C030150°C037
85°C024120°C031155°C038
Application & Protection Function

The thermal protection switch is normally located on the A/C compressor housings. It is used to prevent compressor damage (overheat) through internal friction. This switch senses the compressor case temperature and once this case temperature reaches a predetermined figure, the electrical circuit to the compressor is interrupted.

250V 10A Bimetal Thermostat Temperature Control 17AM033A5 17AM036A5 17AM0378A3

How does a thermal protection switch protect against?

Right Answer is: Thermal protection switch protects against the overload. To create this type of overload, a bra shaft is placed inside a brass tube. In these overload relays (also referred to as "solder pot relays"), the motor current passes through a small heater winding.

Product Drawings
250V 10A Bimetal Thermostat Temperature Control 17AM033A5 17AM036A5 17AM0378A3 250V 10A Bimetal Thermostat Temperature Control 17AM033A5 17AM036A5 17AM0378A3 250V 10A Bimetal Thermostat Temperature Control 17AM033A5 17AM036A5 17AM0378A3
Applications

All kinds of motors, commutators for fluorescent lamps, transformers, laminators, lamps and lighting, transformers, cover sealing machines & various household appliances.

Additional Information

17AMH Thermal protector / 17AMH Thermostat / 17AM temperature protector / instead of KLIXON 17AM thermal protector

17AMH thermostat's Principle and structure | 17AM Product Information
