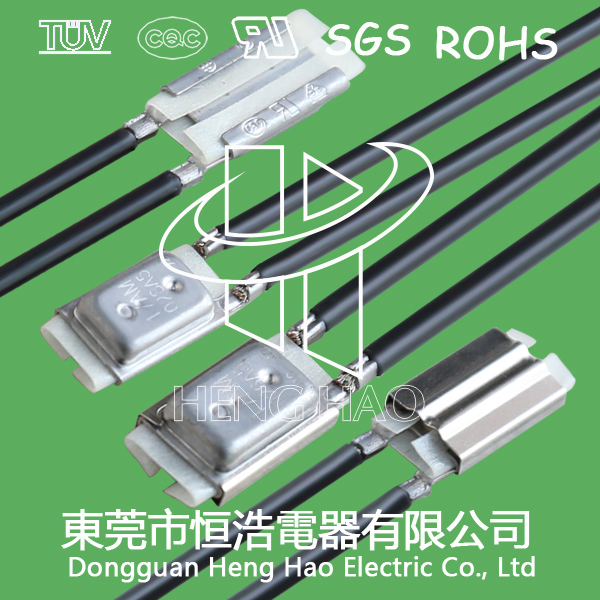

17amh Thermal Protector Thermostat 17am CQC TUV UL Temperature Controller Switch Sensor

Specifications

Certification :

TUV

MOQ :

1,000

Price :

0.35

Model NO. :

17AM

Type :

Temperature Sensor

Control Method :

Mechanical

Material :

Stainless Steel

Life Cycle :

10000 Times

Electrical Rating :

AC-125V 15A; AC-250V 10A, DC-16V 20A

Contact Life Cycles :

AC-125V 15A, AC-250V 10A more than 10,000 Cycles; AC-125V 5A more than 100,000 Cycles

Operating Temperature :

50-180° C

Temperature Tolerance :

± 2° C± 3° C± 5° C

Reset Temperature :

10~45 degrees in off temperature decline

Working Times :

Over 10000 times

Trip Temperature Code :

55° C (18) to 180° C (43)

Terminal Direction :

A: Same direction / B: Opposite direction

OFF Tolerance Code :

Connecting Wire Type :

A, B, C, D...Z

Description

17AMH Thermal protector / 17AMH Thermostat / 17AM temperature protector / instead of KLIXON 17AM thermal protector
1. 17AMH thermostat's Principle and structure
17AMH is an excess-current thermal protector with compact design, Quick and accurate action, we can rivet different types of leads according to customers' requirements.
2. 17AMH thermal protector's Specification
2.1. Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A
2.2. Contact life cycles: AC-125V 15A, AC-250V 10A more than 10, 000 Cycles; AC-125V 5A more than 100, 000 Cycles
2.3. Operating temperature range: 50-180° C
2.4. Temperature tolerance: ± 2° C± 3° C± 5° C
2.5. Reset temperature: 10~45 degrees in off temperature decline.
2.6. Working times: Over 10000 times
2.7. Code syste
17AMH XXX A / B 5 A, B, C, D^^^...Z
(17AMH): The number of product series
(XXX): Trip off temperature in ° C Code
(A / B): A: Terminals in the same direction / B: Terminals in the opposite direction

(5): OFF Temperature Tolerance Code
(A, B, C, D^^^...Z): Different type of connecting wire

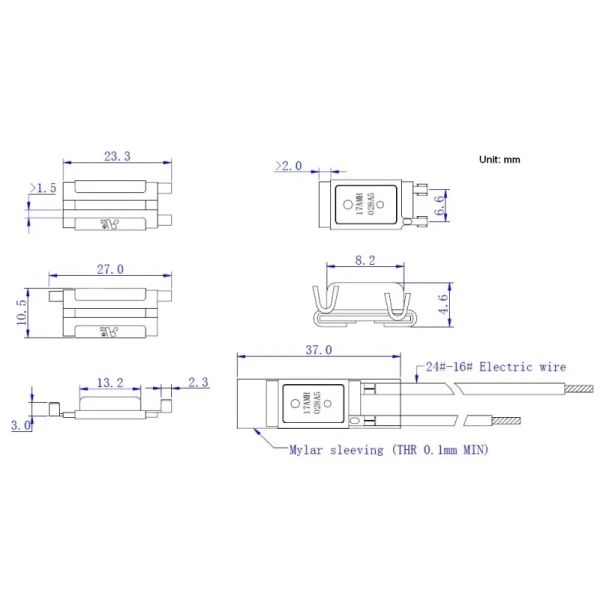

2.9. Product Drawing

3.17AMH temperature protector's Application
17AMH thermal protector is applicable to all kinds of Motor, commutator for fluorescent lamp, tansformer, Laminator, lamps and lighting, transformers, cover sealing machine & various of household appliances
4.17AMH thermostat's A/° C and A/T Graph:

The product UL, CQC, VDE and RoHS certification approval.
Thermostat, thermal protector supplier, thermal protector, Thermostat supplier
Thermostat manufacturer

Trip off temperature in & deg; C Code
Degrees & deg; C	Code	Degrees & deg; C	Code	Degrees & deg; C	Code	Degrees & deg; C	Code
55& deg; C	18	90& deg; C	25	125& deg; C	32	160& deg; C	39
60& deg; C	19	95& deg; C	26	130& deg; C	33	165& deg; C	40
65& deg; C	20	100& deg; C	27	135& deg; C	34	170& deg; C	41
70& deg; C	21	105& deg; C	28	140& deg; C	35	175& deg; C	42
75& deg; C	22	110& deg; C	29	145& deg; C	36	180& deg; C	43
80& deg; C	23	115& deg; C	30	150& deg; C	37
85& deg; C	24	120& deg; C	31	155& deg; C	38
