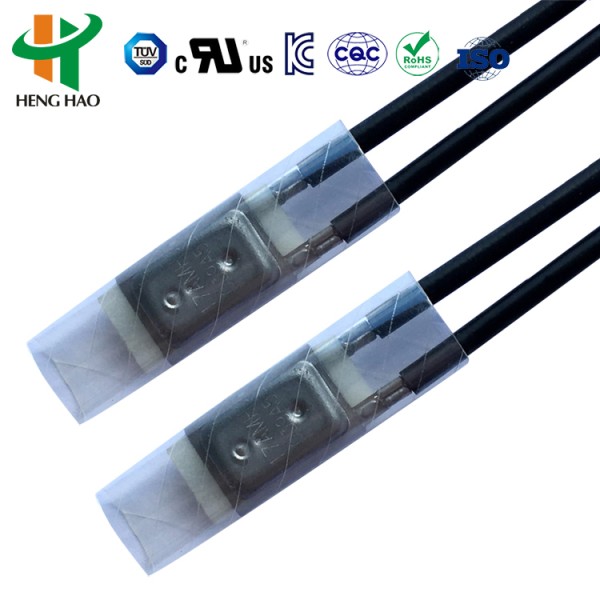

Temperature Thermostat Manufacturer 17am Thermal Protector

Specifications

MOQ :

1,000

Price :

0.26

Model NO. :

17AMH

Type :

Temperature Sensor

Control Method :

Mechanical

Material :

Steel Plastic

Life Cycle :

10000 Times

Voltage & Current :

250V 10A

Temp. Range :

50-180c

Contact Type :

Nc Tyoe

Electrical Rating :

AC-125V 15A; AC-250V 10A, DC-16V 20A

Contact Life Cycles :

AC-125V 15A, AC-250V 10A more than 10,000 Cycles; AC-125V 5A more than 100,000 Cycles

Temperature Tolerance :

±2°C±3°C±5°C

Reset Temperature :

10~45 degrees in off temperature decline

Working Times :

Over 10000 times

Trip Off Temperature :

55-180°C

Terminal Direction :

A: Terminals in the same direction / B: Terminals in the opposite direction

Description

17AMH Thermal protector / 17AMH Thermostat / 17AM temperature protector / instead of KLIXON 17AM thermal protector

17AMH thermostat's Principle and structure

17AM is an excess-current thermal protector with compact design, Quick and accurate action, we can rivet different types of leads according to customers' requirements.

17AM thermal protector's Specification
1. Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A
2. Contact life cycles: AC-125V 15A, AC-250V 10A more than 10,000 Cycles; AC-125V 5A more than 100,000 Cycles
3. Operating temperature range: 50-180°C
4. Temperature tolerance: ±2°C±3°C±5°C
5. Reset temperature: 10~45 degrees in off temperature decline.
6. Working times: Over 10000 times
7. Code syste

17AM XXX A / B 5 A,B,C,D...…..Z
(17AMH): The number of product series
(XXX): Trip off temperature in °C Code
(A / B): A: Terminals in the same direction / B: Terminals in the opposite direction
(5): OFF Temperature Tolerance Code
(A, B, C, D...…..Z): Different type of connecting wire

1. Trip off temperature in °C Code

Degrees °C	Code	Degrees °C	Code	Degrees °C	Code	Degrees °C	Code
55°C	018	90°C	025	125°C	032	160°C	039
60°C	019	95°C	026	130°C	033	165°C	040
65°C	020	100°C	027	135°C	034	170°C	041
70°C	021	105°C	028	140°C	035	175°C	042
75°C	022	110°C	029	145°C	036	180°C	043
80°C	023	115°C	030	150°C	037
85°C	024	120°C	031	155°C	038

1. 17AM temperature protector's Application

17AM thermal protector is applicable to all kinds of Motor, commentator for fluorescent lamp, transformer, Laminator, lamps and lighting, transformers, cover sealing machine & various of household appliances
