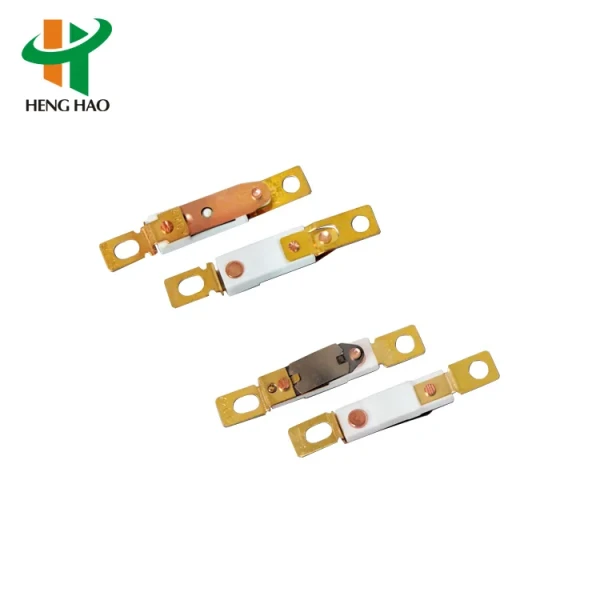

Thermostat for Transformer 17am Thermal Protector 250V 10A Temperature Switch

Specifications

MOQ :

1,000

Price :

0.2

Model NO. :

17AMH

Material :

Steel Plastic

Life Cycle :

10000 Times

Electrical Rating :

AC-125V 15A; AC-250V 10A, DC-16V 20A

Contact Life :

AC-125V 15A, AC-250V 10A more than 10,000 Cycles; AC-125V 5A more than 100,000 Cycles

Temperature Range :

50-180°C

Temperature Tolerance :

±2°C±3°C±5°C

Reset Temperature :

10~45 degrees in off temperature decline

Working Times :

Over 10000 times

Trip Off Temperature :

55°C to 180°C

Terminal Direction :

A: same direction / B: opposite direction

OFF Tolerance Code :

Connecting Wire Types :

A, B, C, D...Z

Transport Package :

1000 PCS Per Carton

Production Capacity :

100000000000 Pieses /Year

Description

Thermostat for Transformer 17AM thermal protector 250v 10a temperature switch

17AMH is an excess-current thermal protector with compact design, Quick and accurate action, we can rivet different types of leads according to customers' requirements.

17AM thermal protector's Specification
1. Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A
2. Contact life cycles: AC-125V 15A, AC-250V 10A more than 10,000 Cycles; AC-125V 5A more than 100,000 Cycles
3. Operating temperature range: 50-180°C
4. Temperature tolerance: ±2°C±3°C±5°C
5. Reset temperature: 10~45 degrees in off temperature decline.
6. Working times: Over 10000 times
7. Code syste

17AM XXX A / B 5 A,B,C,D...…..Z
(17AMH): The number of product series
(XXX): Trip off temperature in °C Code
(A / B): A: Terminals in the same direction / B: Terminals in the opposite direction
(5): OFF Temperature Tolerance Code
(A, B, C, D...…..Z): Different type of connecting wire

1. Trip off temperature in °C Code

Degrees °C	Code	Degrees °C	Code	Degrees °C	Code	Degrees °C	Code
55°C	018	90°C	025	125°C	032	160°C	039
60°C	019	95°C	026	130°C	033	165°C	040
65°C	020	100°C	027	135°C	034	170°C	041
70°C	021	105°C	028	140°C	035	175°C	042
75°C	022	110°C	029	145°C	036	180°C	043
80°C	023	115°C	030	150°C	037
85°C	024	120°C	031	155°C	038

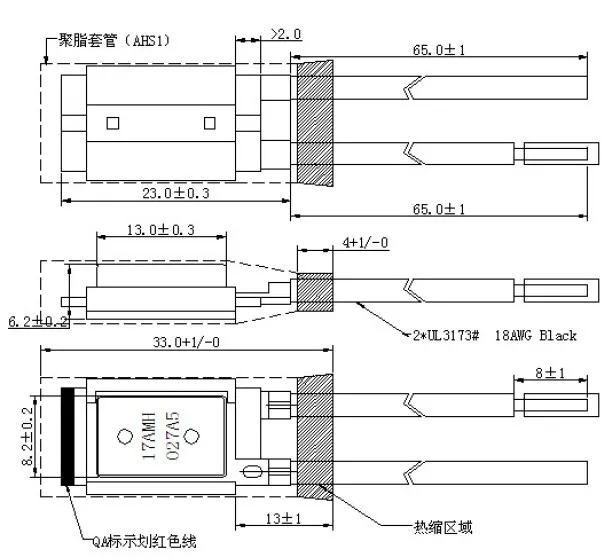

1. Product Drawing

Application / Models
17AM thermal protector is applicable to all kinds of Motor, commutator for fluorescent lamp, tansformer, Laminator, lamps and lighting, transformers, cover sealing machine & various of household appliances
