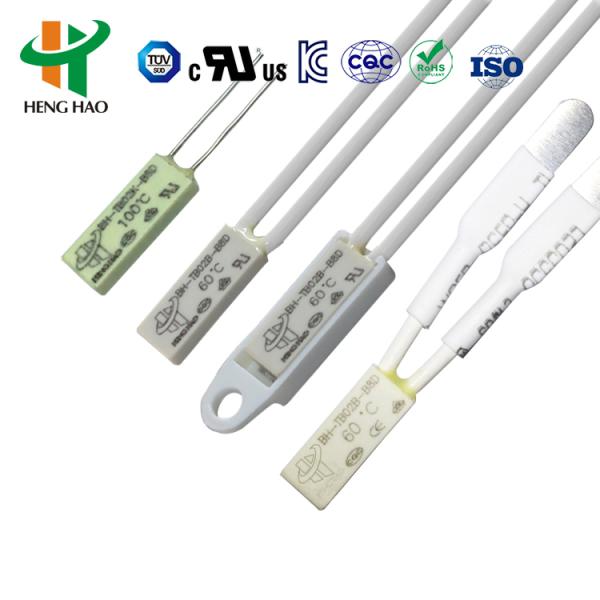

Bimetallic Strip Thermal Overload Protector Switch For Electric Heater
BW thermal protectors for electric heater
Principle and Structure
Bimetallic Strip Thermal Overload Protector Switch For Electric Heater
BW series thermal protector uses a specific geometry of bimetallic strip that, without auxiliary mechanisms, directly senses mild heating current. The bimetallic element rapidly changes state to automatically drive contact cutting and process circuit functions, providing both overheating and overload protection.
Applications
Widely applied in electric motors and electrical equipment including: electric blankets, hot walls, washer motors, soybean milk machine motors, fan motors, air conditioner motors, fractional motors, DC motors, AC brushless motors, water pumps, transformers, rectifiers, lighting systems, rechargeable batteries, and electric heating appliances.
Specifications
  • Contact type: Normally closed and Normally open
  • Electrical rating: 10A/AC120V; 8A/AC250V; 10A/AC250V; 16A/AC250V
  • Circuit resistance: ≤50mΩ (Initial value)
  • Insulation resistance: ≥100mΩ
  • Action temperature range: 40~150℃
  • Case: Metal case and plastic case
  • Life: ≥10,000 cycles
Dimensions
Model L(mm) W(mm) H(mm) Electrical Rating Lead Wire (mm)
BW metal 20 7.5 3.8 5A/250V; 10A/250V AWG#22, AWG#18 high temperature silicone wire L1=L2=70mm, or according to customer requirements
BW metal 20 8.0 4.1 16A/250V AWG#22, AWG#18 high temperature silicone wire L1=L2=70mm, or according to customer requirements
BW plastic 20 8.0 4.0 5A/250V; 10A/250V AWG#22, AWG#18 high temperature silicone wire L1=L2=70mm, or according to customer requirements
Temperature Specifications
Code Open Temp. Reset Temp. Code Open Temp. Reset Temp.
4040℃±5℃≥30℃100100℃±5℃70±10℃
4545℃±5℃≥30℃105105℃±5℃70±12℃
5050℃±5℃≥30℃110110℃±5℃75±12℃
5555℃±5℃≥30℃115115℃±5℃80±12℃
6060℃±5℃40±10℃120120℃±5℃85±12℃
6565℃±5℃45±10℃125125℃±5℃90±12℃
7070℃±5℃50±10℃130130℃±5℃95±12℃
7575℃±5℃55±10℃135135℃±5℃100±12℃
8080℃±5℃60±10℃140140℃±5℃105±12℃
8585℃±5℃65±10℃145145℃±5℃110±12℃
9090℃±5℃70±10℃150150℃±5℃115±12℃
9595℃±5℃75±10℃
Competitive Advantages
  • Small size and easy installation
  • Quick bimetallic strip, fast reaction
  • Life cycle exceeds 10,000 cycles
  • Prevention against vacuum impregnation process leaks
  • Replacement for SENSATA 17AM 7AM, SEKI ST-22, etc.
