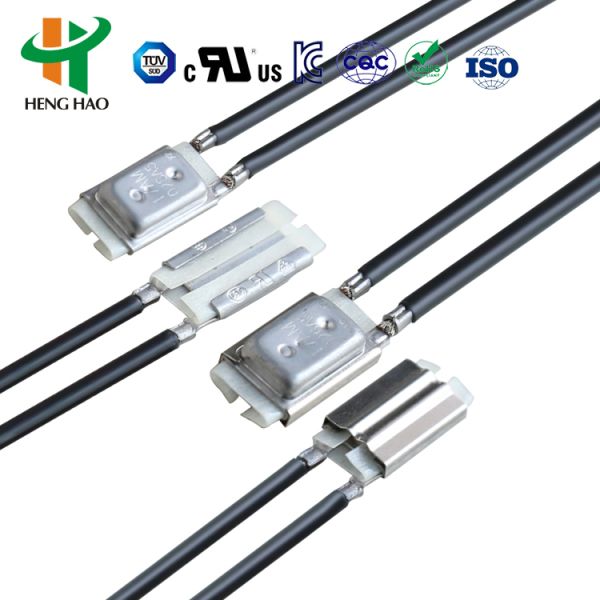

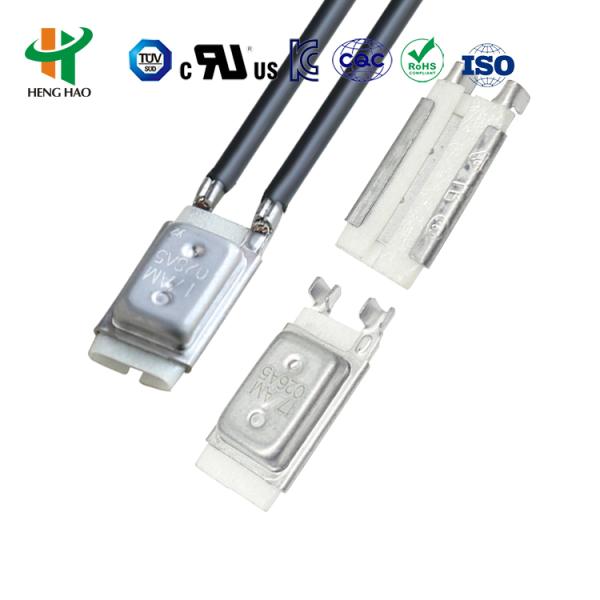

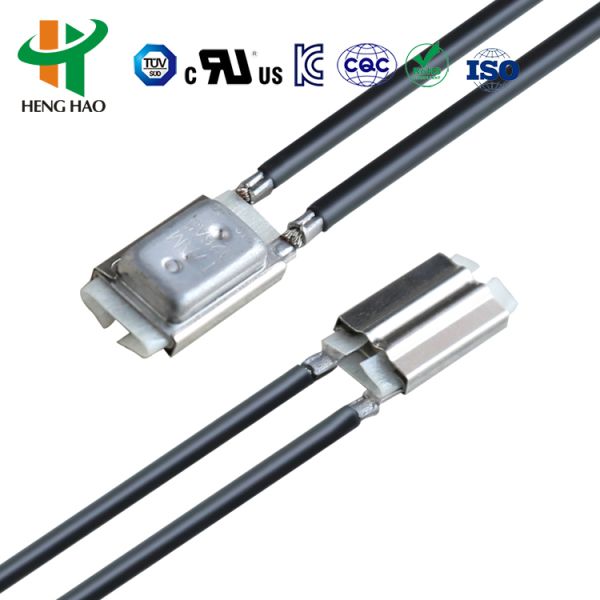

KLIOXN 17AM Motor Thermal Protection Switch Stainless Steel Shell Model
KLIOXN 17AM Motor Thermal Protection Switch Stainless Steel Shell Model
KLIOXN 17AM Motor Thermal Protection Switch Stainless Steel Shell Model
KLIOXN 17AM Motor Thermal Protection Switch Stainless Steel Shell Model
KLIOXN 17AM Motor Thermal Protection Switch Stainless Steel Shell Model
KLIOXN 17AM Motor Thermal Protection Switch Stainless Steel Shell Model
KLIOXN 17AM Motor Thermal Protection Switch Stainless Steel Shell Model
KLIOXN 17AM Motor Thermal Protection Switch Stainless Steel Shell Model
KLIOXN 17AM Motor Thermal Protection Switch Stainless Steel Shell Model
KLIOXN 17AM Motor Thermal Protection Switch Stainless Steel Shell Model
KLIOXN 17AM Motor Thermal Protection Switch Stainless Steel Shell Model
KLIOXN 17AM Motor Thermal Protection Switch Stainless Steel Shell Model
Specifications
Voltage & Curren :
250V 16A
Contact type :
normally closed or normally open
Switch type :
auto reset or manual reset
Place of Origin :
CHINA
Brand Name :
KLIOXN
Certification :
UL VDE CQC SGS
Model Number :
17AM
MOQ :
1000PCS
Price :
negotiate
Packaging Details :
10000pcs per carton
Delivery Time :
5-7 days
Payment Terms :
negotiate
Supply Ability :
100000000pcs per month
Life Cycle :
100000 cycles
Description
KLIOXN 17AM Motor Thermal Protection Switch Stainless Steel Shell Model
Principle and Structure
KLIOXN 17AM Motor Thermal Protection Switch Stainless Steel Shell Model

The KLIXON 17AM thermal protector operates by allowing current to flow through the KLIXON bimetal and two contacts. When the appliance malfunctions, causing ambient temperature or current to become too high, the bimetallic reed activates quickly at the protection temperature to cut off the circuit. When the temperature drops to the reset temperature, the KLIXON bimetallic springs quickly close again to restore circuit operation.

Applications

The 17AM thermal protection switch is suitable for a wide range of applications and offers reliable performance. This compact, fast-acting, thermally activated device is widely used in thermal protection technology to protect various components. It provides over-temperature and thermal protection for motors, pumps, transformers, lighting systems, equipment, and similar electrical appliances.

Specifications
  • Wide range of temperature specifications: 60℃~160℃ ±5℃ (available in 5℃ increments)
  • Contact capacity: AC250V 9A / AC115V 22A / DC16V 20A
  • Dual-action performance for both temperature sensing and current monitoring
  • Stainless steel shell with liner, compatible with most dip-coating processes
  • Customizable riveting wire lengths according to customer specifications and requirements
  • Working life: 10,000 cycles
  • Product dimensions: 23 x 10 x 4.6mm
Temperature Specifications Comparison
Code No Open Temperature
17AM020A565℃±5℃
17AM021A570℃±5℃
17AM022A575℃±5℃
17AM023A580℃±5℃
17AM024A585℃±5℃
17AM025A590℃±5℃
17AM026A595℃±5℃
17AM027A5100℃±5℃
17AM028A5105℃±5℃
17AM029A5110℃±5℃
17AM030A5115℃±5℃
17AM031A5120℃±5℃
17AM032A5125℃±5℃
17AM033A5130℃±5℃
17AM034A5135℃±5℃
17AM035A5140℃±5℃
17AM036A5145℃±5℃
17AM037A5150℃±5℃

Temperature tolerance: ±5℃

Technical Drawing
KLIOXN 17AM Motor Thermal Protection Switch Stainless Steel Shell Model
