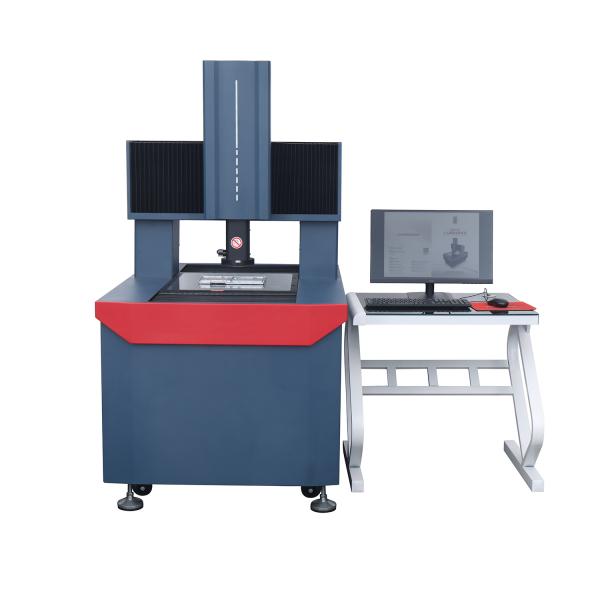

KV-S-552 Automatic Video Measuring Machine 1600W with Servo Motor Fixed Bridge
KV-S-552 Automatic Video Measuring Machine 1600W with Servo Motor Fixed Bridge
Specifications
Brand Name :
koqia
Model Number :
KV-S-552
Certification :
CE
Place of Origin :
Guangong/China
MOQ :
1 Sets
Price :
Can be discussed
Payment Terms :
L/C,T/T
Supply Ability :
100 Sets/Month
Delivery Time :
30 work days
Packaging Details :
Plywood
Structure :
Fixed-bridge
Base Material :
Marble
Image Sensors :
1/2" digital CCD, high pixels, global color, large field of view
Resolution :
0.5µm
Lens :
6.5X
Magnifier Rate*1 :
20X-126X(0.7X-4.5X)
Load-bearing (kg) :
25kg
Power Supply :
1600W
Operating Voltage :
AC 220V,50/60Hz or others
Description

KV-S-552 Servo Motor Fixed-Bridge Automatic Video Measuring MachineKV-S-552 Automatic Video Measuring Machine 1600W with Servo Motor Fixed Bridge

Product Introduction:

【 KV-S 】Series servo motor fixed bridge automatic measuring instrument, preferably high-density granite workbench, high compressive strength, low water absorption, high surface hardness and other advantages, combined with the self-developed load-bearing platform to ensure that the workpiece has no displacement during operation, and the stability is better;

KV-S-552 Automatic Video Measuring Machine 1600W with Servo Motor Fixed Bridge

KV-S-552 Automatic Video Measuring Machine 1600W with Servo Motor Fixed Bridge

KV-S-552 Automatic Video Measuring Machine 1600W with Servo Motor Fixed Bridge

KV-S-552 Automatic Video Measuring Machine 1600W with Servo Motor Fixed Bridge

KV-S-552 Automatic Video Measuring Machine 1600W with Servo Motor Fixed Bridge

KV-S-552 Automatic Video Measuring Machine 1600W with Servo Motor Fixed Bridge

KV-S-552 Automatic Video Measuring Machine 1600W with Servo Motor Fixed Bridge

KV-S-552 Automatic Video Measuring Machine 1600W with Servo Motor Fixed Bridge

Basic Functions:

KV-S-552 Automatic Video Measuring Machine 1600W with Servo Motor Fixed Bridge

KV-S-552 Automatic Video Measuring Machine 1600W with Servo Motor Fixed Bridge

Measurement Function:

KV-S-552 Automatic Video Measuring Machine 1600W with Servo Motor Fixed Bridge

Fields of Application:

KV-S-552 Automatic Video Measuring Machine 1600W with Servo Motor Fixed Bridge

Specifications:

Model

KV-S-332

KV-S-442

KV-S-552

KV-S-662

Travel

X(mm)

300

400

500

600

Y(mm)

300

400

500

600

Z(mm)

200

200

200

200

Structure

Fixed-bridge

Base Material

Marble

Monitor

24-inch LCD Monitor

Image Sensors

1/2" digital CCD, high pixels, global color, large field of view

Resolution

0.5µm

Lens

6.5X

Magnifier Rate*1

20X-126X(0.7X-4.5X)

Lighting system

Transmitted Light

LED Telecentric Transmission Ilumination

Surface Light

5 Rings and 8 Zone Split light

Coaxial Light

Optional, LED light

Detection Accuracy*2

X/Y-axis

(1.8+L/200)µm

(2.0+L/200)µm

(2.2+L/200)µm

(2.4+L/200)µm

Z-axis

(5.0+L/200)µm

Maximum Speed

XY(mm/s)

300 mm/s

Z(mm/s)

100 mm/s

Dimensions(mm)

1150×850×1650

1350×950×1650

1550×1050×1650

1650×1250×1650

Instrument weight (kg)

620kg

710kg

810kg

920kg

Load-bearing (kg)

25kg

Power Supply

1600W

Sensor Configuration

Optional, (1) point spectral sensor; (2) Line laser sensor; (3) contact probe;

Motion Control

Servo Control System

Measurement Software

GQuick Series

Operating Voltage

AC 220V,50/60Hz or others

Working Environment

Temperature 20°C ±3°C, humidity 35~75%

*1 Image magnification is approximate and depends on the size and resolution of the display
*2 At the focusing position, when the ambient temperature is 20°C ± 3°C, the weight mounted on the stage is 5 kg or less, and L is the stage movement (mm)
