Galvanized Steel Loop Hanger Strut Pipe Clamps 1.5mm
Galvanized Steel Loop Hanger Strut Pipe Clamps 1.5mm
Galvanized Steel Loop Hanger Strut Pipe Clamps 1.5mm
Galvanized Steel Loop Hanger Strut Pipe Clamps 1.5mm
Specifications
Brand Name :
KOKA
Model Number :
KK-LH015
Certification :
ISO9001-2015
Place of Origin :
Shanghai
MOQ :
1000PCS
Price :
Sent email to us
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
999999/pcs/month
Delivery Time :
10-25 work days
Packaging Details :
Pallet Packing,customized requirement
Material :
Carbon Steel/ss304/ss316/Copper/Aluminum
Surface Treatment :
Zinc Plated /Galvanized/HDG
Usage :
Pipe Clamp
Thickness :
1.5-3.0MM
Service :
OEM ODM
Sample :
Available
Package :
Carton Box
Description

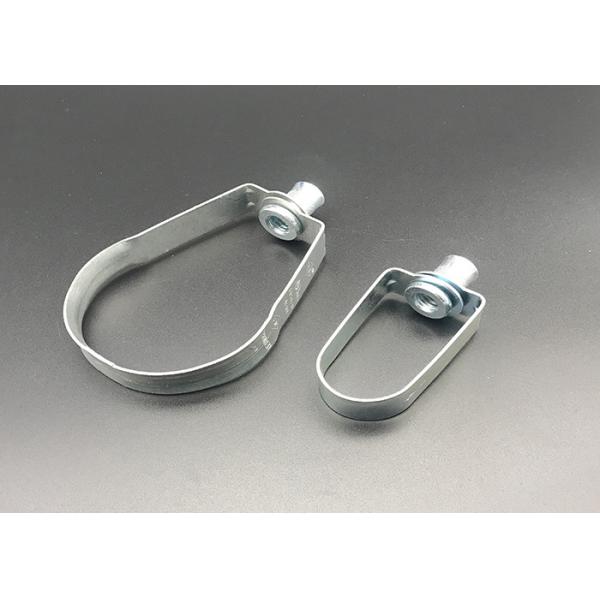

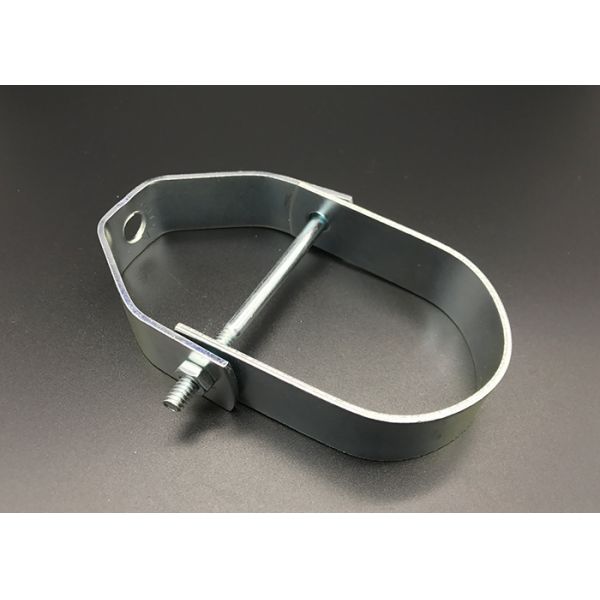

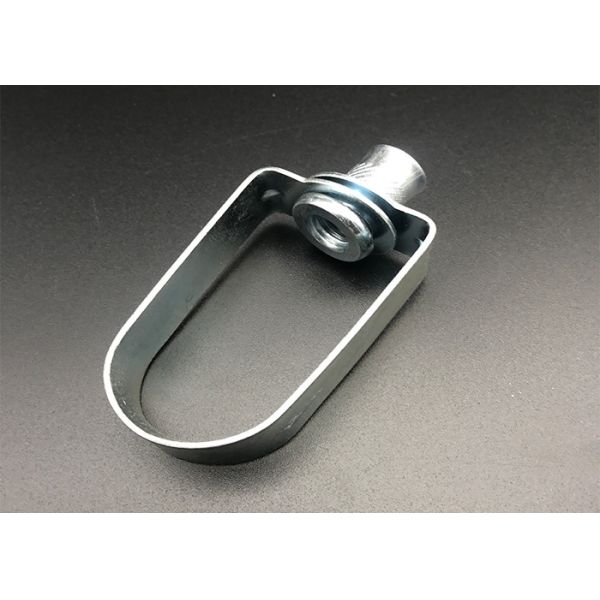

Galvanized Steel Loop Hanger Strut Pipe Clamps 1.5mm

Products: Loop Hanger

Features:

Flared edges help to protect plastic pipe
An integral fold-over washer (pipe sizes 2 1/2" to 8")
Suitable for Both Indoor and Outdoor Applications.
Pipe Size Range: 2/1''to8''
Material: Galvanized Steel

Applications:

Loop hangers are used in various industries for clamping pipes or lifting the pipes.

Used for mounting of pipes to the walls,cellings and floors.
For suspending stationary non-insulated copper tubing lines.
Being fasteners for the pipe lines,such as,heating,sanitary and waste pipes,to walls,cellings and floors.
Side screws are protected against loss during assemble with the help of lastic washers.

Certification:

Standard: DIN,ANSI,JIS,ASTM, Non-Standard
Material: stainless steel, carbon steel, copper
Finish: electric galvanized, hot-dip galvanized, powder coated
Size: 1/2" - 8"
Quality control: rigid quality inspection throughout the production
Package: standard or customized
Lead time: 15-30 days, depend on the order quantity

Part No. Pipe Size(Inch) Nut Size ØD(mm) Finish
KK-LH015 1/2” 3/8 21.3 EG/HDG/SS304/SS316
KK-LH020 3/4” 3/8 27.2 EG/HDG/SS304/SS316
KK-LH025 1” 3/8 34.0 EG/HDG/SS304/SS316
KK-LH032 1-1/4” 3/8 42.7 EG/HDG/SS304/SS316
KK-LH040 1-1/2” 3/8 48.6 EG/HDG/SS304/SS316
KK-LH050 2” 3/8 60.5 EG/HDG/SS304/SS316
KK-LH065 2-1/2” 3/8 73.0 EG/HDG/SS304/SS316
KK-LH080 3” 3/8 89.1 EG/HDG/SS304/SS316
KK-LH090 3-1/2” 3/8 101.6 EG/HDG/SS304/SS316
KK-LH100 4” 3/8 114.3 EG/HDG/SS304/SS316
KK-LH125 5” 1/2 141.3 EG/HDG/SS304/SS316
KK-LH150 6” 1/2 168.3 EG/HDG/SS304/SS316
KK-LH200 8” 1/2 219.1 EG/HDG/SS304/SS316

Product Show:

Galvanized Steel Loop Hanger Strut Pipe Clamps 1.5mmGalvanized Steel Loop Hanger Strut Pipe Clamps 1.5mm

Galvanized Steel Loop Hanger Strut Pipe Clamps 1.5mmGalvanized Steel Loop Hanger Strut Pipe Clamps 1.5mm

Package:

Galvanized Steel Loop Hanger Strut Pipe Clamps 1.5mm

Galvanized Steel Loop Hanger Strut Pipe Clamps 1.5mm

Shanghai KoKa Industrial Co.,Ltd is a professional cable management systems (CMS) & Strut Framing systems and HVAC systems solutions provider,manufacturer .

Based on over 15 years of engineering experience to the subways, airports, shopping malls, food, beverage, petrochemical ,and pharmaceutical industries, the KOKA production of stainless steel products has become a respected and specified brand to some of the world's most recognised organisations.

KOKA products are known throughout the industry as being hygienic, high quality and to offer exceptional value.

KOKA offer an extensive range of products ex-stock and can therefore process your orders with a short lead time, with the majority of parts available on a next day delivery.

KOKA specialises in manufacturing the following products in SS304 , SS316 ,carbon steel.

KOKA to provide personalized demand and global sourcing solutions for global customers,always adhere to the product quality first,Continuous development and optimization design, with user-friendly, simple installation to satisfied customer needs, and strive to reduce customer costs, to adapt to the global competition, With global customers to cope with the complex economic environment, to achieve common value growth of the target.

Galvanized Steel Loop Hanger Strut Pipe Clamps 1.5mm

FAQ:

Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example:

1: what material(carbon steel/Q235/SS304/SS316)

2: what size do you need ?
3: what surface finished( zinc plate/HDG/powder coating/copper plated)?
Q4: Do you provide free samples?
A: Yes ,you can get the free samples
Q5: What is your payment terms?
A: 30% T/T deposit,balance will be against each copy of B/L;
Q6: How about the delivery time?
A: According to your order list and quantity,Normally delivery in 20-25days.
