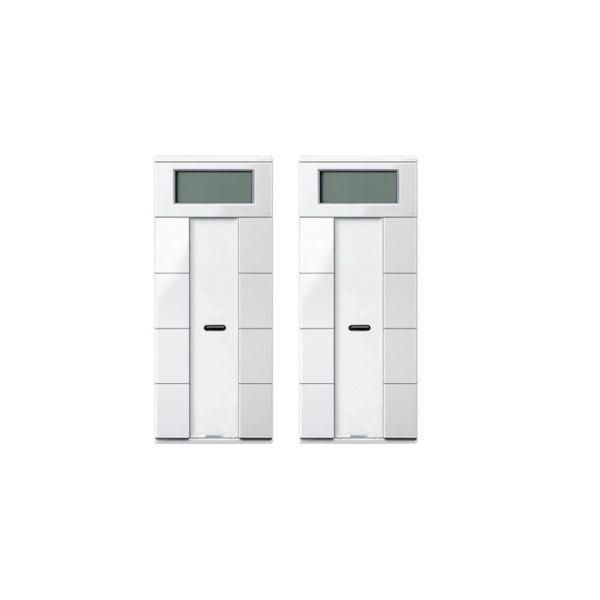

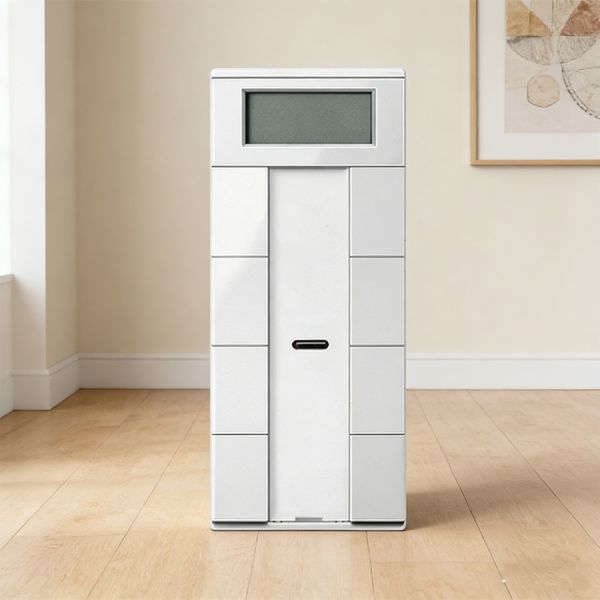

MTN6214-0319 Schneide System M KNX Thermostat Glossy Polar White with Display
MTN6214-0319 Schneide System M KNX Thermostat Glossy Polar White with Display
MTN6214-0319 Schneide System M KNX Thermostat Glossy Polar White with Display
MTN6214-0319 Schneide System M KNX Thermostat Glossy Polar White with Display
MTN6214-0319 Schneide System M KNX Thermostat Glossy Polar White with Display
MTN6214-0319 Schneide System M KNX Thermostat Glossy Polar White with Display
Specifications
Brand Name :
Schneide
Model Number :
MTN6214-0319
Certification :
CE RoHS
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Security Features :
Anti-theft
Protection Rating :
IP20
Mounting Type :
Flush mounting design
Type :
MTN6214-0319
Description

MTN6214-0319 Schneider System M KNX Thermostat Glossy Polar White with Display



(一)Core Parameters

1. Technical Performance Parameters

  • Bus Protocol: Only supports KNX wired bus protocol, not compatible with KNX wireless, Radio Bus, Lon, Powernet and other buses; can be seamlessly integrated into KNX building automation systems, serving as a central functional unit for transmitters/actuators to achieve cross-device linkage.
  • Control Functions: Equipped with a 4-key control panel, core supports manual room temperature adjustment; built-in 10 activation points and timer function, supporting background centralized control; with infrared sensor to assist in realizing inductive control linkage, no dimming control function, meeting basic temperature control scenario needs.
  • Display & Indication: Equipped with a display screen to clearly show temperature value and device operating status in real time; status LED indicator for quick troubleshooting of equipment abnormalities; infrared sensor can sense external operation signals, improving usability.
  • Installation & Protection: Adopts flush mounting design, perfectly compatible with Schneider System M series; IP20 protection rating, suitable for indoor dry environments; with anti-theft/disassembly protection function to effectively prevent arbitrary disassembly of equipment in public scenarios and ensure operational stability.

2. Appearance & Material Parameters

  • Material & Craftsmanship: The main body is made of high-quality plastic, with a glossy surface treatment to create a crystal texture, delicate and smooth to the touch. Although it has no heavy metal texture, it has better compatibility and lower cost, is not easy to scratch in daily use, and is easy to clean and maintain.
  • Color Specification: Polar white appearance, color close to RAL9010 standard color, pure and soft tone; the glossy surface has a brightening effect, which can easily integrate into various indoor decoration styles such as modern, minimalist and light luxury, no transparent design.

(二)Application Scenarios

1. Residential Buildings

Suitable for all-scenario residential spaces such as villas, ordinary residences and high-end flats. The polar white glossy appearance can seamlessly match the decoration style of living rooms, bedrooms, studies and other areas. Combined with infrared sensing and timer function, it can realize "inductive wake-up - timed temperature control" linkage, fit family members' work and rest, and manual temperature adjustment is convenient, meeting daily home basic temperature control needs, balancing practicality and aesthetics.

2. Commercial Office Buildings

Applicable to commercial office scenarios such as office buildings, office parks and entrepreneurial incubators, and can be deployed in partitions according to office areas. The glossy polar white appearance is simple and elegant, not obtrusive in the office environment; centralized control and anti-disassembly protection functions can not only meet the unified management needs of property, but also avoid equipment being mistakenly disassembled or damaged; the timer function can match work schedules to preset temperature control schemes, helping to save energy and reduce consumption.

3. Hotels & Cultural Tourism Venues

Suitable for cultural tourism accommodation venues such as star-rated hotel rooms, boutique homestays and express hotels. The polar white glossy material is highly consistent with the clean decoration style of hotel rooms. The flush mounting design saves space, and the display screen clearly shows the room temperature for guests to view and adjust intuitively; the anti-disassembly protection function ensures equipment safety, and it can be connected to the hotel building system for unified monitoring, balancing guest experience and management efficiency.

4. Medical & Educational Buildings

Can be applied to basic public scenarios such as school classrooms, training institutions and general hospital consulting rooms. The plastic material is easy to clean and disinfect, adapting to public health management needs. The polar white appearance is bright and clean, meeting the visual needs of public spaces; the stability of the KNX system ensures accurate temperature control, and the anti-disassembly function prevents students and visitors from misoperation or disassembly, ensuring the orderly development of teaching and diagnosis work.
