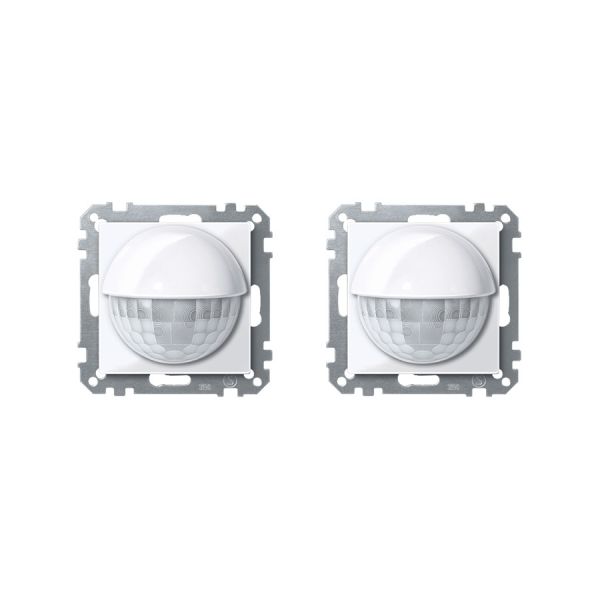

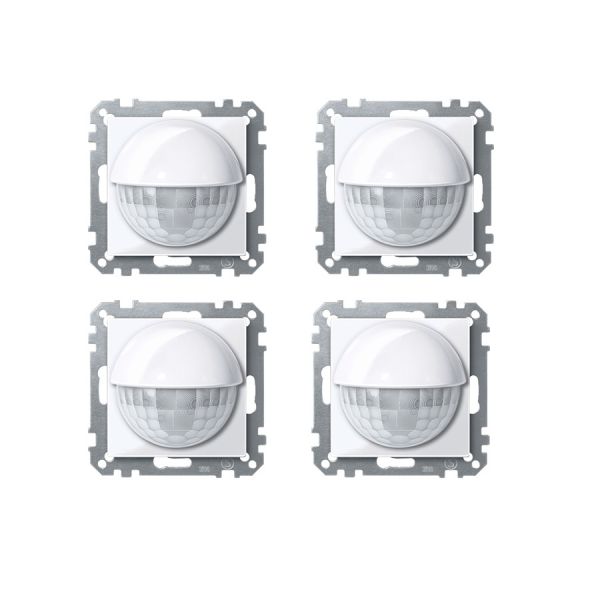

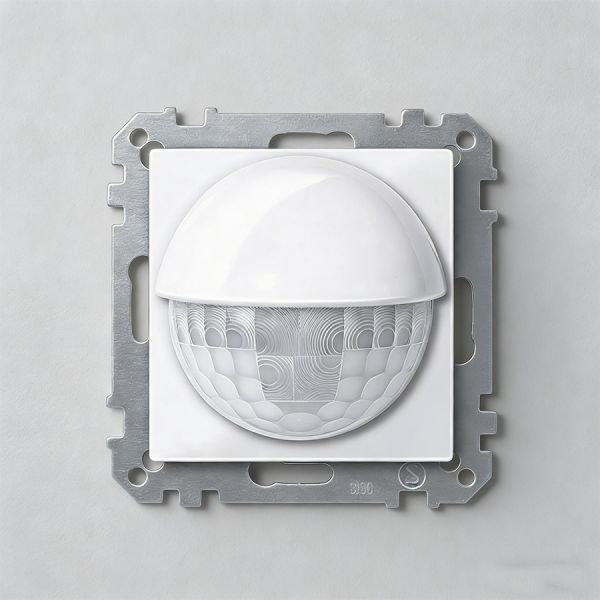

MTN630425 Schneider KNX ARGUS Flush-mounted Building Control Presence Detector 180° 2.20m

Core Parameters

1. Bus Protocol: Natively compatible with the KNX EIB/TP1 building automation bus protocol, supporting KNX Secure end-to-end encrypted transmission and built-in a dedicated linkage module for building automation. It can be directly connected to the building's KNX central control system to achieve refined logical linkage with KNX devices such as lighting, HVAC, fresh air and electric curtains; adapted to Schneider MTN6300-0002 dedicated remote control, supporting remote parameter adjustment, one-click fault reset, and real-time reporting of device status to the bus, meeting the centralized operation and maintenance needs of large buildings.
2. Detection Performance: Equipped with an upgraded infrared induction module of the ARGUS series, the 180° wide-angle detection can cover a large single-side area, and the 2.20m precise sensing range is suitable for short and medium-distance human perception indoors, which can accurately identify static and dynamic human presence signals; it is resistant to indoor strong light, multi-device radio frequency interference and conventional temperature and humidity fluctuations. The detection sensitivity and trigger delay support both local and remote adjustment, and the "presence monitoring/movement monitoring" mode is switchable to avoid false and missing triggers from the source.
3. Installation Design: Adopting standardized flush-mounted installation, it perfectly fits the general pre-embedded junction boxes on indoor walls/ceilings, with a compact body structure that does not occupy additional space. After installation, it fits seamlessly with the decoration surface without damaging the overall visual effect of the building; the terminal blocks are compatible with 0.5-2.5mm wire diameter and equipped with anti-loose, anti-fall and anti-vibration buckles to ensure stable bus connection, suitable for batch standardized construction at the project site and reducing construction costs.
4. Protection & Working Conditions: IP20 protection rating, specially designed for indoor non-exposed environments with basic dust-proof and slight dust erosion resistance; operating temperature 0℃~40℃, operating humidity 5%~95% (no condensation), able to withstand conventional indoor temperature and humidity fluctuations, supporting 24/7 continuous and stable operation without the risk of circuit damage or signal interruption caused by condensed water, adapting to the long-term uninterrupted use needs of buildings.
5. Material & Craftsmanship: The main body is made of V0 grade flame-retardant engineering plastic through an integrated injection molding process, with high mechanical strength, aging resistance and slight impact resistance, complying with national building fire protection specifications and material requirements for building automation equipment; the shell features a unified matte and simple design of the ARGUS series with standard white/light gray color scheme, highly adapted to various indoor decoration styles, with no sense of abruptness in flush-mounted installation, balancing practicality and serialized visual unity.
6. Additional Features: Directly powered by the KNX bus, the low-power consumption design does not require additional power adapters, reducing building wiring costs; a built-in signal stabilization module improves the stability of bus signal transmission in complex wiring and multi-device parallel connection environments; it supports multi-device grouping and zoning linkage, and detectors in the same area can achieve logical synchronization, adapting to the demand for refined zoning management and control of large commercial buildings and government and enterprise buildings.

Application Scenarios

1. Commercial Office Buildings (Open Office Areas/Small Meeting Rooms/Floor Corridors): Flush-mounted on walls/ceilings, the 180° wide angle can fully cover one side of the office area and the entire corridor area, linking office lighting and central air conditioners, and turning off equipment with a delay after personnel leave to reduce ineffective energy consumption; the grouping linkage function is adapted to the floor zoning management of office buildings, remote operation and maintenance reduces the cost of manual inspection, and batch installation is suitable for intelligent new construction and renovation projects of office buildings.
2. Commercial Complexes/Shopping Malls (Public Corridors/Escalator Entrances/Leisure Experience Areas): Flush-mounted installation fits the mall decoration style, the 2.20m precise sensing range is adapted to the activity range of personnel in public areas, and the anti-interference design is immune to radio frequency interference from multiple mall devices; it links public lighting and channel fresh air systems to realize passenger flow-based intelligent management with high-sensitivity monitoring during peak hours and energy-saving sleep during off-peak hours, balancing user experience and energy saving.
3. Star-rated Hotels/High-end Homestays (Guest Rooms/Floor Corridors/Lobby Leisure Areas): Flush-mounted on the guest room headboard/wall, it accurately detects human presence and links guest room air conditioners and bedside lamps, and the equipment runs continuously when guests sit or rest to improve the living experience; single-sided deployment in floor corridors, the 180° wide angle covers the entire corridor, linking lighting to realize automatic start when occupied and delayed shutdown when unoccupied, reducing hotel operating energy consumption.
4. Hospitals/Schools/Libraries (Consulting Rooms/Classrooms/Reading Areas): V0 grade flame-retardant material complies with fire protection specifications for public buildings, and flush-mounted installation is anti-collision and anti-man-made damage; accurate presence detection can link consulting room lighting/fresh air and classroom eye-protecting lamps, avoiding false shutdown of equipment caused by personnel sitting quietly, adapting to the dual needs of safety and intelligence in cultural, educational and medical scenarios, and complying with the use standards of public buildings.
5. High-end Residences/Smart Apartments (Living Rooms/Corridors/Studies): Flush-mounted installation integrates seamlessly with the home decoration style, the 180° wide angle covers open areas such as living rooms and corridors, and links the whole-house KNX smart home system (lighting, fresh air, smart air conditioners) to realize non-sensing intelligent control in the residence; the low-power consumption design and bus power supply are adapted to the wiring requirements of residential smart homes, improving the convenience and intelligence of home life.
6. Government and Enterprise Office Buildings/Industrial Parks (Reception Rooms/Pantries/Park Supporting Corridors): Adapted to the standardized construction and centralized management needs of government and enterprise offices and industrial parks, multi-device grouping and zoning linkage can realize refined intelligent management and control of the entire building and the whole park; 24/7 continuous and stable operation is adapted to the all-weather use scenarios of the park, and the low-power bus power supply meets the construction requirements of green energy saving and low-carbon office in the park.
