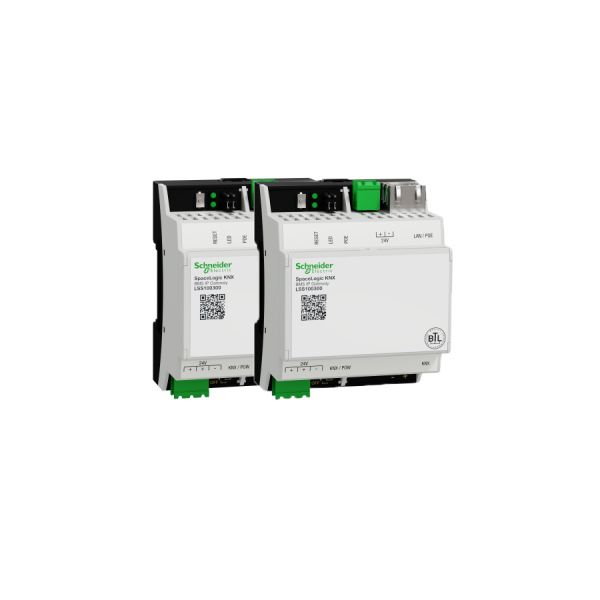

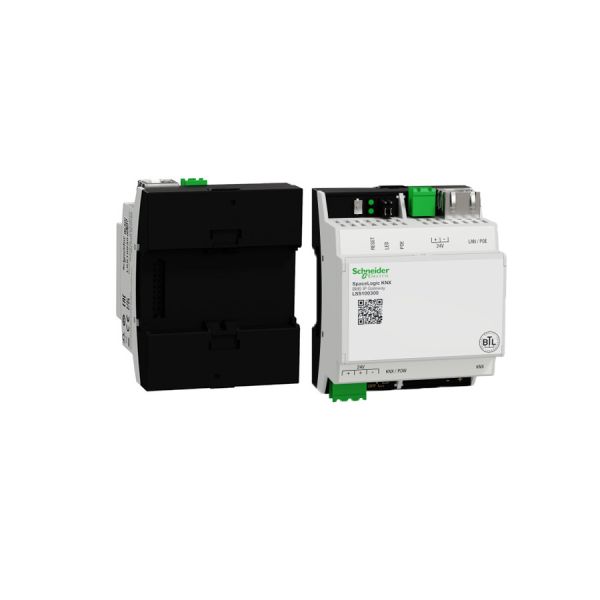

LSS100300 Schneide SpaceLogic KNX BMS Industrial Grade IP Gateway BMS System
LSS100300 Schneide SpaceLogic KNX BMS Industrial Grade IP Gateway BMS System
LSS100300 Schneide SpaceLogic KNX BMS Industrial Grade IP Gateway BMS System
LSS100300 Schneide SpaceLogic KNX BMS Industrial Grade IP Gateway BMS System
LSS100300 Schneide SpaceLogic KNX BMS Industrial Grade IP Gateway BMS System
LSS100300 Schneide SpaceLogic KNX BMS Industrial Grade IP Gateway BMS System
Specifications
Productname :
DALI Gateway
Mounting Support :
DIN Rail
Firmwareupgrade :
Supported via Ethernet
Power Consumption :
5W
Dimensions :
120mm x 90mm x 45mm
Inputvoltage :
100-240V AC
Mounting Type :
DIN Rail
Supportedprotocols :
DALI, KNX, Modbus, BACnet
Brand Name :
Schneide
Model Number :
LSS100300
Certification :
CE RoHS
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Mountingtype :
DIN rail mount
Installation :
DIN 35mm standard rail mounting
Interfaces :
KNX TP bus interface
Outputvoltage :
12V DC
Description
SpaceLogic KNX BMS Industrial Grade IP Gateway
Model: LSS100300 - Bidirectional multifunctional integration gateway for KNX building automation and BMS systems
Core Specifications
Specification Details
Product Model LSS100300
Product Type Bidirectional multifunctional integration gateway with BTL certification (B-ASC & B-GW)
Protocol Support KNXnet/IP and BACnet protocols with 100% cross-protocol compatibility
Function Integration 3-in-1 design (KNX IP router, KNX IP interface, DPSU choke power supply)
Power Supply DC 24V wide voltage, 2W rated power consumption
Installation DIN 35mm standard rail mounting
Operating Temperature -10℃ to 60℃
Protection Class IP20
Key Features
  • Integrated 3-in-1 functionality eliminates need for additional routers or KNX power supplies
  • BTL-certified compatibility ensures seamless integration with all BACnet clients and KNX devices
  • Web-based visual configuration and remote firmware upgrades
  • Built-in KNX data security mechanisms prevent unauthorized access
  • Ultra-low energy consumption design for sustainable operation
  • LED indicators for easy operation and maintenance troubleshooting
  • 75% reduction in installation time compared to traditional solutions
Application Scenarios
Commercial & Industrial Building Management
  • Super Grade A Office Buildings - Centralized BMS control of lighting, HVAC, and energy systems
  • Large Commercial Complexes - Multi-system linkage for energy optimization and passenger flow adaptation
  • Star-rated Hotels - Integration of guest room controls with hotel BMS for energy management
  • Smart Parks - Unified management of office buildings, shops, and landscape areas
  • High-end Hospitals - Medical facility integration with environmental control and equipment monitoring
Core Values
Integration Advantage: 3-in-1 design reduces equipment deployment and project costs
Compatibility Guarantee: BTL certification ensures seamless cross-protocol integration
Energy Efficiency: Low-power design and remote operation reduce operational costs
Security & Stability: Built-in security mechanisms ensure reliable 24/7 operation
Ecosystem Integration: Perfect compatibility with Schneide EcoStruxure platform

FAQ:

• Can you quote this model with other Schneider KNX components?

Yes. Please send your BOQ or model list. We can quote actuators, DALI gateways, sensors, pushbuttons, power supplies and BAS gateway products together.


• Is this product suitable for hotel lighting control?

This model is commonly used in KNX lighting control projects. Final selection should be confirmed by the project integrator according to load type, channel quantity and ETS design.


• Do you have stock?
Stock changes frequently. Please send the required quantity and destination country, and we will confirm availability and lead time.


• Can you ship to UAE / Saudi Arabia / Qatar? Other country?
Yes. We can arrange international shipping by DHL, FedEx, UPS or air cargo depending on order quantity and destination.


• Can you help with replacement models?

Yes. Please send the old model number, photo or project list. We will help check available replacement or compatible options.
