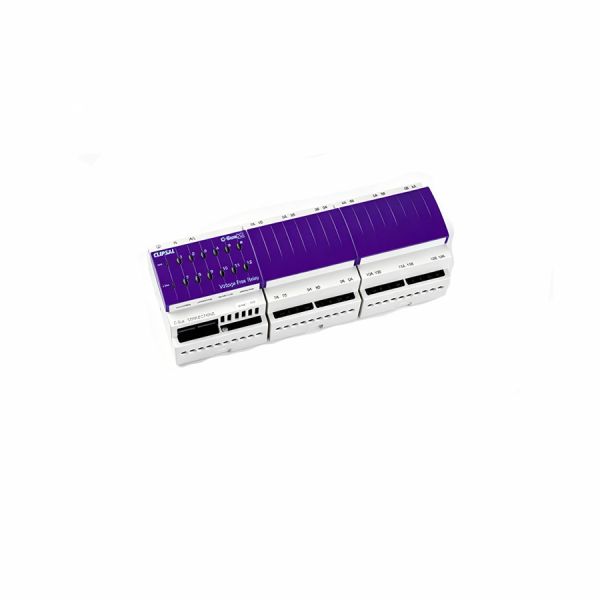

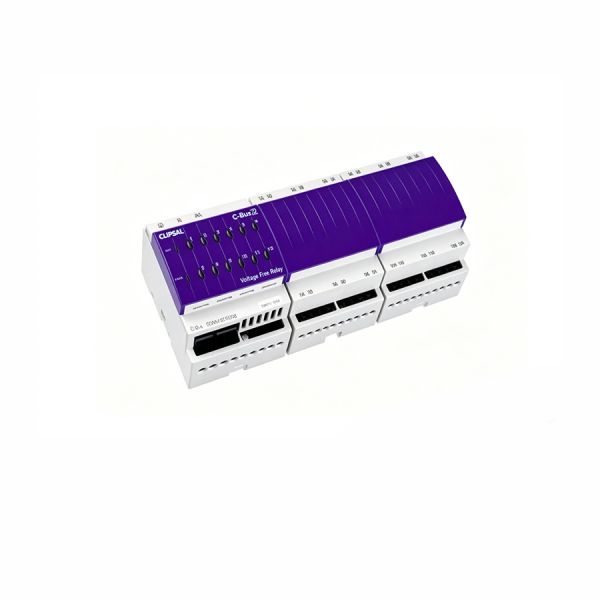

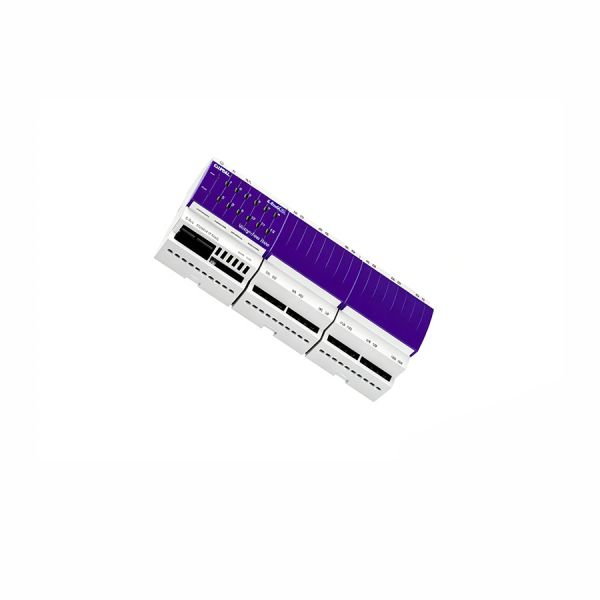

L5512RVFP - C-Bus 12-Channel Output Module with Relay & Leading-Edge Dimming 60A Total
L5512RVFP - C-Bus 12-Channel Output Module with Relay & Leading-Edge Dimming 60A Total
L5512RVFP - C-Bus 12-Channel Output Module with Relay & Leading-Edge Dimming 60A Total
L5512RVFP - C-Bus 12-Channel Output Module with Relay & Leading-Edge Dimming 60A Total
L5512RVFP - C-Bus 12-Channel Output Module with Relay & Leading-Edge Dimming 60A Total
L5512RVFP - C-Bus 12-Channel Output Module with Relay & Leading-Edge Dimming 60A Total
Specifications
Brand Name :
Schneider
Model Number :
L5512RVFP
Certification :
CE RoHS
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Description
L5512RVFP - C-Bus 12-Channel Output Module with Relay & Leading-Edge Dimming 60A Total
Product Overview

The L5512RVFP is a high-density C-Bus output module that combines relay switching and leading-edge dimming in a single compact DIN rail unit. With 12 independently controllable channels, each supporting up to 10A, this module is the workhorse of medium-to-large C-Bus lighting installations. It delivers reliable performance for both switching and dimming applications, from incandescent lamps to compatible LED drivers.

Technical Specifications
Parameter Specification
Total Channels 12 independent output channels
Load per Channel 10A (resistive) / 2A (inductive/LED)
Total Load Capacity 60A maximum
Dimming Type Leading-edge phase control
Dimming Range 1% - 100%
Operating Voltage AC 220-240V, 50/60Hz
C-Bus Supply 15-36V DC via C-Bus network
Installation DIN rail mount (width: ~144mm)
Protection Overload, short circuit, over-temperature
Status Indication Per-channel LED indicators
Manual Control Local push-buttons for each channel
Dimensions (W×H×D) ~144mm × 90mm × 64mm
Operating Temp 0°C to +45°C
Compliance CE, RCM, RoHS compliant
Key Features
  • 12 channels of switching or leading-edge dimming – each independently configurable
  • Automatic load detection for optimal dimming performance
  • Per-channel overload and short-circuit protection
  • Smooth fade-in/fade-out with programmable ramp times (0-255 seconds)
  • Local manual override buttons for service and emergency use
  • Scene control: store and recall up to 256 preset scenes
  • Real-time status feedback to the C-Bus network
  • Supports Learn Mode for quick commissioning
  • Compatible with incandescent, halogen, magnetic low-voltage, and dimmable LED lamps
Applications
  • Commercial office buildings with zone-based lighting control
  • Hotel corridors, ballrooms, and function rooms
  • Hospital wards with adjustable patient room lighting
  • Retail malls and department stores
  • High-rise residential towers with central building management
  • Conference centers with multiple lighting zones
  • Any project requiring high-channel-count dimming in a single module
Why Choose L5512RVFP?

With 12 channels in one module, the L5512RVFP maximizes output density while minimizing DIN rail space, making it the most cost-effective solution for high-channel-count C-Bus dimming installations.
