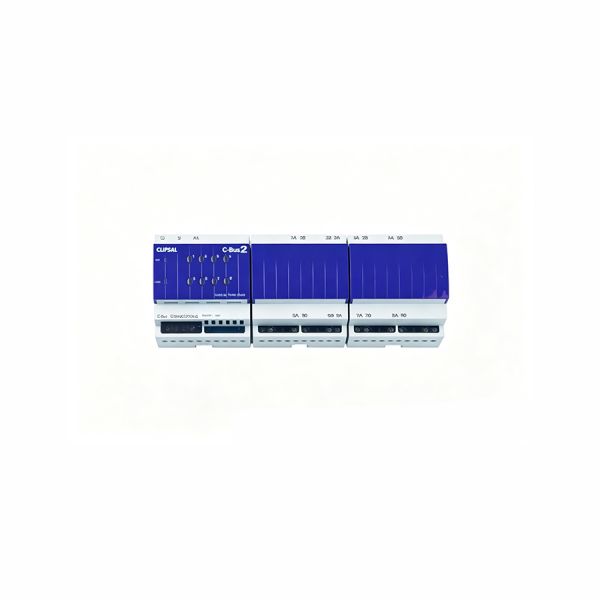

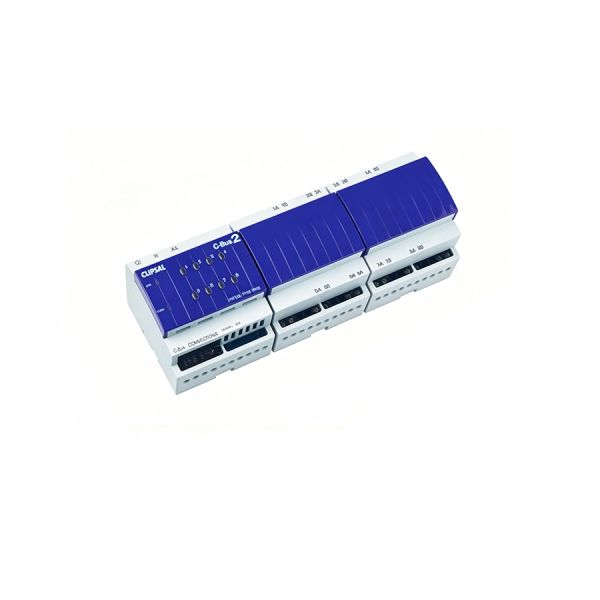

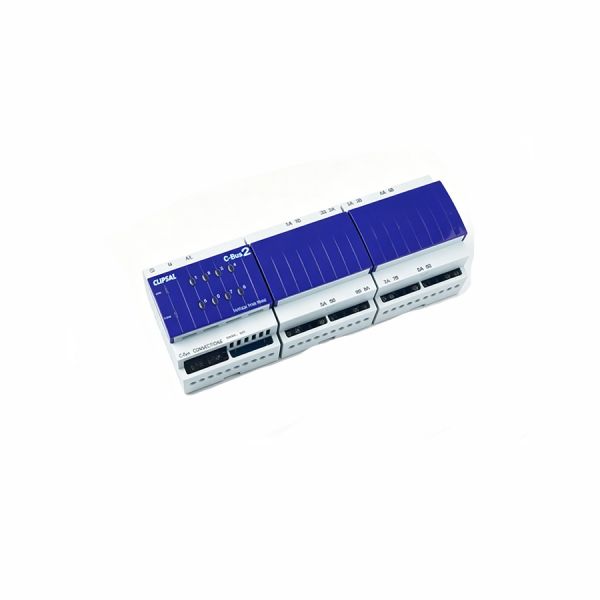

L5508RVF - Clipsal Schneider C-Bus 8-Way Relay Dimmer Relay+Dim Combo 240V AC
L5508RVF - Clipsal Schneider C-Bus 8-Way Relay Dimmer Relay+Dim Combo 240V AC
L5508RVF - Clipsal Schneider C-Bus 8-Way Relay Dimmer Relay+Dim Combo 240V AC
L5508RVF - Clipsal Schneider C-Bus 8-Way Relay Dimmer Relay+Dim Combo 240V AC
L5508RVF - Clipsal Schneider C-Bus 8-Way Relay Dimmer Relay+Dim Combo 240V AC
L5508RVF - Clipsal Schneider C-Bus 8-Way Relay Dimmer Relay+Dim Combo 240V AC
Specifications
Brand Name :
Schneider
Model Number :
L5508RVF
Certification :
CE RoHS
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Description
L5508RVF - Clipsal Schneider C-Bus 8-Way Relay Dimmer Relay+Dim Combo 240V AC
The L5508RVF is a versatile C-Bus output module that combines relay switching and leading-edge dimming capabilities in 8 channels. Each channel can be independently configured as either a simple on/off relay or a full dimmer, providing maximum flexibility for mixed lighting installations.
Product Overview

With 10A per channel capacity, it handles both resistive and inductive loads including LED drivers, making it one of the most adaptable C-Bus output modules available for commercial and residential applications.

Technical Specifications
Parameter Specification
Total Channels 8 independently configurable channels
Load per Channel 10A (resistive) / 2A (inductive/LED)
Total Load Capacity 60A maximum
Dimming Type Leading-edge phase control
Switch Mode Relay ON/OFF
Operating Voltage AC 220-240V, 50/60Hz
C-Bus Supply 15-36V DC via C-Bus network
Installation DIN rail mount
Protection Per-channel overload, short circuit, over-temperature
Status Indication Per-channel LED indicators
Manual Control Local push-buttons for each channel
Fade Control 0-90 seconds configurable
Dimensions Compact DIN rail width
Compliance CE, RCM, RoHS compliant
Key Features
  • 8 channels independently configurable as dimmer or relay
  • Leading-edge dimming for incandescent, halogen, and compatible LED drivers
  • Pure relay switching for fans, non-dimmable loads, and motorized equipment
  • Per-channel overload and short-circuit protection
  • Programmable fade times for smooth lighting transitions
  • Scene control with up to 256 programmable scenes
  • Local manual override buttons for maintenance and emergency
  • Real-time status feedback to C-Bus network
  • Compact DIN rail design for efficient panel layout
Applications
  • Hotels with mixed dimmable and switched lighting zones
  • Conference rooms requiring both mood lighting and AV equipment switching
  • Restaurants with flexible dining area lighting scenarios
  • Classrooms and lecture halls with multiple lighting configurations
  • Healthcare facilities needing adjustable patient lighting plus service outlets
  • Residential developments with diverse lighting requirements
  • Any project combining dimming and switching loads in one system
Why Choose L5508RVF?

The L5508RVF eliminates the need to specify separate dimmer and relay modules by combining both functions in one versatile unit, simplifying panel design and reducing installation costs.
