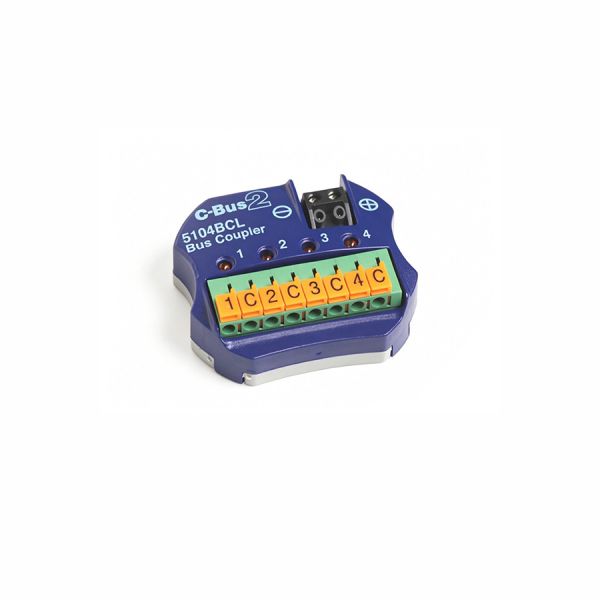

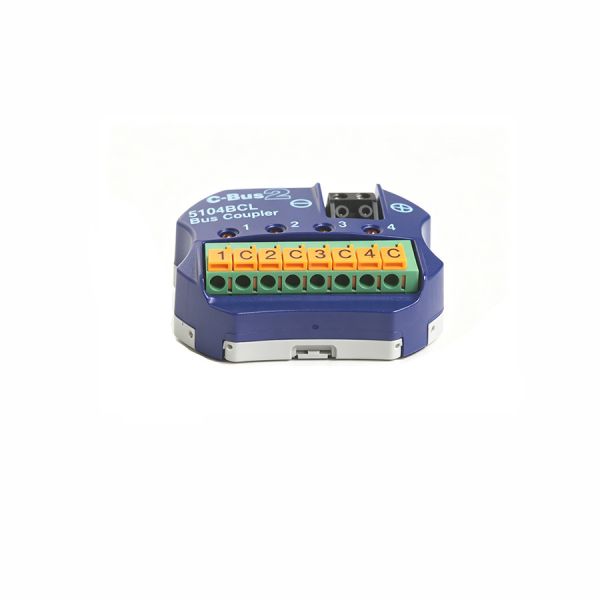

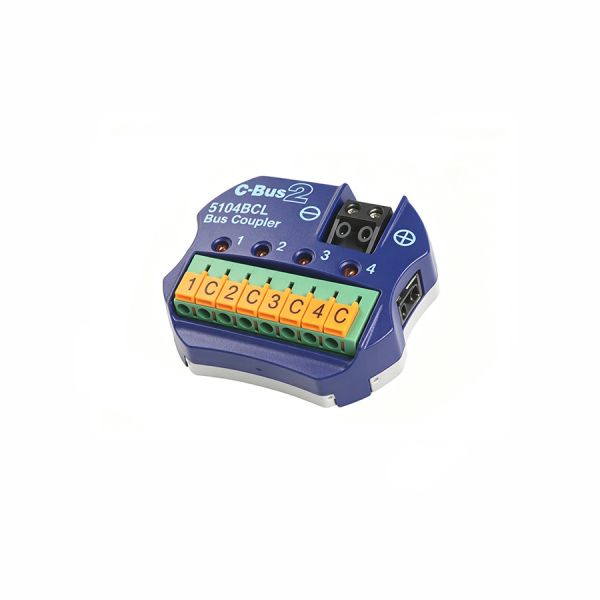

5104BCL - Clipsal Schneider C-Bus Bus Coupler for Large-Scale Network Expansion
5104BCL - Clipsal Schneider C-Bus Bus Coupler for Large-Scale Network Expansion
5104BCL - Clipsal Schneider C-Bus Bus Coupler for Large-Scale Network Expansion
5104BCL - Clipsal Schneider C-Bus Bus Coupler for Large-Scale Network Expansion
5104BCL - Clipsal Schneider C-Bus Bus Coupler for Large-Scale Network Expansion
5104BCL - Clipsal Schneider C-Bus Bus Coupler for Large-Scale Network Expansion
Specifications
Brand Name :
Schneider
Model Number :
5104BCL
Certification :
CE RoHS
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Description
5104BCL - Clipsal Schneider C-Bus Bus Coupler for Large-Scale Network Expansion
Product Overview

The 5104BCL C-Bus Bus Coupler is a critical component for large-scale C-Bus installations. It enables the extension and segmentation of C-Bus networks, allowing installers to overcome distance limitations and create isolated network segments for improved reliability and fault tolerance. The coupler acts as a bridge between C-Bus network segments, maintaining full protocol transparency while providing electrical isolation.

Technical Specifications
Parameter Specification
Function Bus coupling and network segmentation
Network Segments Bridges 2 C-Bus network segments
Isolation Electrical isolation between segments
Installation DIN rail mount
Bus Voltage 15-36V DC (C-Bus supply)
Communication Transparent C-Bus protocol bridging
Indicators LED status for each segment
Compliance CE, RCM certified
Key Features
  • Extends C-Bus network beyond the 1000m single-segment limit
  • Provides electrical isolation between network segments
  • Improves system reliability by isolating fault conditions
  • Supports flexible network topology (star, tree, bus combinations)
  • Transparent protocol bridging — no address programming required
  • LED indicators for quick network diagnostics
  • Compact DIN rail form factor
Applications
  • Large residential estates spanning multiple buildings
  • Commercial complexes with distributed building automation
  • Campus-wide lighting and HVAC integration
  • Underground parking structures with extended cable runs
  • Industrial facilities with separate production zones
  • Hotels with multiple wings and outbuildings
  • Any installation requiring C-Bus coverage beyond standard cable limits
Why Choose 5104BCL?

For projects that exceed standard C-Bus cable run distances, the 5104BCL provides the essential bridge that keeps your entire installation on one unified automation platform.
