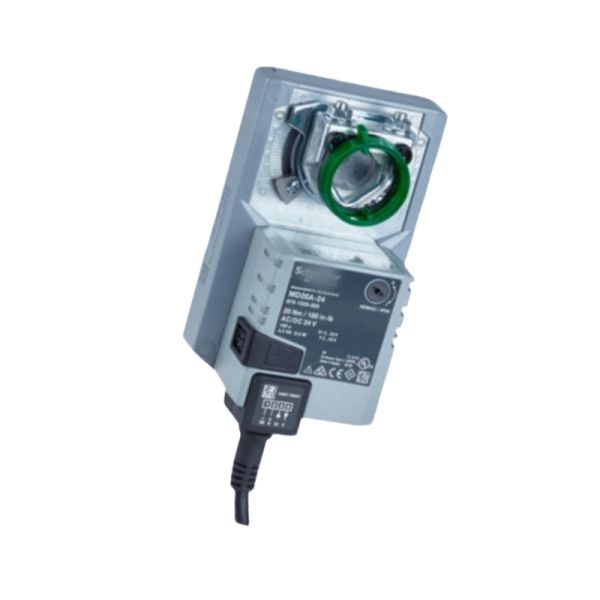

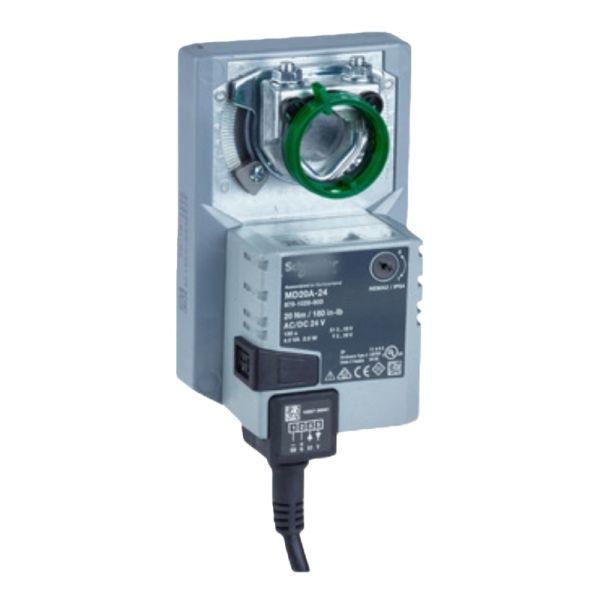

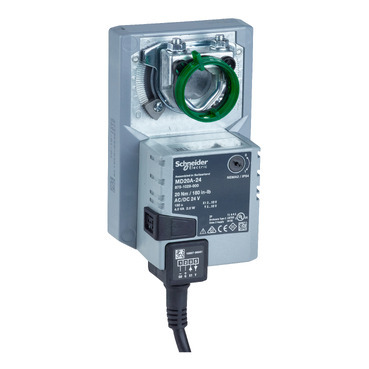

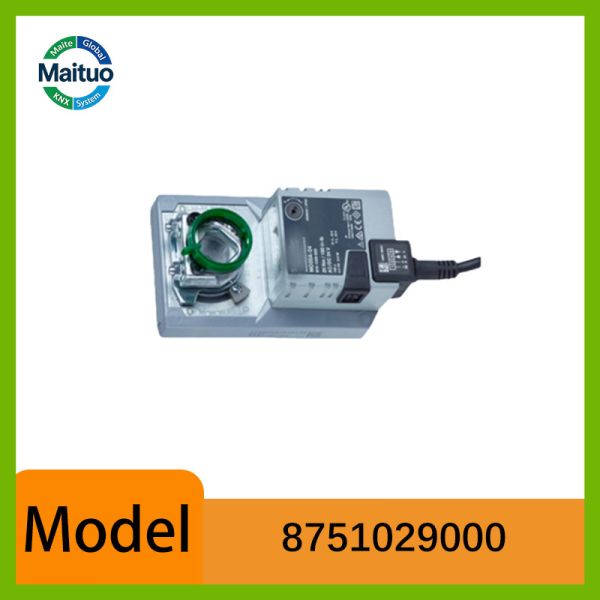

8751029000 Schneider Non-Spring Return Damper Actuator 24V 20Nm 0-10V New
8751029000 Schneider Non-Spring Return Damper Actuator 24V 20Nm 0-10V New
8751029000 Schneider Non-Spring Return Damper Actuator 24V 20Nm 0-10V New
8751029000 Schneider Non-Spring Return Damper Actuator 24V 20Nm 0-10V New
8751029000 Schneider Non-Spring Return Damper Actuator 24V 20Nm 0-10V New
8751029000 Schneider Non-Spring Return Damper Actuator 24V 20Nm 0-10V New
8751029000 Schneider Non-Spring Return Damper Actuator 24V 20Nm 0-10V New
8751029000 Schneider Non-Spring Return Damper Actuator 24V 20Nm 0-10V New
Specifications
Brand Name :
Schneider
Model Number :
8751029000
Certification :
CE RoHS
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Type :
Linear, Rotary, Hydraulic, Pneumatic, Electric
Control Type :
Analog, Digital, PWM
Mounting :
Flange, Foot, Clevis
Material :
Aluminum, Steel, Plastic
Application :
Industrial Automation, Robotics, Automotive, Aerospace
Feedback :
Potentiometer, Hall Effect Sensor, Encoder
Description
8751029000 Schneider Non-Spring Return Damper Actuator 24V 20Nm 0-10V New
Product Overview

The Schneider Electric Non-Spring-Return Damper Actuator (Part No. 8751029000) combines 20 Nm high torque with 0-10V proportional modulating control, manual override, and position feedback — making it the most capable non-spring-return actuator in this series for large precision-controlled damper applications.

Technical Specifications
Part Number 8751029000
Power Supply 24 VAC
Torque 20 Nm
Control Signal 0-10V DC (proportional modulating)
Position Feedback 0-10V
Manual Override Yes
Spring Return No
Rotation Angle 0-95° (adjustable)
Enclosure IP54
Key Features
  • 20 Nm high torque output
  • 0-10V proportional modulating control
  • Manual override capability
  • 0-10V position feedback signal
  • Non-spring return design
  • 0-95° adjustable rotation angle
  • IP54 rated enclosure
Typical Applications
The combination of high torque and proportional control makes the 8751029000 ideal for large modulating dampers in primary AHUs, outdoor air intake louvers on high-rise buildings, and pressurisation dampers in stairwells and corridors. The 0-10V feedback signal allows the BAS to verify exact damper position for commissioning and fault diagnostics, reducing call-backs and improving system reliability.
Brand new, original Schneider Electric product.
