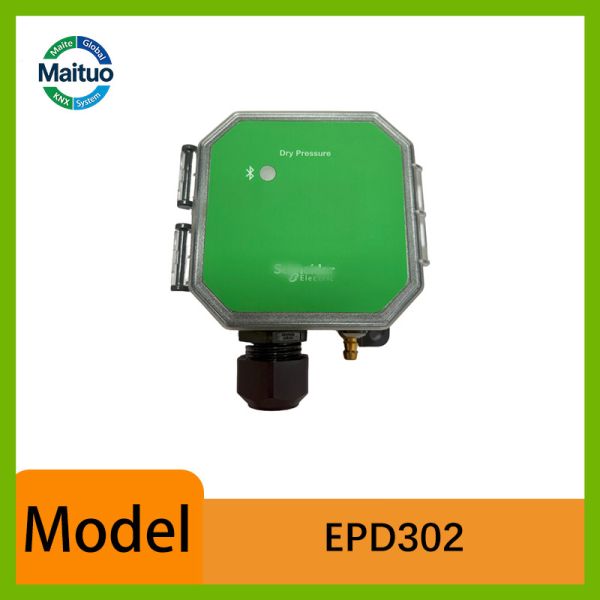

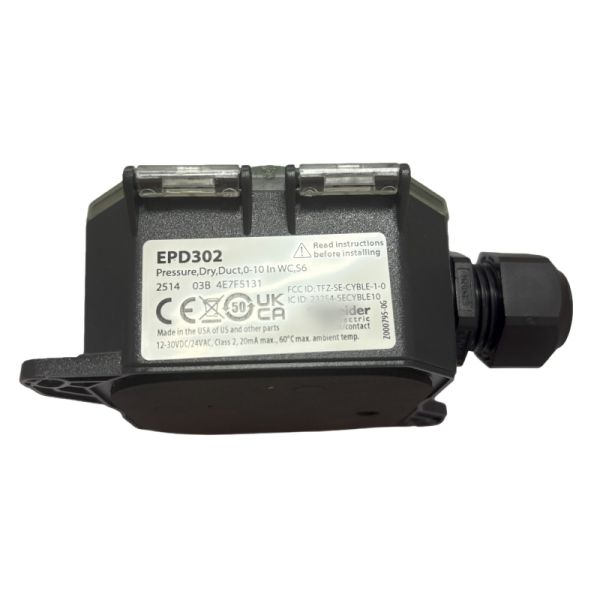

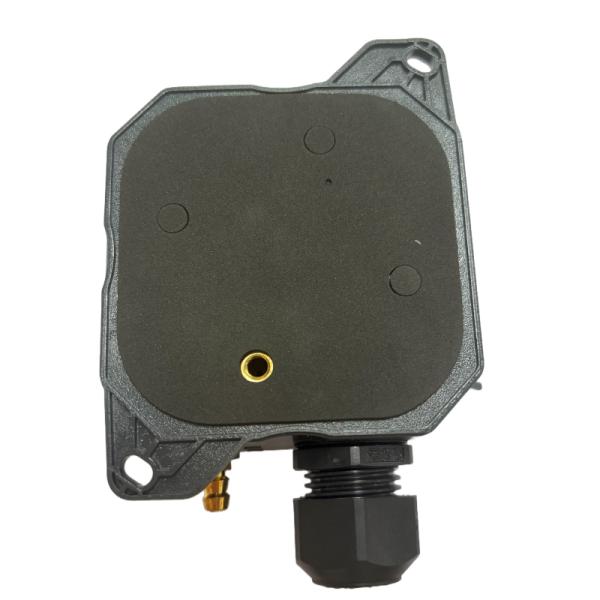

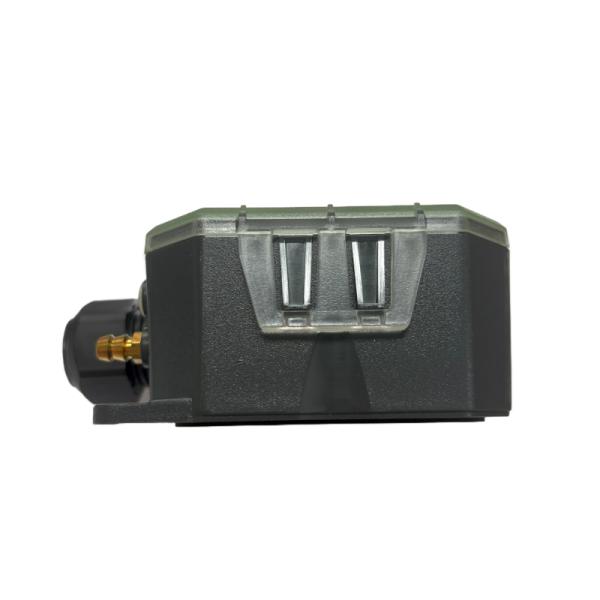

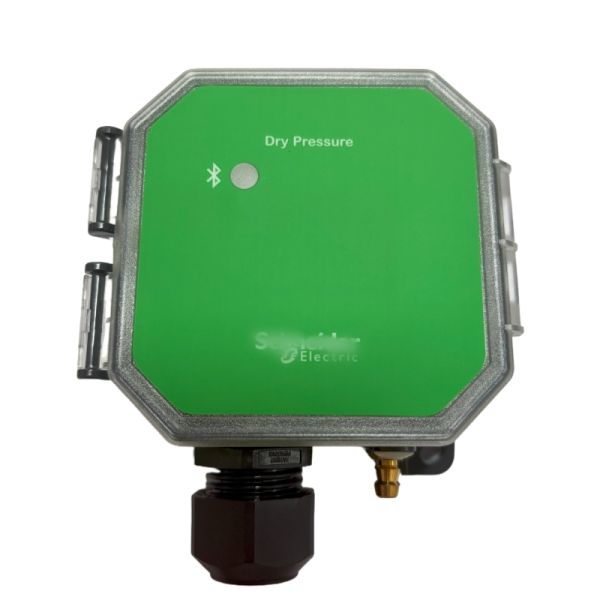

Schneider Duct Differential Pressure Sensor 0-2500Pa 0-10V EPD302 New
Schneider Duct Differential Pressure Sensor 0-2500Pa 0-10V EPD302 New
Schneider Duct Differential Pressure Sensor 0-2500Pa 0-10V EPD302 New
Schneider Duct Differential Pressure Sensor 0-2500Pa 0-10V EPD302 New
Schneider Duct Differential Pressure Sensor 0-2500Pa 0-10V EPD302 New
Schneider Duct Differential Pressure Sensor 0-2500Pa 0-10V EPD302 New
Schneider Duct Differential Pressure Sensor 0-2500Pa 0-10V EPD302 New
Schneider Duct Differential Pressure Sensor 0-2500Pa 0-10V EPD302 New
Schneider Duct Differential Pressure Sensor 0-2500Pa 0-10V EPD302 New
Schneider Duct Differential Pressure Sensor 0-2500Pa 0-10V EPD302 New
Specifications
Brand Name :
Schneider
Model Number :
EPD302
Certification :
CE RoHS
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Part Name :
Pressure Sensor
Product Type :
Corner and mast fastening
Usage :
Weather, Air Quality
Compatible Range :
KNX weather station (Basic V2)
Power Consumption :
Less than 1W
Measurement Range :
0-100 units
Communication Interface :
RS485
Rated Operational Voltage :
230 V AC +10 % -15 % at 50/60 Hz
Description
Schneider Duct Differential Pressure Sensor 0-2500Pa 0-10V EPD302 New
Product Overview

The Schneider Electric Duct Differential Pressure Sensor EPD302 measures 0-2500 Pa differential pressure with a 0-10V output, purpose-built for high-pressure duct monitoring, filter banks, heat recovery units, and VAV system static pressure control in commercial HVAC applications.

Technical Specifications
Specification Details
Part Number EPD302
Measurement Range 0 to 2500 Pa
Output Signal 0-10V DC
Power Supply 24 VAC/VDC
Accuracy ±2% full scale
Enclosure Rating IP54 duct/wall-mount
Pressure Connections Dual push-fit fittings
Key Features
  • High-pressure range suitable for demanding HVAC applications
  • Robust IP54 rated enclosure for duct or wall mounting
  • Standard 0-10V DC output signal for easy integration
  • Dual push-fit pressure connections for simple installation
  • ±2% full scale accuracy for reliable measurements
Applications

The higher 2500 Pa range is specifically designed for coarse filter banks, HEPA filter stages, heat exchangers, and energy recovery ventilators (ERVs) where pressure drops are significantly larger than in standard supply air ducts. Also used in pressurized stairwells and smoke control systems. Essential for filter life management programs that minimize unplanned maintenance shutdowns.

Brand new, original Schneider Electric product
