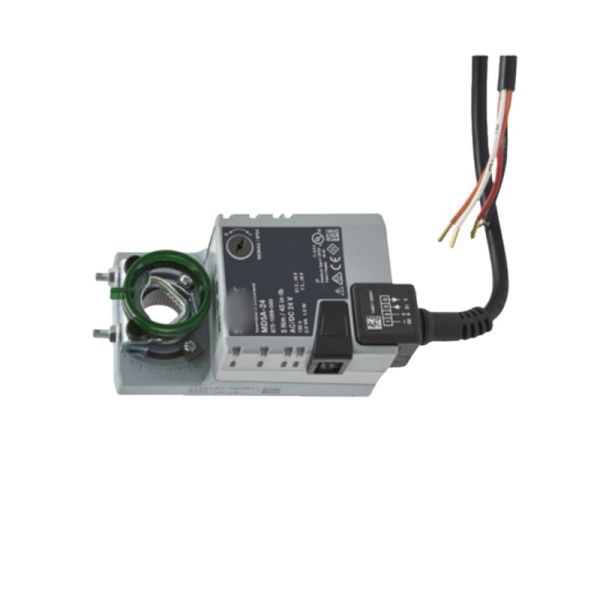

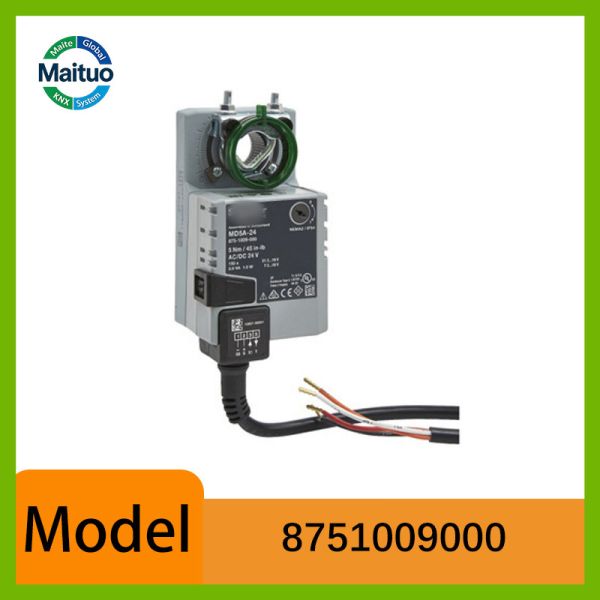

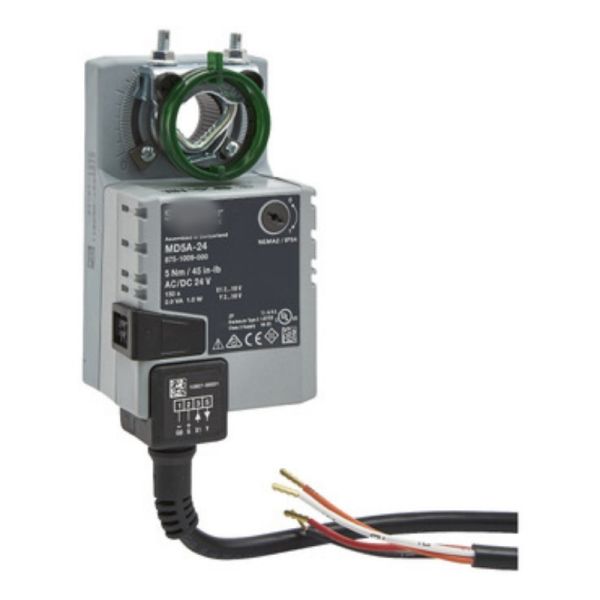

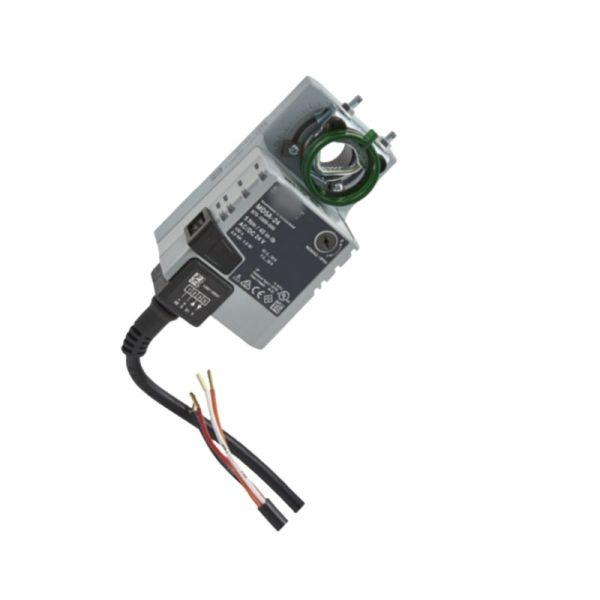

8751009000 Schneider Non-Spring Return Damper Actuator 24V 5Nm 0-10V New
8751009000 Schneider Non-Spring Return Damper Actuator 24V 5Nm 0-10V New
8751009000 Schneider Non-Spring Return Damper Actuator 24V 5Nm 0-10V New
8751009000 Schneider Non-Spring Return Damper Actuator 24V 5Nm 0-10V New
8751009000 Schneider Non-Spring Return Damper Actuator 24V 5Nm 0-10V New
8751009000 Schneider Non-Spring Return Damper Actuator 24V 5Nm 0-10V New
8751009000 Schneider Non-Spring Return Damper Actuator 24V 5Nm 0-10V New
8751009000 Schneider Non-Spring Return Damper Actuator 24V 5Nm 0-10V New
Specifications
Brand Name :
Schneider
Model Number :
8751009000
Certification :
CE RoHS
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Stroke Length :
10mm - 1000mm
Application :
Industrial Automation / Robotics / Automotive
Type :
Linear / Rotary
Power Source :
Electric / Hydraulic / Pneumatic
Control Type :
Analog / Digital / PWM
Feedback :
Potentiometer / Encoder / Hall Sensor
Mounting Options :
Flange / Clevis / Trunnion
Material :
Aluminum / Stainless Steel
Description
8751009000 Schneider Non-Spring Return Damper Actuator 24V 5Nm 0-10V New
The Schneider Electric Non-Spring-Return Damper Actuator (Part No. 8751009000) is a 24V AC non-fail-safe damper actuator with 5 Nm torque output, 0-10V analogue control, manual override, and position feedback — designed for modulating HVAC damper control in building automation systems.
Key Specifications
  • Part Number: 8751009000
  • Power Supply: 24 VAC
  • Torque: 5 Nm
  • Control Signal: 0-10V DC (proportional modulating)
  • Position Feedback: 0-10V (position signal to BAS)
  • Manual Override: Yes (clutch/push button)
  • Spring Return: No (non-fail-safe)
  • Rotation Angle: 0-90° or 0-95° (adjustable)
  • Enclosure: IP54
Applications
Ideal for modulating fresh air, return air, exhaust air, and mixed air dampers in AHUs and ventilation systems where fail-safe spring return is not required. The 5 Nm torque suits small-to-medium damper sizes. Proportional 0-10V input allows the BAS to position the damper at any angle for precise airflow control. Position feedback confirms actual damper position back to the BAS controller.
Brand new, original Schneider Electric product.
