SXWASB24X10001 SCHNEIDER SMARTX AS-B-24 BUILDING CONTROLLER NO DISPLAY NEW
SXWASB24X10001 SCHNEIDER SMARTX AS-B-24 BUILDING CONTROLLER NO DISPLAY NEW
SXWASB24X10001 SCHNEIDER SMARTX AS-B-24 BUILDING CONTROLLER NO DISPLAY NEW
SXWASB24X10001 SCHNEIDER SMARTX AS-B-24 BUILDING CONTROLLER NO DISPLAY NEW
SXWASB24X10001 SCHNEIDER SMARTX AS-B-24 BUILDING CONTROLLER NO DISPLAY NEW
SXWASB24X10001 SCHNEIDER SMARTX AS-B-24 BUILDING CONTROLLER NO DISPLAY NEW
SXWASB24X10001 SCHNEIDER SMARTX AS-B-24 BUILDING CONTROLLER NO DISPLAY NEW
SXWASB24X10001 SCHNEIDER SMARTX AS-B-24 BUILDING CONTROLLER NO DISPLAY NEW
SXWASB24X10001 SCHNEIDER SMARTX AS-B-24 BUILDING CONTROLLER NO DISPLAY NEW
SXWASB24X10001 SCHNEIDER SMARTX AS-B-24 BUILDING CONTROLLER NO DISPLAY NEW
Specifications
Brand Name :
Schneider
Model Number :
SXWASB24X10001
Certification :
CE RoHS
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Manufacturer :
Example Manufacturer
Productname :
Building Controllers
Mountingtype :
DIN Rail
Application :
HVAC, Lighting, Security Systems
Dimensions :
150mm x 100mm x 50mm
Controltype :
Programmable Logic Controller (PLC)
Description
SXWASB24X10001 SCHNEIDER SMARTX AS-B-24 BUILDING CONTROLLER NO DISPLAY NEW

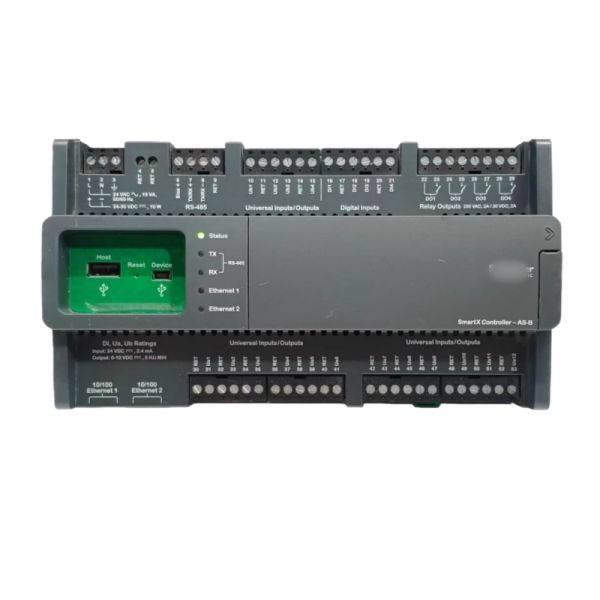

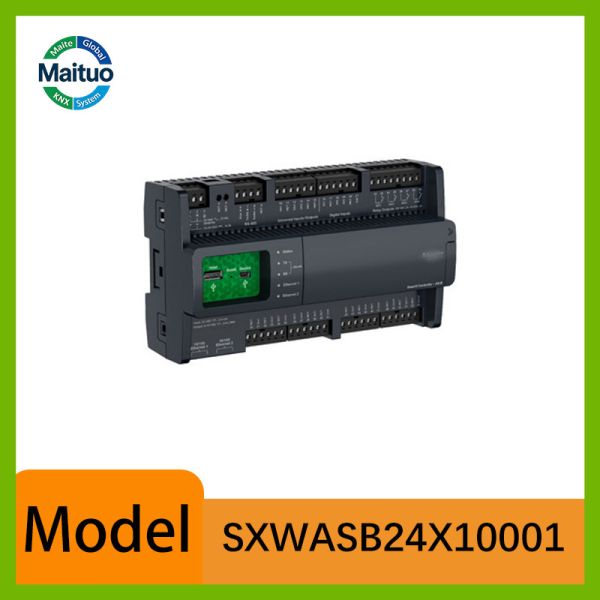

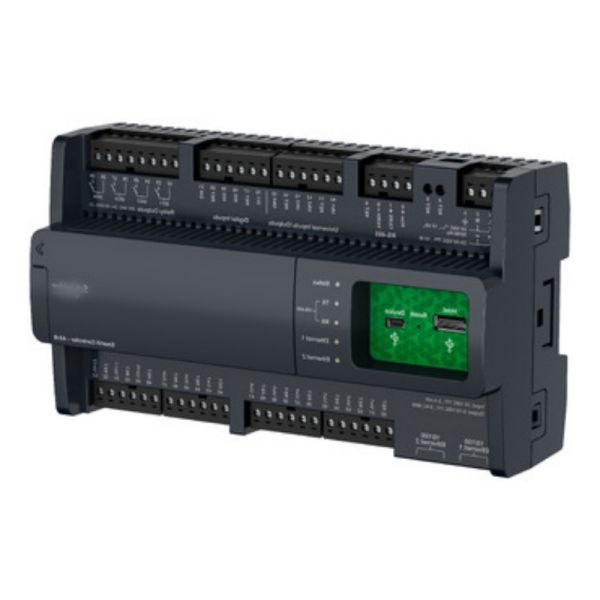

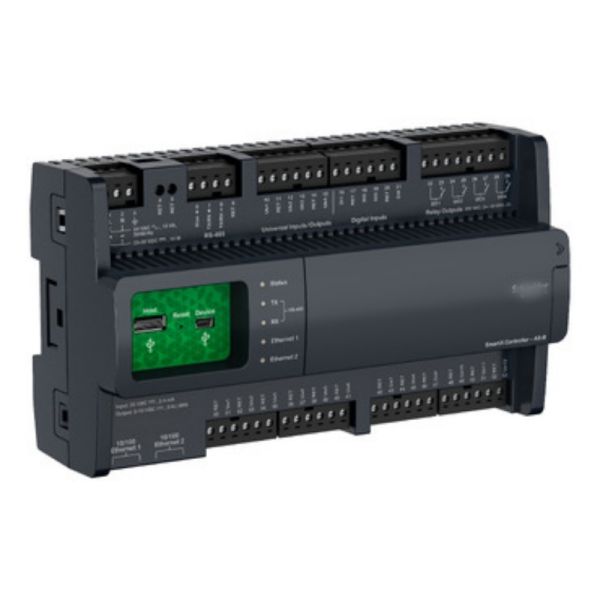

The Schneider Electric SmartX AS-B-24 Building Controller (Part No. SXWASB24X10001) is a 24-point BACnet/IP and MS/TP programmable field controller without display, designed for EcoStruxure Building Operation deployments in AHU, FCU supervision, and general building automation applications.

Key Specifications
Part Number SXWASB24X10001
Platform EcoStruxure Building Operation (SmartX)
Protocol BACnet/IP, BACnet MS/TP, Modbus RTU
I/O Points 24 (universal inputs + analogue/digital outputs)
Display None (headless; configured via EBO software)
Communication Ethernet + RS-485
Power Supply 24 VAC/VDC
Applications

The AS-B-24 is the standard workhorse controller for commercial office buildings, retail complexes, and hotel HVAC systems. 24 I/O points comfortably accommodate a single-zone AHU sequence including supply temperature reset, CO2 DCV, static pressure control, and economiser management. Headless design suits panel-mounted deployments managed remotely via EBO Workstation or cloud portal.

Brand new, original Schneider Electric product.
