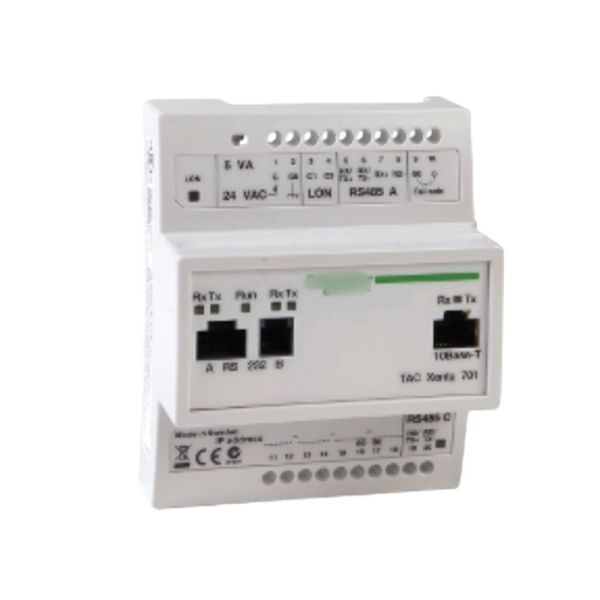

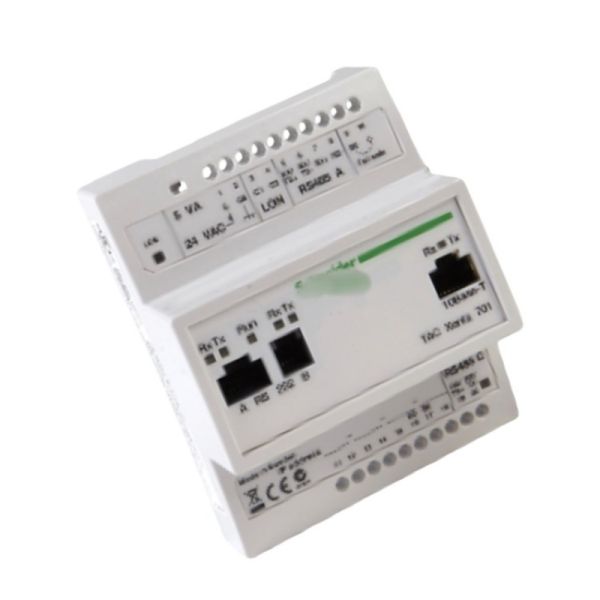

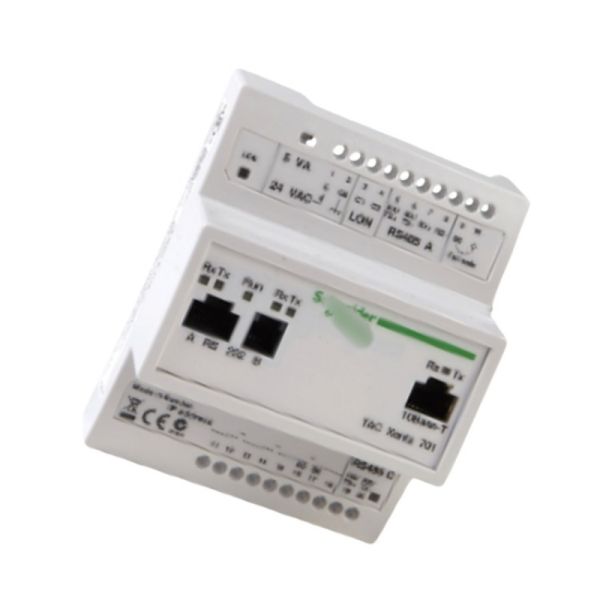

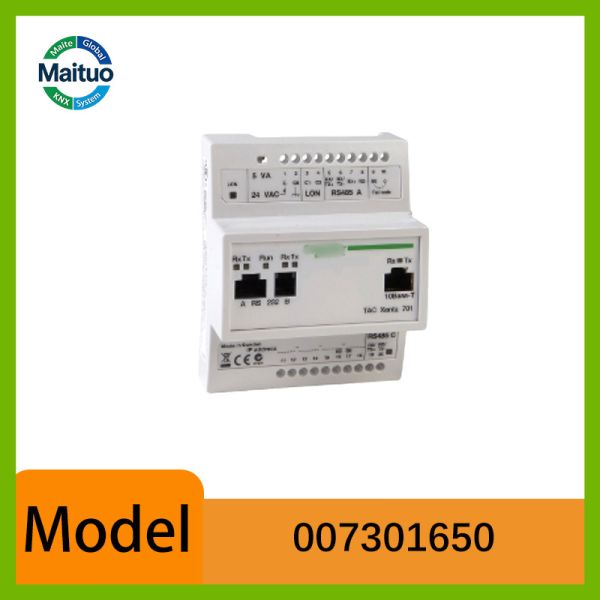

Schneider 007301650 Xenta 731 Controller Programmable Building Controller
Advanced programmable building controller designed for comprehensive building automation and HVAC control systems.
Product Specifications
- Type: Building Automation Programmable Controller (BAC / HVAC Controller)
- Model: 007301650 / TAC Xenta 731
- Power Supply: 24 VAC / 19–40 VDC
- Communication:
- Ethernet TCP/IP (Modbus TCP)
- LonWorks TP/FT-10
- RS-485 (Modbus RTU / MicroNet / I/NET)
- Embedded Web Server for remote monitoring
- Expansion: Up to 20 pcs Xenta 400 series I/O modules
- Protection: IP20
- Certification: CE
Key Features
Multi-protocol, web-based remote management, programmable logic, core controller for building management systems
Application Areas
Building Management System (BMS)
Office buildings, shopping malls, hotels, airports, railway stations
HVAC Control
AHU, FAU, chiller/boiler plants, ventilation systems
Smart Lighting & Energy Management
Public area lighting, scheduling, energy monitoring
Retrofit Projects
Replacement of legacy controllers, compatible with LonWorks / Modbus
Industrial & Data Centers
Environment monitoring, temperature/humidity control, equipment interlocking
