MTN628319 Schneider Design 8-Button KNX Smart Panel Bus Coupler Pure White RGB LED Scene HVAC Control
MTN628319 Schneider Design 8-Button KNX Smart Panel Bus Coupler Pure White RGB LED Scene HVAC Control
MTN628319 Schneider Design 8-Button KNX Smart Panel Bus Coupler Pure White RGB LED Scene HVAC Control
MTN628319 Schneider Design 8-Button KNX Smart Panel Bus Coupler Pure White RGB LED Scene HVAC Control
MTN628319 Schneider Design 8-Button KNX Smart Panel Bus Coupler Pure White RGB LED Scene HVAC Control
MTN628319 Schneider Design 8-Button KNX Smart Panel Bus Coupler Pure White RGB LED Scene HVAC Control
Specifications
Customization :
Personalized settings per guest profile
Payment Terms :
T/T
Integrationprotocols :
Supports KNX, BACnet, Modbus
Delivery Time :
7 Days
Producttype :
Room Automation System
Certification :
CE RoHS
Compatibility :
Integrates with HVAC, lighting, curtains, and entertainment systems
Packaging Details :
Carton
Installation Type :
Wall-mounted or embedded
Place of Origin :
EU
Curtaincontrol :
Automated curtain and blind control
MOQ :
5
Control Modes :
Automatic KNX sensor linkage
Model Number :
MTN628319
Brand Name :
Schneider
Description
MTN628319 Schneider Design 8-Button KNX Smart Panel Bus Coupler Pure White RGB LED Scene HVAC Control
Product Overview

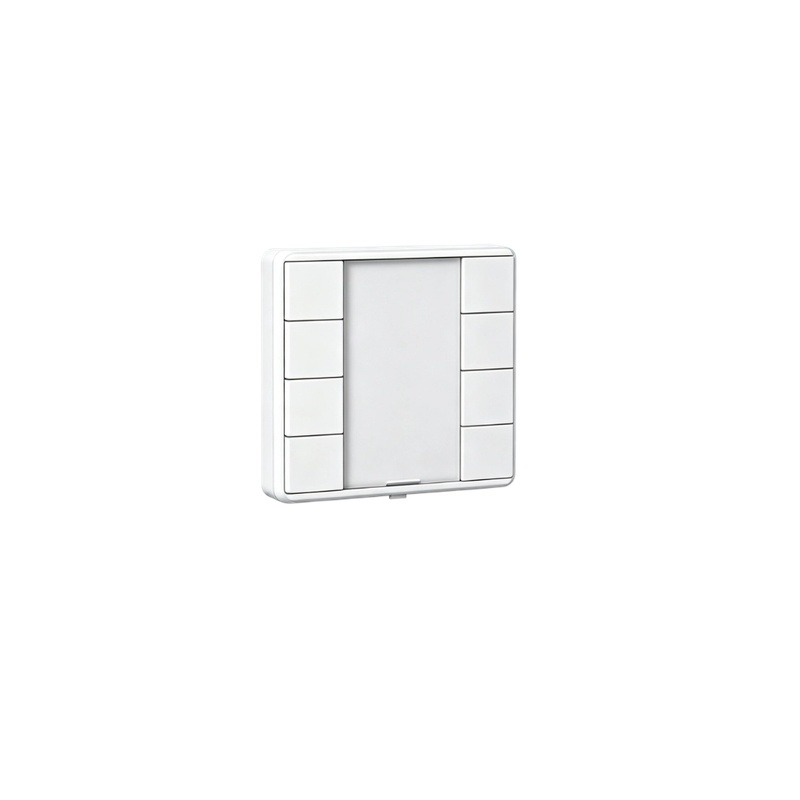

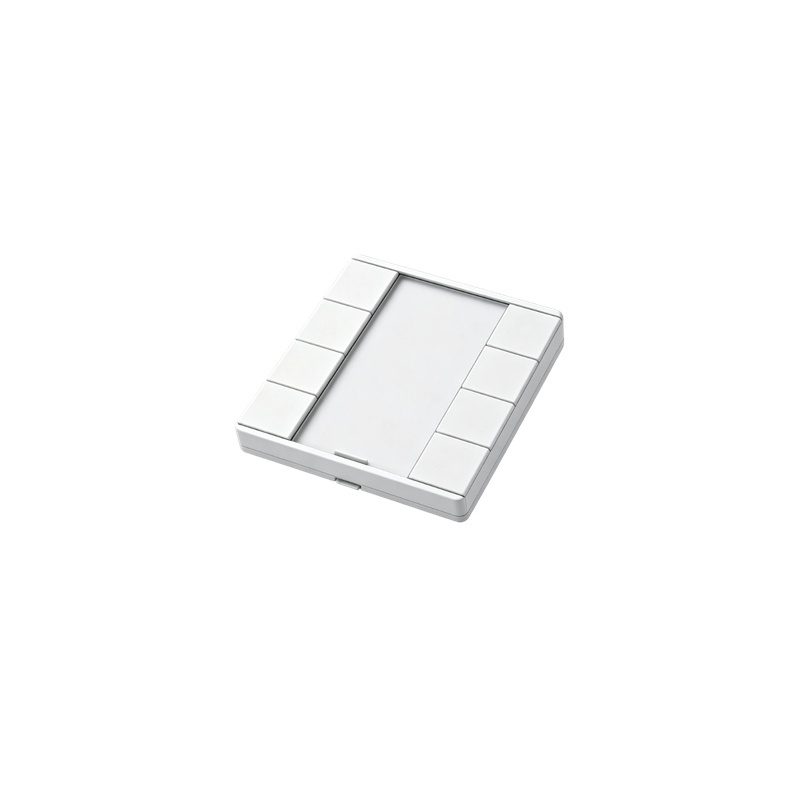

The Schneider Electric MTN628319 Design Series 8-Button KNX Smart Panel features eight programmable buttons with integrated bus coupler. This pure white finish panel is designed for comprehensive building automation including lighting, blinds, HVAC, and scene control applications.

Technical Specifications
Feature Specification
Buttons 8 programmable
KNX Interface Integrated TP bus coupler
Objects Up to 256
Functions Switching, dimming, shutter, scene, value sender
LED Indicators 8 x RGB (configurable)
Button Actions Short/long/double press
Bus Current <10mA
Power Supply KNX bus powered
Labeling Removable paper labels with cover
Housing Material Thermoplastic
Surface Finish Pure white, matte
Faceplate Dimensions 55x55mm European
Operating Temperature -5°C to +45°C
Programming Software ETS5/ETS6
Certifications CE, KNX, IEC 60669-1
Compatibility Design/S-flex frames
Key Features
  • Eight fully programmable buttons with RGB LED feedback
  • Integrated KNX bus coupler for direct connectivity
  • Multiple button press actions (short, long, double)
  • Comprehensive control functions including switching, dimming, and shutter control
  • Scene and value sending capabilities
  • Low power consumption (<10mA bus current)
  • Professional pure white matte finish
  • Easy labeling system with removable paper labels
Application Scenarios

Ideal for upscale residential buildings, hotel room automation, and commercial facility control systems. Individual buttons can be programmed for specific lighting zones, blind control operations, HVAC system management, and scene activation. Seamlessly integrates with KNX sensors and other building automation components for comprehensive automated control solutions.
