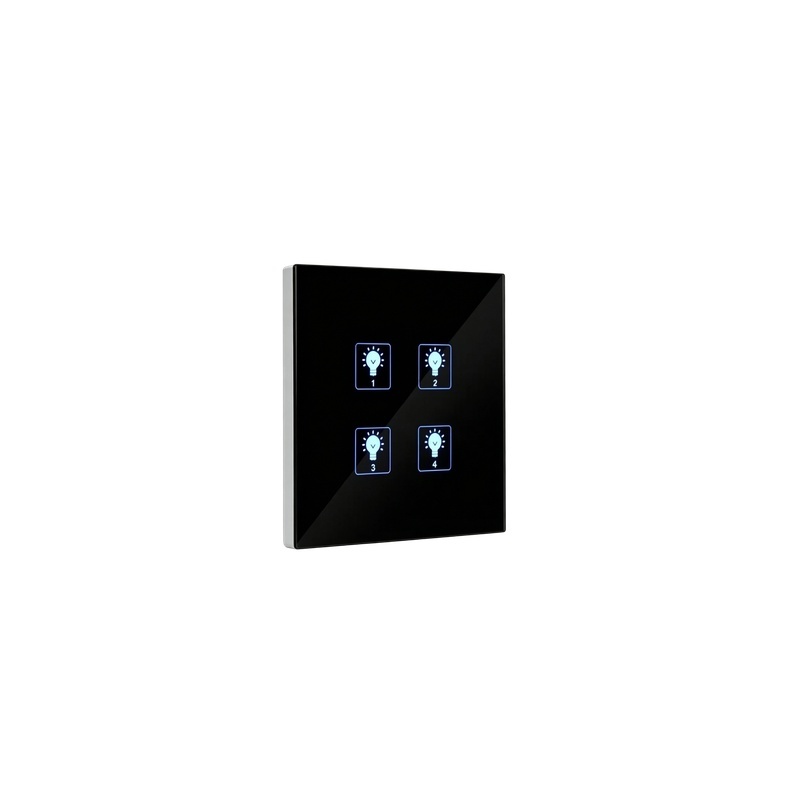

HG-CK4M3 4-Key Smart Touch Panel Gray 86-Type Guest Room Lighting Bus Control Panel Building Automation
HG-CK4M3 4-Key Smart Touch Panel Gray 86-Type Guest Room Lighting Bus Control Panel Building Automation
HG-CK4M3 4-Key Smart Touch Panel Gray 86-Type Guest Room Lighting Bus Control Panel Building Automation
HG-CK4M3 4-Key Smart Touch Panel Gray 86-Type Guest Room Lighting Bus Control Panel Building Automation
HG-CK4M3 4-Key Smart Touch Panel Gray 86-Type Guest Room Lighting Bus Control Panel Building Automation
HG-CK4M3 4-Key Smart Touch Panel Gray 86-Type Guest Room Lighting Bus Control Panel Building Automation
Specifications
Model Number :
HG-CK4M3
Communication Protocols :
Wi-Fi, Zigbee, Z-Wave, or RF
Delivery Time :
7 Days
Loadtype :
Resistive and Inductive
Packaging Details :
Carton
MOQ :
5
Power Supply Mode :
KNX bus power supply (DC 24V)
Payment Terms :
T/T
System Compatibility :
KNX TP1 standard protocol compatible
Certification :
CE RoHS
Controlmethod :
Electrical and Manual Override
Place of Origin :
EU
User Interface :
Customizable UI, Multi-language Support
Producttype :
Room Automation System
Description
HG-CK4M3 4-Key Smart Touch Panel Gray 86-Type Guest Room Lighting Bus Control Panel

The HEGUANG HG-CK4M3 is a 4-key smart touch panel designed for guest room and lighting control applications in building automation systems. This elegant gray panel features a standard 86-type form factor compatible with Chinese wall box installations, making it ideal for hotel guest room management, residential smart home systems, and commercial lighting control.

Product Overview

The capacitive touch-sensitive buttons provide responsive, reliable operation with LED backlight indication for status feedback. This professional-grade control panel delivers intuitive user experience with robust performance in various building automation scenarios.

Technical Specifications
Brand Chinese building intelligence brand
Buttons 4 programmable capacitive touch keys
Display LED backlight per button with customizable colors
Protocol RS-485 bus communication (Modbus RTU compatible)
Address Range 1-255 programmable addresses
Baud Rate 9600/19200 bps configurable
Input Voltage DC 12-24V
Power Consumption <2W typical
Output 4-channel dry contact or 0-10V output (configurable)
Load Capacity 3A @ 250VAC per channel (relay output)
Touch Sensitivity Adjustable (3 levels)
Material PC/ABS flame-retardant (UL94 V-0)
Color Gray (灰色)
Form Factor 86-type standard (86mm x 86mm)
Mounting Flush-mount in standard 86-type wall box
Operating Temperature -10°C to +55°C
Storage Temperature -20°C to +70°C
Humidity 10% to 90% RH non-condensing
Protection IP20 (indoor use)
Certifications CCC, CE compliant
Weight Approximately 120g
Application Scenarios

The HG-CK4M3 smart touch panel is widely used in hotel guest room management systems for controlling room lighting, curtain motors, air conditioning, and scene settings. It integrates with hotel management systems (RCU - Room Control Unit) to provide guests with intuitive control over room environment.

The 4 buttons can be programmed for different functions: main light on/off, bedside reading light dimming, curtain open/close, and preset scene activation (e.g., sleep mode, welcome mode).

The 86-type form factor ensures easy installation in standard Chinese wall boxes without modification. Also suitable for residential smart home projects, office meeting room lighting control, and commercial building automation where simple, reliable touch-panel control is required.
