60W Portable Laser Fume Extractor with 90.99% Filtration Efficiency for Small Laser Applications
60W Portable Laser Fume Extractor with 90.99% Filtration Efficiency for Small Laser Applications
60W Portable Laser Fume Extractor with 90.99% Filtration Efficiency for Small Laser Applications
60W Portable Laser Fume Extractor with 90.99% Filtration Efficiency for Small Laser Applications
60W Portable Laser Fume Extractor with 90.99% Filtration Efficiency for Small Laser Applications
60W Portable Laser Fume Extractor with 90.99% Filtration Efficiency for Small Laser Applications
60W Portable Laser Fume Extractor with 90.99% Filtration Efficiency for Small Laser Applications
60W Portable Laser Fume Extractor with 90.99% Filtration Efficiency for Small Laser Applications
Specifications
Brand Name :
KNOKOO
Model Number :
FES060
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1000
Delivery Time :
5-8 work days
Packaging Details :
28*28*38CM/box
Nane :
laser Fume Extractors
Model :
FES060
Power :
60W
Vac :
AC220V 50Hz
use :
small laser, DIY process Maintenance of electronic products Smart phone maintenance
Filtration Efficiency :
0.3μm 90.97%
Description

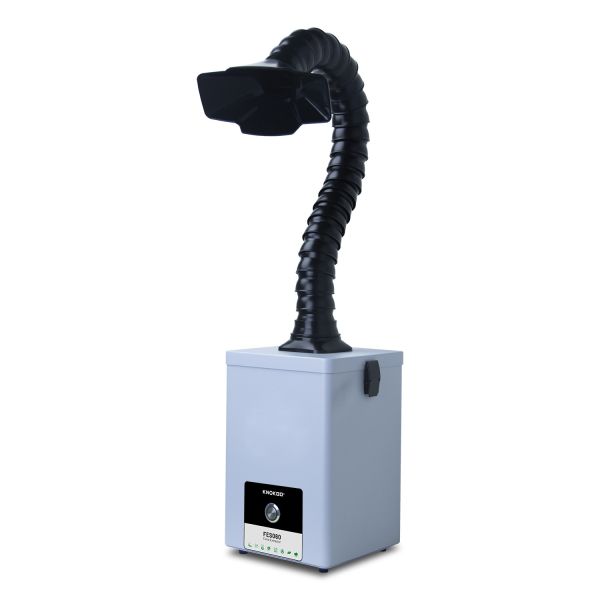

KNOKOO FES060 60W Portable Laser Fume Extractor
An efficient air purification solution for low-power laser applications including mobile phone repair and DIY laser work. Eliminates harmful fumes and odors with 90.99% filtration efficiency for particles as small as 0.3μm.
Key Features & Benefits
Two-Stage Precision Filtration System
  • Pre-Filter: Captures PM60 particles (laser cutting metal shavings, engraving dust) - replace every 10-60 days
  • Main Filter: Coconut shell activated carbon efficiently removes smoke, toxic gases, and odors - replace every 3-7 months
  • Benefits: Individual filter replacement reduces consumable costs; 90.99% filtration efficiency
360° Rotating Fume Hood
  • Flexible angle adjustment for precise smoke source targeting
  • Two styles available: diamond head (concentrated extraction) and round head (large-area extraction)
  • ∅50mm extraction port with included tubing - tool-free installation
Energy Efficient & Quiet Operation
  • 60W power consumption - cost-effective for daily 8-hour operation
  • Less than 50dB noise level - quieter than library page turning
  • AC220V 50Hz voltage compatibility
Compact & Portable Design
  • Dimensions: 185*185*300mm - similar to desktop storage box
  • Lightweight: Only 4.3kg for easy mobility
  • No fixed installation required - ready to use out of the box
Technical Specifications
Model FES060 Solder Fume Extractor
Color White
Noise Level <50dB
Filtration Efficiency 90.99% for 0.3μm particles
Voltage AC220V 50Hz
Power 60W
Air Volume 160m³/h
Filter Stages 2 Stage
Port Diameter ∅50mm
Dimensions 185*185*300mm
Weight 4.3kg
Package Contents
  • 1 * Fume Extractor
  • 1 * Smoking Pipe
  • 1 * Smoking Cover
  • 1 * Primary Filter Cotton
  • 1 * Main Filter
  • 1 * Power Cord
  • 1 * Manual
Applications
Laser Marking
Effectively absorbs and filters smoke and dust produced during laser marking processes
Laser Engraving
Maintains air quality in engraving areas to protect operator health
Laser Cutting
Filters smoke and particles from laser cutting operations for safe working environment
Welding & Soldering
Purifies smoke and harmful gases from soldering iron operations and laser marking dust
Frequently Asked Questions
Is this fume extractor compatible with my laser equipment?
Yes, the FES060 is designed as a universal type compatible with all brands of low-power laser equipment including laser marking machines, engraving machines, and small laser cutting machines.
Is installation complicated for beginners?
Not at all! Installation takes only 3 simple steps and less than 5 minutes. Connect the tubing, install filters, and plug in power - no experience required.
Is the 160m³/h airflow sufficient for laser applications?
The 160m³/h airflow is specifically designed for small laser scenarios with low smoke levels. For high-concentration smoke scenarios, consult customer service for high-power model recommendations.
How do I know when to replace filters?
Pre-filter: Replace when noticeably dirty (10-60 days). Main filter: Replace when you smell odors or notice decreased smoke absorption (3-7 months). No internal cleaning required.
Does this product have CE certification?
Yes, the FES060 has CE certification and meets EU safety standards for both home use and small factory workshops.
Warranty & Support
7-day return policy for quality issues • 1-year warranty on main unit (filters are consumables) • 24-hour customer service response • Factory tested for performance standards
