Oil In Water Sensor – Fluorescence-Based, RS485 Modbus, Auto-Clean Brush, For Wastewater & Environmental Monitoring
Oil In Water Sensor – Fluorescence-Based, RS485 Modbus, Auto-Clean Brush, For Wastewater & Environmental Monitoring
Oil In Water Sensor – Fluorescence-Based, RS485 Modbus, Auto-Clean Brush, For Wastewater & Environmental Monitoring
Oil In Water Sensor – Fluorescence-Based, RS485 Modbus, Auto-Clean Brush, For Wastewater & Environmental Monitoring
Specifications
Brand Name :
KaiNaFu
Model Number :
KNF-1012Pro
Place of Origin :
Shenzhen
MOQ :
1 pieces
Payment Terms :
T/T
Supply Ability :
500 pieces+One month
Delivery Time :
7~15 working days
Packaging Details :
Eco-friendly paper box
Working principle :
Fluorescence method
Excitation wavelength :
360nm(Customizable 254nm)
range :
(0-150)mg/L
Resolution rate :
0.01mg/L
Description

Oil In Water Sensor – Fluorescence-Based, RS485 Modbus, Auto-Clean Brush, For Wastewater & Environmental Monitoring


1. Product Introduction

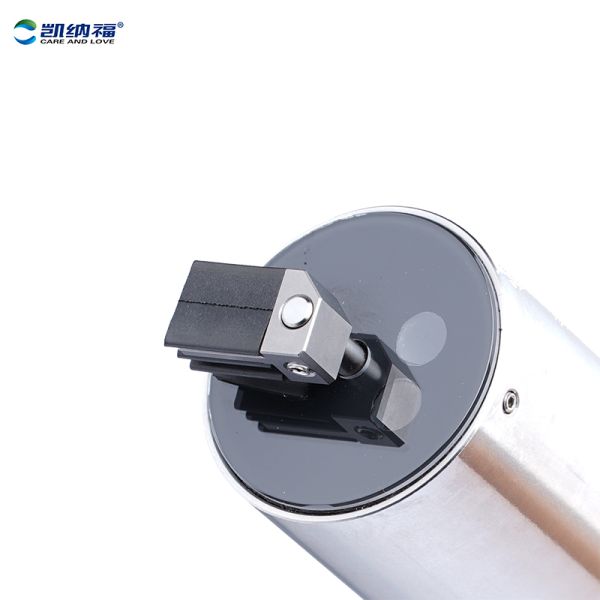

The KNF-1012 intelligent electrode for oil in water adopts RS485 communication interface and standard Modbus protocol, with its own cleaning brush. Based on coherent fluorescence detection technology, it has good selectivity and strong anti-interference ability. Data analysis software is randomly included, featuring functions such as calibration, recording, analysis, and diagnosis. It can be applied to the monitoring of water body environments such as river sections, lakes and reservoirs, and coastal areas, as well as in sewage treatment, wastewater discharge, process control, petrochemicals, port shipping, and oil leakage monitoring, etc.

Oil In Water Sensor – Fluorescence-Based, RS485 Modbus, Auto-Clean Brush, For Wastewater & Environmental Monitoring
2. Usage environment
Working voltage: 12/24V Temperature: (0-60) ℃ Pressure: (0-3) bar;


3. Technical indicators


Working principle

Fluorescence method

Excitation wavelength

360nm(Customizable 254nm)

Detection wavelength

460nm

Measurement range

(0-150)mg/L

Resolution rate

0.01mg/L

Measurement accuracy

士5% or 0.2mg/L

Repeatability

<2% or 0.1mg/L

Drift

士3%

Detection limit

0.3mg/L

Linear error

士5%

Response time

<10s

Communication interface

RS485,Standard Modbus protocol

Size specification

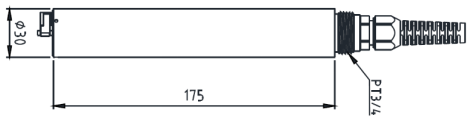

D30mm,L175mm,Cable 3 meters (customizable),460g

Working environment

(0-60)℃ ,(0-3)bar

Working voltage

12V/24V DC,0.5W

Oil In Water Sensor – Fluorescence-Based, RS485 Modbus, Auto-Clean Brush, For Wastewater & Environmental Monitoring











4. Introduction to the Water Quality Monitoring Software Cloud Platform (DATAIO)

All the water quality/water level related equipment produced by our company can be connected to the Kainafu water quality monitoring cloud platform! It can realize the reception, display, statistics, automatic analysis, storage, download and release of monitoring data from various water quality sensor devices. Generate visual calculation result charts intuitively on the display terminal of the monitoring management center.


▪ Desktop WEB page (login address: ion.onetestinc.com. Contact the product owner for a trial account to obtain it)
▪ Apple APP, Android APP
▪Wechat Official Account/Mini Program

Oil In Water Sensor – Fluorescence-Based, RS485 Modbus, Auto-Clean Brush, For Wastewater & Environmental Monitoring

Oil In Water Sensor – Fluorescence-Based, RS485 Modbus, Auto-Clean Brush, For Wastewater & Environmental Monitoring
