Specifications
Brand Name :
KaiNaFu
Model Number :
KNF-1321
Place of Origin :
Shenzhen
MOQ :
1 pieces
Payment Terms :
T/T
Supply Ability :
200 pieces+One month
Delivery Time :
5-10 Working day
Packaging Details :
Eco-friendly paper box
Measurement types :
Flow velocity, water level, flow rate
Measurement range :
0. 1-20m/s, 0.1-40m
Digital interface :
RS485
Working voltage :
12-24V
Description

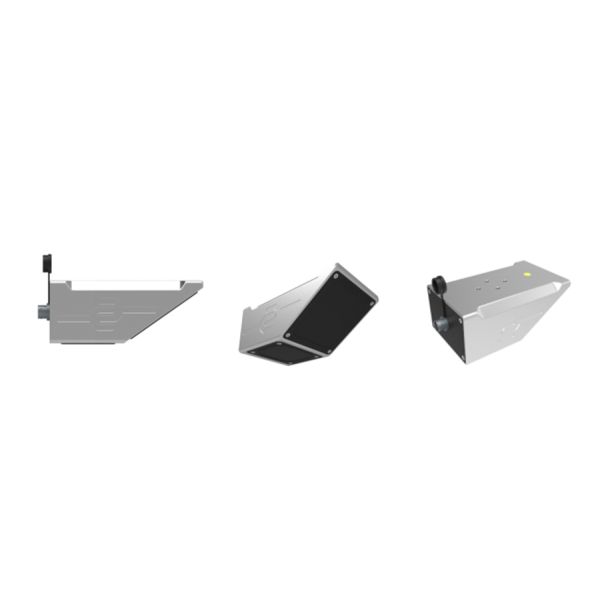

The KNF-1321 is a radar flowmeter module that integrates liquid level measurement and flow rate measurement based on microwave technology. It can be used for non-contact flow measurement in open channels, rivers, irrigation canals, underground drainage networks, flood warning and other occasions. This product features low power consumption, compact size, high reliability and easy maintenance. The measurement process is not affected by factors such as temperature, sediment, river pollutants, and floating objects on the water surface. Among them, the ranging radar and flow rate radar are respectively default configured to be compatible with ASCII and MODBUS protocols at the factory, and can switch protocol modes according to corresponding instructions by themselves.

RS485 Wireless Radar Water Level Sensor Transmitter 12V-24V MODBUS Protocol

Product features

(1). Non-contact measurement, combined with cross-sectional parameters to calculate flow rate, is not affected by wind, temperature, haze, sediment, floating objects on the water surface, etc.
(2). It is applicable to various measurement conditions and can output measurement data of flow velocity, water level and flow rate.
(3). Low power consumption, compact size, high reliability, and easy maintenance;

Power supply

Working voltage

12-24V

Working current

110mA

Working temperature

-45℃/80℃

Flow velocity radar sensor

Measurement range

0. 1-20m/s

Measurement accuracy

±0.01m/s

Resolution

0.01m/s

Digital interface

RS485

Antenna Angle

12deg

Transmission frequency

24GHz

Baud rate

9600bps

Identification of flow velocity direction

Bidirectional automatic identification

Water level radar sensor

Measurement range

0.1-40m

Measurement accuracy

±2

Resolution

1

Digital interface

RS485

Antenna Angle

10deg

Transmission frequency

80GHz
