Submersible Ultrasonic Water Level Probe Sensor 15V Customizable
Submersible Ultrasonic Water Level Probe Sensor 15V Customizable
Submersible Ultrasonic Water Level Probe Sensor 15V Customizable
Submersible Ultrasonic Water Level Probe Sensor 15V Customizable
Specifications
Brand Name :
KaiNaFu
Model Number :
KNF-131
Place of Origin :
Shenzhen
MOQ :
1pieces
Payment Terms :
T/T
Supply Ability :
200 pieces+One month
Delivery Time :
7-15 Working day
Packaging Details :
Eco-friendly paper box
Measurement range :
0-200mH2O(customizable for 0-5 meters, 0-10 meters, etc.)
Measurement accuracy :
0.25% FS, maximum 0.5% FS
Signal output :
4-20mA. 0-5V, RS485 is optional
Power supply :
15-36DCV
Description

Submersible Level Gauge Features An RS485 Output Ultrasonic Principle And Is Designed To Prevent Radio Frequency And Lightning Strikes

The KNF-131 level transmitter uses high-precision diaphragm sensitive components imported from the United States and high-performance conversion circuits. Its unique sealing process ensures that the product can be used reliably and stably for a long time in underwater and other liquid media.

Submersible Ultrasonic Water Level Probe Sensor 15V Customizable

Main features
It has a wide measurement range, high precision and good long-term stability
Fully fixed structure, resistant to shock and vibration
Radio frequency and lightning protection design
Overvoltage and reverse polarity protection

Technical indicators

Product model

KNF-131

Measurement range

0-200mH2O(customizable for 0-5 meters, 0-10 meters, etc.)

Measurement accuracy

0.25% FS, maximum 0.5% FS

Signal output

4-20mA. 0-5V, RS485 is optional

Power supply

15-36DCV

Diaphragm

316L stainless steel

Cable

Waterproof and breathable cable

Protection grade

IP68(sensor), IP65(external transmitter box)

Pressure overload

Twice the full-scale pressure

Working temperature

-10 to 80 degrees

Temperature compensation

-10 to 70 degrees

Report information

Liquid level height, liquid distance, battery power, signal strength, card number

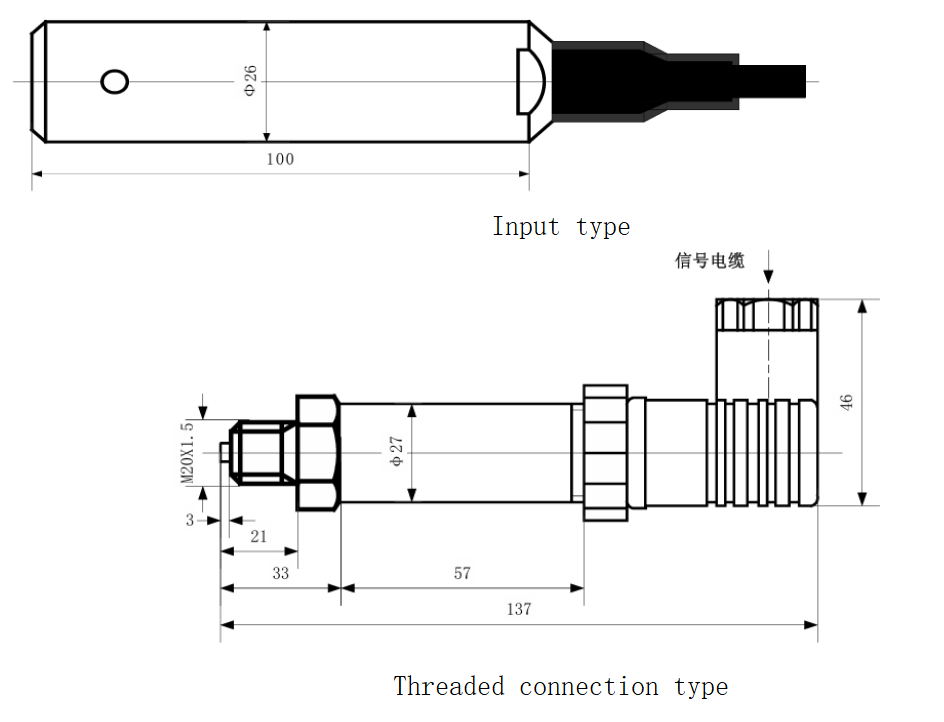

Dimension drawing

Submersible Ultrasonic Water Level Probe Sensor 15V Customizable

Introduction to the Water Quality Monitoring Software Cloud Platform (DATAIO)

All the water quality/water level related equipment produced by our company can be connected to the Kainafu water quality monitoring cloud platform! It can realize the reception, display, statistics, automatic analysis, storage, download and release of monitoring data from various water quality sensor devices. Generate visual calculation result charts intuitively on the display terminal of the monitoring management center.

▪ Desktop WEB page (login address: ion.onetestinc.com. Contact the product owner for a trial account to obtain it)
▪ Apple APP, Android APP
▪ Wechat Official Account/Mini Program

Submersible Ultrasonic Water Level Probe Sensor 15V Customizable
