Water Quality RS485 Fluorescence Chlorophyll Sensor For Aquaculture Water Quality
Water Quality RS485 Fluorescence Chlorophyll Sensor For Aquaculture Water Quality
Water Quality RS485 Fluorescence Chlorophyll Sensor For Aquaculture Water Quality
Water Quality RS485 Fluorescence Chlorophyll Sensor For Aquaculture Water Quality
Water Quality RS485 Fluorescence Chlorophyll Sensor For Aquaculture Water Quality
Water Quality RS485 Fluorescence Chlorophyll Sensor For Aquaculture Water Quality
Specifications
Brand Name :
KaiNaFu
Model Number :
KNF-1009/A
Place of Origin :
Shenzhen
MOQ :
1 pieces
Payment Terms :
T/T
Supply Ability :
500 pieces+One month
Delivery Time :
5-10 Working day
Packaging Details :
Eco-friendly paper box
Principle :
Fluorescence method
Range :
0~400ug/L or 0~100RFU
Resolution :
0.01 ug/L
Precision :
±5% OR 0.5ug/L Take the larger one
Protection grade :
IP68
Sensor interface :
Supports RS-485 and Modbus protocols
Description

1.Product Overview
The KNF-1009/A chlorophyll digital sensor adopts leading optical technology, features an automatic cleaning brush, and has an integrated design. It is characterized by high-efficiency power management, a robust structure, stable sensor performance, and requires no maintenance or frequent calibration. It can be used online for a long time.
It can be widely applied to the monitoring, investigation and research of algae and phytoplankton conditions in scenarios such as river, lake, pond, ocean investigation, aquaculture and drinking water sources.

Water Quality RS485 Fluorescence Chlorophyll Sensor For Aquaculture Water Quality
Sensor features
Advanced fluorescence sensing technology
It is equipped with an automatic cleaning brush to prevent contamination and eliminate bubbles
Sapphire material has a more stable light-conducting structure and performance
The Shuyu sensor, with RS-485 output, supports MODBUS and enables continuous online monitoring, allowing for real-time control of water quality dynamics

Water Quality RS485 Fluorescence Chlorophyll Sensor For Aquaculture Water Quality

1.Technical indicators

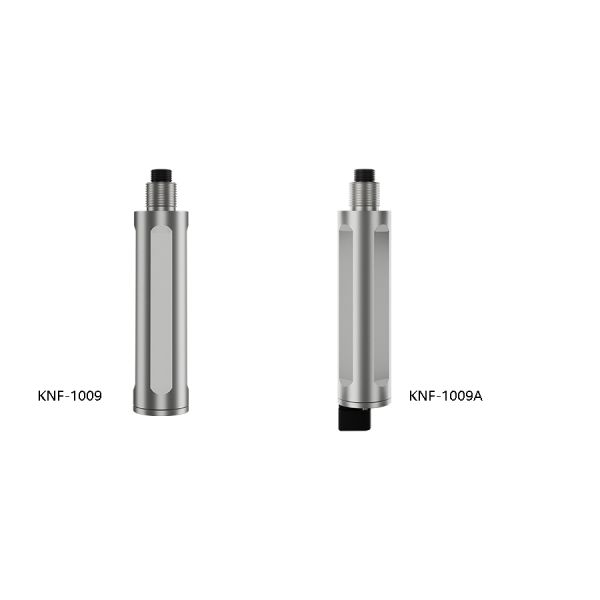

Name

KNF-1009 chlorophyll sensor

KNF-1009A Self-cleaning chlorophyll sensor

Principle

Fluorescence method

Range

0~400ug/L or 0~100RFU

Resolution

0.01 ug/L

Precision

±5% OR 0.5ug/L Take the larger one

Protection grade

IP68

Maximum operating pressure

6bar

3 bar

Temperature range

0 ~ 50℃(不结冰)

Sensor interface

Supports RS-485 and Modbus protocols

Power supply information

DC 12~24V

Self-cleaning system

no

Integrated self-cleaning brush

Assembly

Input type

Probe cable length

5 meters (default), customizable

Sensor material

Stainless steel

Calibration

Zero-point, one-point or two-point calibration

5. Introduction to the Water Quality Monitoring Software Cloud Platform (DATAIO)

All the water quality/water level related equipment produced by our company can be connected to the Kainafu water quality monitoring cloud platform! It can realize the reception, display, statistics, automatic analysis, storage, download and release of monitoring data from various water quality sensor devices. Generate visual calculation result charts intuitively on the display terminal of the monitoring management center.

▪ Desktop WEB page (login address: ion.onetestinc.com. Contact the product owner for a trial account to obtain it)
▪ Apple APP, Android APP
▪Wechat Official Account/Mini Program

Water Quality RS485 Fluorescence Chlorophyll Sensor For Aquaculture Water Quality

Water Quality RS485 Fluorescence Chlorophyll Sensor For Aquaculture Water Quality
