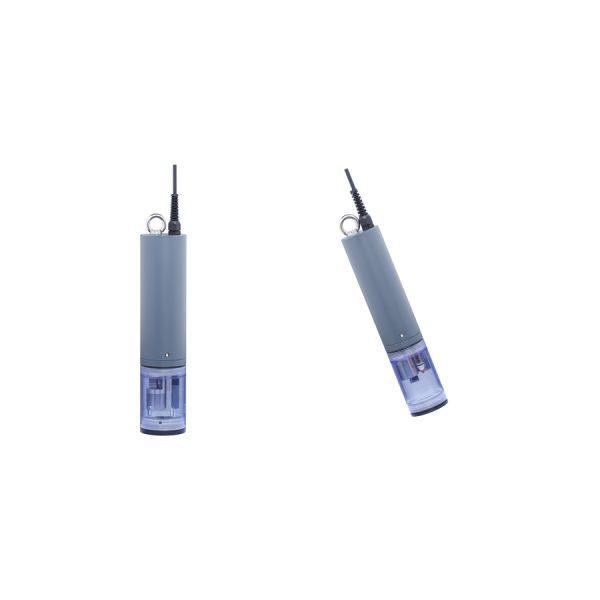

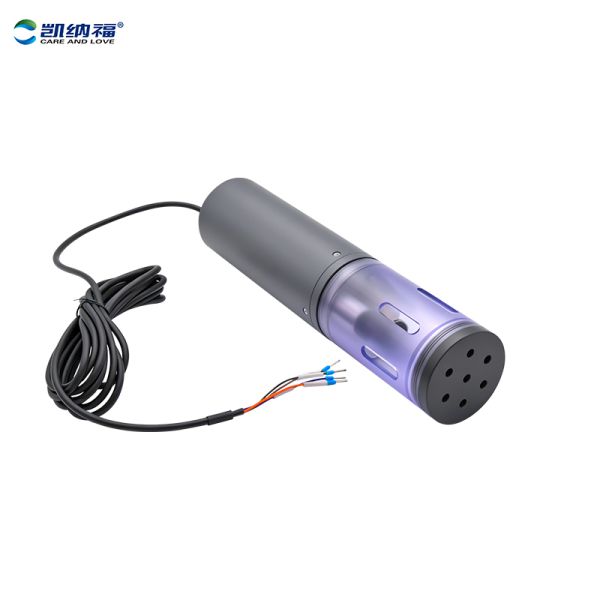

Multi Parameter Electrode Iot Water Quality Sensor Customized For Water Analysis
Multi Parameter Electrode Iot Water Quality Sensor Customized For Water Analysis
Specifications
Brand Name :
KaiNaFu
Model Number :
KNF-2100Pro
Place of Origin :
Shenzhen
MOQ :
1 pieces
Payment Terms :
T/T
Supply Ability :
500 pieces+One month
Delivery Time :
10-15 work days
Packaging Details :
Eco-friendly paper box
Measurement types :
Water level, temperature, pH, ORP, electrical conductivity, TDS, dissolved oxygen, turbidity, oil in water, ammonium ions, potassium ions, nitrate, chloride ions, fluoride ions, etc
Response time :
30s
Calibration cycle :
One to two months
Communication :
RS485, standard Modbus protocol
Description

Multi-parameter Water Quality Sensor Can Be Combined And Customized With Electrodes Of Different Diameters According To The Measurement Parameter Requirements


1.Overview
The multi-parameter water quality sensor is designed for freshwater applications such as groundwater and surface water. It can be fixedly installed with multiple water quality sensors (monitoring factors: water level, temperature, pH, ORP, conductivity, TDS, dissolved oxygen, turbidity, oil in water, ammonium ions, potassium ions, nitrate, chloride ions, fluoride ions, etc.). It adopts RS485 interface and standard Modbus protocol, with low power consumption. Data analysis software is randomly included, featuring functions such as calibration, recording, analysis, and diagnosis.

Multi Parameter Electrode Iot Water Quality Sensor Customized For Water Analysis
2.Product Features
High reliability: Unique design, excellent waterproof effect, ensuring long-term stable online monitoring.
Compact structure: Compact in size, it is particularly suitable for wellhead applications with smaller groundwater.
Easy installation: Only one 4-core cable is needed externally, which is convenient for on-site installation.
Extended application: Platform-based design, which can be combined according to the measurement parameter requirements to customize electrodes of different diameters.
Main uses and applicable scope
This product is applied to online monitoring of groundwater, surface water, etc.
Usage environmental conditions
Temperature: (5-45) ℃ Pressure: (0-3) bar


3.Technical indicators

Measurement parameters

Measurement method

Measurement range

Measurement accuracy

Repeatability

Resolution

Zero drift

Range drift

Detection limit

Temp

Platinum resistance method

(-20~80) ℃

0.15℃

0.05℃

0.01℃

/

/

/

pH

Glass electricity

0-14

0.1

0.05

0.01

0.1

0.1

/

ORP

"Extreme Method"

±1999mV

20mV

5mV

1mV

/

/

/

Electrical

conductivity

Glass electricity

(0-100)mS/cm

1% or 2uS/cm

0.5% or 2uS/cm

1uS/cm

1%FS

1% FS

5uS/cm

TDS

"Extreme Method"

(0-65) g/L

1% or 0.2g/L

0.5% or0.1g/L

0.01g/L

1%FS

1% FS

0.3g/L

DO

Graphite electrode method

(0-20) mg/L

0.3mg/L

0.1mg/L

0.01mg/L

0.3mg/L

0.3mg/L

0.3mg/L

Turbidity

Conductivity conversion

(0-1000) NTU

3% or 3NTU

2% or 2NTU

0.1NTU

1%FS

2%FS

5NTU

Oil in water

Fluorescence method

(0-150)mg/L

5% or 0.2mg/L

2% or 0.1mg/L

0.01mg/L

1%FS

2%FS

0.3mg/L

Ammonium ion

Light scattering method

(0-1000)mg/L

10% or 0.2mg/L

3% or 0.1mg/L

0.01mg/L

1%FS

2%FS

0.3mg/L

Nitrate

Fluorescence method

(0-1000)mg/L

10% or 0.2mg/L

3% or 0.1mg/L

0.01mg/L

1%FS

2%FS

0.3mg/L

Chloride ion

Ion selection

(0-35000)mg/L

10% or 0.2mg/L

3% or 0.1mg/L

0.01mg/L

1%FS

2%FS

0.3mg/L

Fluoride ion

Select electrodes

(0-1000)mg/L

10% or 0.2mg/L

3% or 0.1mg/L

0.01mg/L

1%FS

2%FS

0.3mg/L

Potassium ion

Ion-selective electrode

(0-1000)mg/L

10% or 0.2mg/L

3% or 0.1mg/L

0.01mg/L

1%FS

2%FS

0.3mg/L

Sodium ion

Ion-selective electrode

(0-1000)mg/L

10% or 0.2mg/L

3% or 0.1mg/L

0.01mg/L

1%FS

2%FS

0.3mg/L

Water level

Ion-selective electrode

(0-30) m

10mm

5mm

1mm

1%FS

2%FS

15mm

Response time

30s

Calibration cycle

One to two months

Working environment

(5-45)℃；(0-3)bar

Protection grade

IP68;" 30 meters underwater

Cleaning method

The optical electrode is equipped with a mechanical cleaning brush

MTBF

>1440h/ Every time

Communication

RS485, standard Modbus protocol

Voltage power consumption

(12/24) V DC; 1.5W (in non-cleaning mode)

Material

316 stainless steel, PVC, customizable

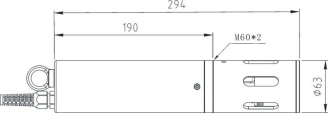

Size
Weight


D63 or 75mm, L294mm; 1.3kg; The standard cable is 3 meters (customizable)

Multi Parameter Electrode Iot Water Quality Sensor Customized For Water Analysis


4. Introduction to the Water Quality Monitoring Software Cloud Platform (DATAIO)


All the water quality/water level related equipment produced by our company can be connected to the Kainafu water quality monitoring cloud platform! It can realize the reception, display, statistics, automatic analysis, storage, download and release of monitoring data from various water quality sensor devices. Generate visual calculation result charts intuitively on the display terminal of the monitoring management center.


▪ Desktop WEB page (login address: ion.onetestinc.com. Contact the product owner for a trial account to obtain it)
▪ Apple APP, Android APP
▪ Wechat Official Account/Mini Program

Multi Parameter Electrode Iot Water Quality Sensor Customized For Water Analysis
