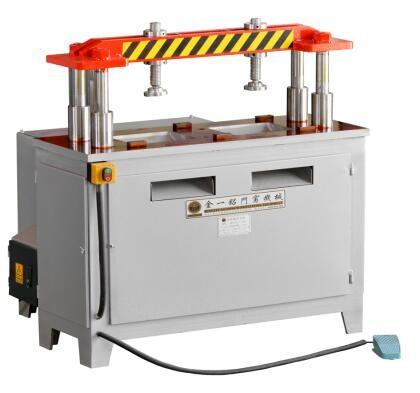

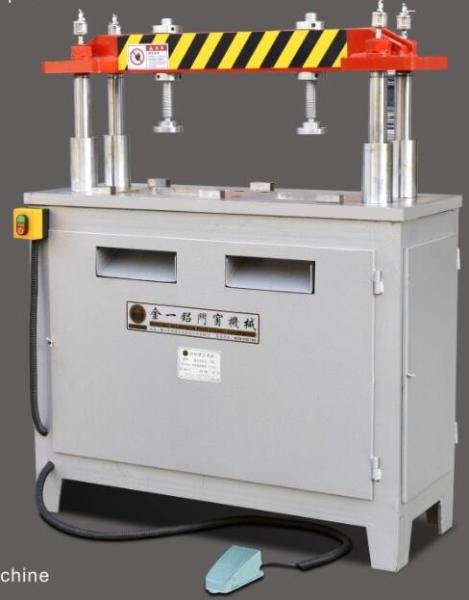

Free Shipping KM-373A Four-Column Hydraulic Punching Machine
Free Shipping KM-373A Four-Column Hydraulic Punching Machine
Free Shipping KM-373A Four-Column Hydraulic Punching Machine
Free Shipping KM-373A Four-Column Hydraulic Punching Machine
Free Shipping KM-373A Four-Column Hydraulic Punching Machine
Free Shipping KM-373A Four-Column Hydraulic Punching Machine
Free Shipping KM-373A Four-Column Hydraulic Punching Machine
Free Shipping KM-373A Four-Column Hydraulic Punching Machine
Free Shipping KM-373A Four-Column Hydraulic Punching Machine
Free Shipping KM-373A Four-Column Hydraulic Punching Machine
Specifications
Brand Name :
KM
Certification :
Factory certificate
Place of Origin :
China
MOQ :
1pcs
Price :
2810
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 Piece/Pieces per Month
Delivery Time :
5-8 work days
Packaging Details :
wooden case
Product Name :
KM-373A Four-Column Hydraulic Punching Machine
Punching thickness :
1-2.5mm
Max.Punching length :
400mm
Punching tool bits :
14
Max.Punching travel :
60mm
diameter of oil cylinder :
80mm
Piston travel of oil cylinder :
60mm
oil cylinder capacity :
40L
motor power :
5Hp
oil pump rated pressure :
20Mpa
max.punching shear pressure :
10ton
overall dimension (lxwxh) :
1000x760x1580mm
Weight :
700kg
Description

Free Shipping KM-373A Four-Column Hydraulic Punching Machine

KE - 373 - A four-column hydraulic press

1. Accessories hydraulic power in Taiwan

2. Taiwan accessories hydraulic oil cylinder

3. Taiwan high pressure gear pump

4. The French schneider low voltage electrical appliances

The main technical parameters

1. The oil pump motor power 5 HP

2. The oil pump pressure rated 20 Mpa

3. Use 0.6 0.7 Mpa pressure work

4. The maximum working 60 mm

5. Maximum thrust 10 tons

6. Use a cutting thickness of 3 mm

7. The machine weighs 750 Kg

8. The machine dimension (length X width X height) x900x1300 1100 mm

Main features:

1. Using Taiwan's hydraulic power and high pressure gear pump, increasing the motor power to 5 HP (different from the other 3 HP domestic hydraulic power), to provide enough power, can be washed 3 mm Windows and doors curtain wall materials.

2. Large size 300 * 750, mesa can be combined with multi-station die.

3. The four column structure suitable for multi-station die.

Free Shipping KM-373A Four-Column Hydraulic Punching Machine
