Free Shipping KM-373C Hydraulic double cylinder press
Free Shipping KM-373C Hydraulic double cylinder press
Free Shipping KM-373C Hydraulic double cylinder press
Free Shipping KM-373C Hydraulic double cylinder press
Free Shipping KM-373C Hydraulic double cylinder press
Free Shipping KM-373C Hydraulic double cylinder press
Free Shipping KM-373C Hydraulic double cylinder press
Free Shipping KM-373C Hydraulic double cylinder press
Free Shipping KM-373C Hydraulic double cylinder press
Free Shipping KM-373C Hydraulic double cylinder press
Specifications
Brand Name :
KM
Certification :
Factory Certificate
Place of Origin :
China
MOQ :
1 pcs
Price :
2808usd
Payment Terms :
L/C, Western Union, T/T
Supply Ability :
20 Piece/Pieces per Month
Delivery Time :
5-8 work days
Packaging Details :
wooden case
punching thickness :
1-2.5mm
Max. punching length :
4-8
effective working area (LxH) :
720x300mm
Max.pnching travel :
60mm
diameter of oil cylinder :
80mm
piston travel of oil cylinder :
60mm
Max. sealing height :
240-300mm
oil tank capacity :
40L
motor power :
5HP
oil pump rated pressure :
20Mpa
Max. punching shear pressure :
10ton
Weight :
600kg
Overall dimension(lxwxh) :
720x450x1785mm
Description

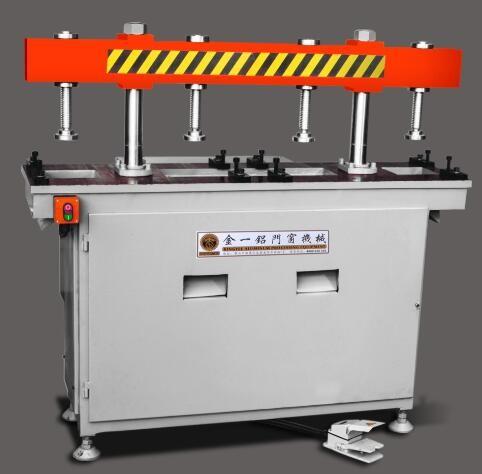

Free Shipping KM-373C Hydraulic double cylinder press

KE - 373 - C double column hydraulic press

1. Accessories hydraulic power in Taiwan

2. Taiwan accessories hydraulic oil cylinder

3. Taiwan high pressure gear pump

4. Taiwan also, low-voltage electrical appliances

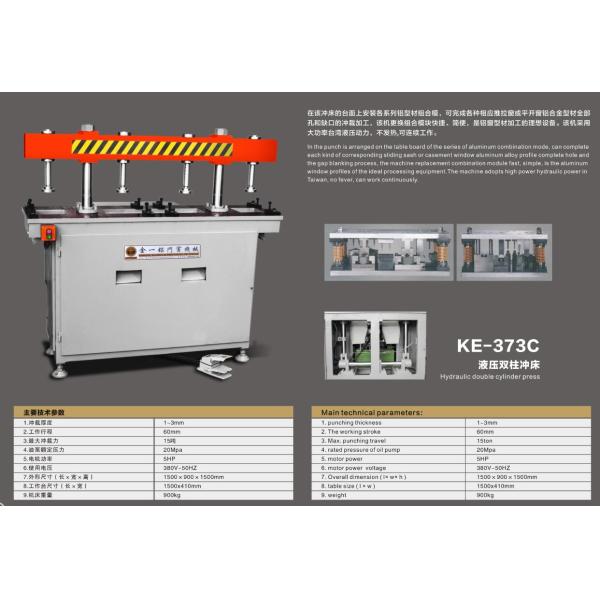

The main technical parameters

1. The oil pump motor power 5 HP

2. The oil pump pressure rated 20 Mpa

3. Use 0.6 0.7 Mpa pressure work

4. The maximum working 60 mm

5. Maximum thrust 15 tons

6. The maximum cutting thickness of 1-3 mm

7. The machine weighs 900 Kg

8. The machine dimension (length X width X height) x900x1500 1500 mm

Main features:

1. Using Taiwan's hydraulic power and high pressure gear pump, increasing the motor power to 5 HP (different from the other 3 HP domestic hydraulic power), to provide enough power, can be washed 3 mm Windows and doors curtain wall materials.

2. Large size 300 * 1500, mesa can be combined with multi-station die.

Free Shipping KM-373C Hydraulic double cylinder press

Free Shipping KM-373C Hydraulic double cylinder press

Free Shipping KM-373C Hydraulic double cylinder press

Free Shipping KM-373C Hydraulic double cylinder press
