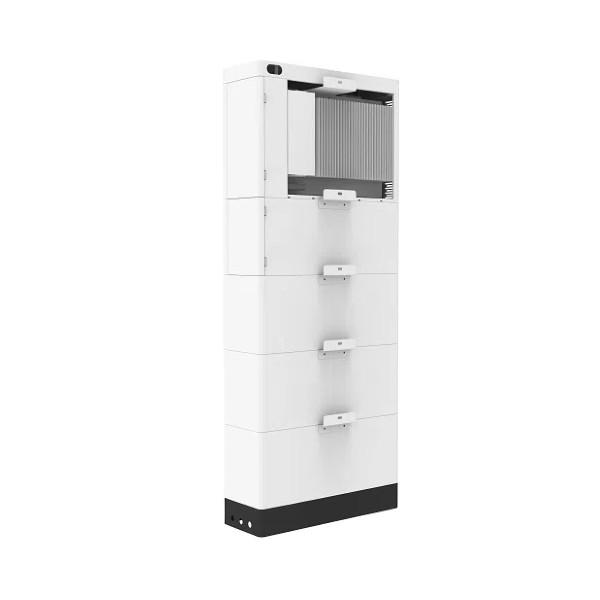

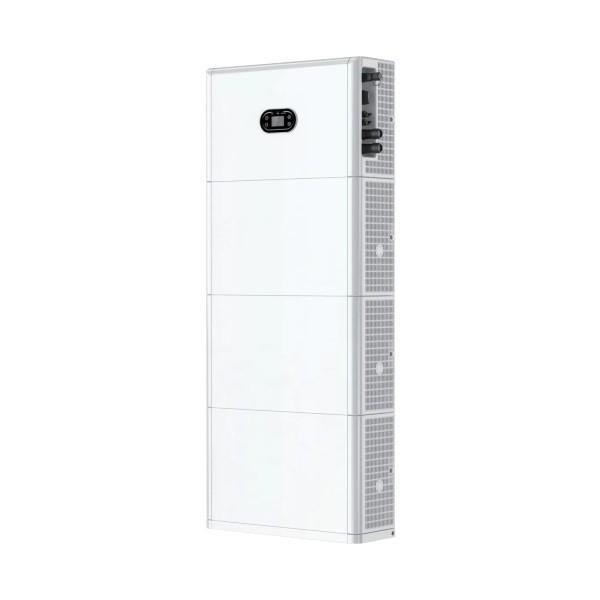

KM POWER 51.2V 400Ah All-in-one LiFePO4 Battery New Energy Home Power
KM POWER 51.2V 400Ah All-in-one LiFePO4 Battery New Energy Home Power
KM POWER 51.2V 400Ah All-in-one LiFePO4 Battery New Energy Home Power
KM POWER 51.2V 400Ah All-in-one LiFePO4 Battery New Energy Home Power
KM POWER 51.2V 400Ah All-in-one LiFePO4 Battery New Energy Home Power
KM POWER 51.2V 400Ah All-in-one LiFePO4 Battery New Energy Home Power
KM POWER 51.2V 400Ah All-in-one LiFePO4 Battery New Energy Home Power
KM POWER 51.2V 400Ah All-in-one LiFePO4 Battery New Energy Home Power
Specifications
Brand Name :
KM
Model Number :
KM 48V 300Ah home battery
Place of Origin :
China
MOQ :
1
Supply Ability :
100pcs/month
Nominal Voltage: :
51.2V 400Ah Battery
Nominal Capacity: :
200Ah~400Ah
Nominal Energy: :
10.24KWh~20.48KWh
Dimension: :
640*375*210mm(single module)
Installation :
Mobile-mounted
Yearscycle Life :
6000 Cycles@25°c 0.2c, 80%dod
Inverter :
Built-in or external
Cycle Life :
5000 - 10000 cycles
Dimension :
600*210*300mm(single module)
Efficiency :
90%
Operating Temperature :
-4°F to 113°F
Voltage :
350-450 V
Communication :
Wi-Fi, Ethernet, or cellular
Nominal Energy :
10.24KWh~30.72KWh
Model :
Powerwall
Nominal Voltage :
51.2V
Compatibility :
Solar panels and grid
Size :
500*258*683/898/1113/1328/1543/1758mm
Inverter Compatibility :
Compatible with most inverters
Description

KM 48V 300Ah LiFePO4 Home Power Battery System Wall Mount Deep Cycles 8000 Times

KM 48V 300Ah LiFePO4 Home Power Battery System Benefits:

  • Reliable Power Supply: Ensures a stable and consistent energy supply for your home, even during power outages.

  • Eco-Friendly: Ideal for use with solar panels, reducing reliance on fossil fuels and lowering your carbon footprint.

  • Cost-Effective: Long cycle life and low maintenance requirements result in lower overall costs over time.

  • Versatile: Suitable for a variety of applications, including off-grid living, backup power, and peak shaving.

Applications:

  • Residential Energy Storage: Perfect for storing solar energy for use during the night or during power outages.

  • Off-Grid Systems: Provides reliable power in remote locations without access to the grid.

  • Backup Power: Ensures uninterrupted power supply during grid failures.

Key Features:

  • Modular and Scalable Design:

    • The battery system is stackable, allowing you to expand capacity as your energy needs grow.

    • Suitable for small to large residential energy storage systems.

  • High-Quality LiFePO4 Cells:

    • Utilizes LiFePO4 (Lithium Iron Phosphate) chemistry, known for its safety, long cycle life, and thermal stability.

  • Intelligent BMS (Battery Management System):

    • Ensures safe and efficient operation with comprehensive protection features.

    • Provides real-time monitoring of battery status (voltage, current, temperature, etc.).

  • Wide Range of Capacities:

    • Available in multiple capacities (from 200Ah to 600Ah), making it adaptable to different energy storage requirements.

  • Compact and Lightweight:

    • Designed to save space and simplify installation.

    • Each module weighs only 48 kg, making it manageable for residential setups.

  • Multiple Communication Options:

    • Supports CAN, RS485, RS232, and optional Bluetooth for seamless integration with inverters, solar charge controllers, and monitoring systems.

  • Certifications and Safety:

    • Complies with international standards (e.g., CE, RoHS, UL).

    • LiFePO4 chemistry ensures high safety with minimal risk of fire or explosion.

  • Long Cycle Life:

    • Designed for 8000+ cycles at 80% depth of discharge (DoD), ensuring a lifespan of over 10 years with proper maintenance.

Product Model KM51.2V400P2
Nominal Voltage 51.2V
Nominal Capacity 100Ah
Cell Type LiFePO4 Cell
Charging Cut-off Voltage 44.8V~56.16V
Dimension 640*375*210mm
Battery Energy Choice 5.12KWh/10.24KWh/15.36KWh/20.48KWh
Cycle Life 6000cylces @25℃,0.5C 80% DOD
Inverter
Power Choice 4.5KW~9KW
Input(PV )
Max PV Input Power 4.5KW/5.4KW/6KW/6.9KW/7.5KW/9KW
Max PV Input Voltage 600V
MPPT Voltage Range 100V~550V
Max PV Input Current 16A
Max Short Circuit Current/MPPT 24A
Output(AC)
Rated Output Power 3KW/3.68KW/4KW/4.6KW/5KW/6KW
Max Output Power 3.3KVA/3.68KVA/4.4KVA/4.6KVA/5.5KVA/6KVA
Max Output Current 15A/16A/20A/20.9A/22.7A/26.1A
Rated Voltage 230V
Efficiency
Max Efficiency 97.50%
Max Battery Charge/Discharge Efficiency 95%
General Data
Internal Resistance ≤40 mΩ
Self Consumption ≤10W
Communication CAN/RS485/RS232
Warranty 10 years
Protection Degree IP65
