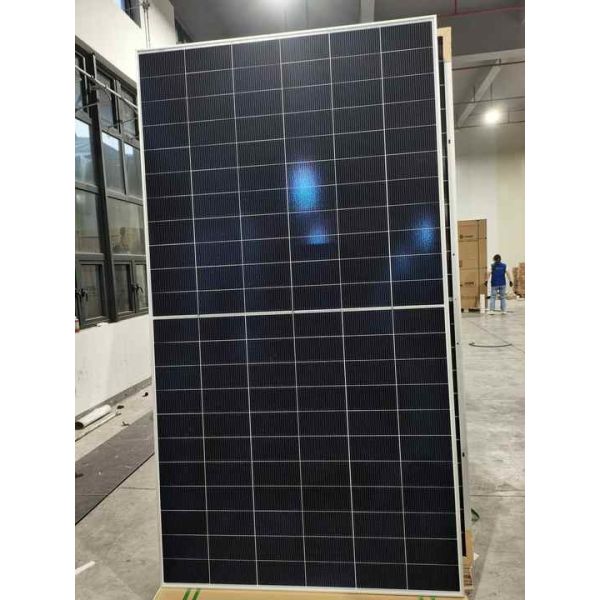

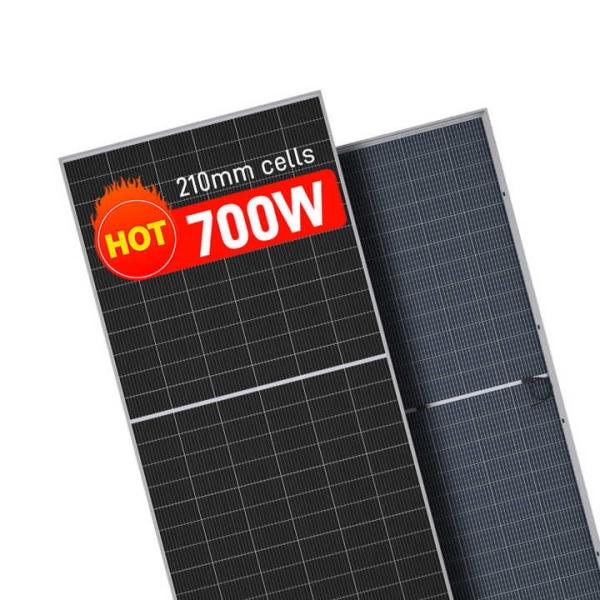

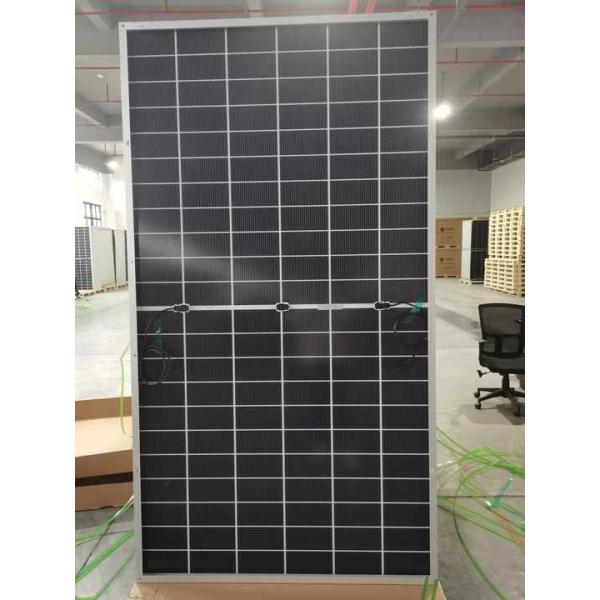

700W Monocrystalline Solar Panel IP65 Weather Resistant PV Module 1722x1134x30mm
700W Monocrystalline Solar Panel IP65 Weather Resistant PV Module 1722x1134x30mm
700W Monocrystalline Solar Panel IP65 Weather Resistant PV Module 1722x1134x30mm
700W Monocrystalline Solar Panel IP65 Weather Resistant PV Module 1722x1134x30mm
700W Monocrystalline Solar Panel IP65 Weather Resistant PV Module 1722x1134x30mm
700W Monocrystalline Solar Panel IP65 Weather Resistant PV Module 1722x1134x30mm
700W Monocrystalline Solar Panel IP65 Weather Resistant PV Module 1722x1134x30mm
700W Monocrystalline Solar Panel IP65 Weather Resistant PV Module 1722x1134x30mm
700W Monocrystalline Solar Panel IP65 Weather Resistant PV Module 1722x1134x30mm
700W Monocrystalline Solar Panel IP65 Weather Resistant PV Module 1722x1134x30mm
Specifications
Brand Name :
Kuoman
Model Number :
KM500-600W Solar Panel
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, L/C
Price :
USD1-100/pcs
Packaging Details :
standard international carton packing
Delivery Time :
general two weeks, more quantity based on exact quantity
Supply Ability :
10000pcs/month
Panel Efficiency :
22%
Dimensions :
1722x1134x30mm
Weather Resistance :
IP65
Cell Type :
Monocrystalline / Polycrystalline
Maximum Power :
700W
Weight :
25 kg
Description
Popular Common Solar Panel 700W Customized Solar Sun Panel 1722x1134x30mm
High-performance 700W solar panel designed for maximum efficiency and durability in various applications.
700W Monocrystalline Solar Panel IP65 Weather Resistant PV Module 1722x1134x30mm 700W Monocrystalline Solar Panel IP65 Weather Resistant PV Module 1722x1134x30mm
Key Features
Excellent Performance
The power output of Huasun G12 series can reach up to 723W with maximum efficiency of 23.28%, gaining 6% more annual energy yield than the PERC bifacial solar module.
High Reliability
Double-glass design and EPE based encapsulant plus PIB sealing provide the module with better capabilities of waterproof, fireproof and corrosion resistant, so as to withstand harsh environments.
Great Durability
15-year product warranty and 30-year linear power warranty guarantee a longer service life, the module's power will remain above 88% of the original at the end of the warranty period.
Ultra-high Return
Due to its leading power and efficiency performance, Huasun HJT pv module can effectively reduce the system BOS cost and result in lower LCOE.
Electrical Specifications
Parameter 680W 690W 700W 710W 720W
Maximum Power (Pmax/W) 680 690 700 710 720
Maximum Power Voltage (Vmp/V) 41.49 41.80 42.10 42.40 42.70
Maximum Power Current (Lmp/A) 16.39 16.51 16.63 16.75 16.87
Open Circuit Voltage (Voc/V) 49.5 49.82 50.13 50.45 50.76
Short Circuit Current (Lsc/A) 17.19 17.31 17.43 17.55 17.67
Module Efficiency (%) 21.89 22.21 22.53 22.85 23.18
Power Output Tolerance: 0~+5W
Nominal Operating Cell Temp. (NOCT): 44℃±2℃
Temperature Coefficient of Lsc: +0.04%/℃
Temperature Coefficient of Voc: -0.24%/℃
Temperature Coefficient of Pmax: -0.26%/℃
700W Monocrystalline Solar Panel IP65 Weather Resistant PV Module 1722x1134x30mm 700W Monocrystalline Solar Panel IP65 Weather Resistant PV Module 1722x1134x30mm
KUOMAN Case
700W Monocrystalline Solar Panel IP65 Weather Resistant PV Module 1722x1134x30mm
Shipping Methods
Shipping Methods Arrive AT Delivery From
By Sea Sea Port Want Any port in china
By Air Specification Any port in china
By Railway Your door Any railway station
By express Specification Zhengzhou City
Mechanical Characteristics
  • Dimensions: 2108 mm in length, 1048 mm in width, and 35 mm in height (L×W×H)
  • Weight: 25 kg per module
  • Front Glass: 3.2 mm thick, high-transmission tempered glass for maximum light penetration and impact resistance
  • Encapsulation: High-quality EVA (Ethylene Vinyl Acetate) for cell protection and durability
  • Cells: 144 pieces of monocrystalline solar cells, each measuring 166 mm × 83 mm
  • Backsheet: Composite film providing excellent insulation and weather resistance
  • Frame: Anodized aluminum profile offering corrosion resistance and structural strength
  • Junction Box: Rated at 25A current, IP68 waterproof rating, TUV certified for safety and reliability
  • Cable: Negative cable length 400 mm, Positive cable length 300 mm
  • Connector: Compatible with industry-standard MC4 connectors for easy and secure installation
General Product Questions
What types of solar panels does Kuoman offer?
Kuoman Solar manufactures two main product lines: high-strength aluminum frame rigid panels (100W-500W) for residential, commercial, and utility-scale installations, and ultra-lightweight ETFE flexible panels (30W-500W) for RVs, marine applications, outdoor adventures, and OEM integration.
What is the efficiency of your solar panels?
Our rigid panels achieve up to 21.1% module efficiency, while our flexible ETFE panels feature high-efficiency PERC cells with up to 23.0% conversion efficiency, among the highest in the flexible solar category.
Are Kuoman panels suitable for high-temperature environments like deserts or tropical regions?
Yes. Our panels feature an ultra-low power temperature coefficient of -0.39%/°C, meaning they lose less efficiency in high heat compared to standard panels. They are tested for continuous operation from -40°C to +85°C.
Do you offer bifacial or shingled cell technology?
Yes. Our flexible ETFE series incorporates bifacial transparent encapsulation for rear-side light harvesting, and select models feature shingled (imbrication) cell architecture to maximize active area and efficiency.
