Specifications
Brand Name :
Kuoman
Model Number :
KM500-600W Solar Panel
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, L/C
Price :
USD1-100/pcs
Packaging Details :
standard international carton packing
Delivery Time :
general two weeks, more quantity based on exact quantity
Supply Ability :
10000pcs/month
Cell Size :
182mmx182mm
Panel Efficiency :
22%
Module Dimensions :
2384 x 1303 x 35mm
Module Weight :
33kg
Max Power :
540W | 550W | 560W | 425W | 430W
Operating Temperature :
-40°C~+85°C
Description

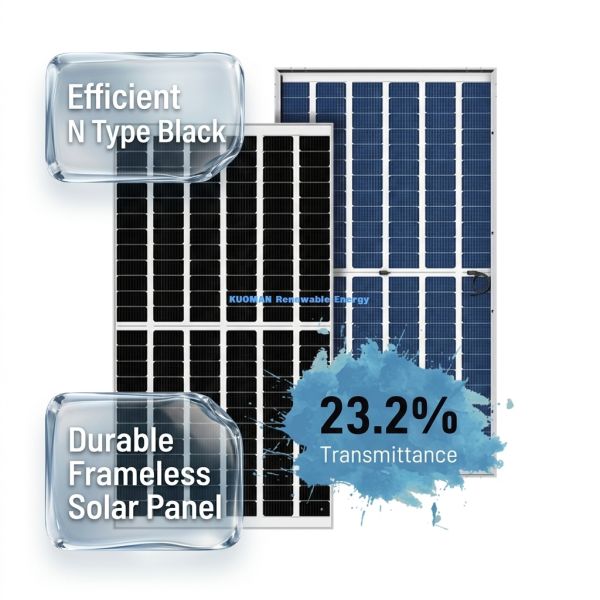

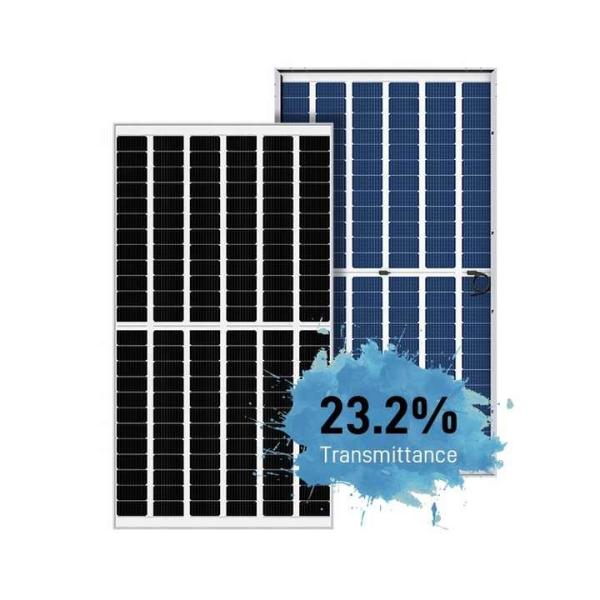

Frameless Glass Solar Panel 540W 550W Mono Perc Solar Panels
Product Overview

High-efficiency frameless glass solar panels featuring monocrystalline PERC technology, available in multiple power ratings from 540W to 560W.

Structural Parameters
Cells 144pcs 182x91mm Monocrystalline solar cells
Module Dimension 2384x1303x35mm (LxWxH)
Module Weight 33kg
Frame Anodized aluminum profile
Junction Box Rated current: 25A, IP68, TUV certified
Cable Length Negative 400mm / Positive 300mm
Connector Compatible with MC4
540W 550W Mono Perc Solar Panel with 22% Efficiency and Frameless Glass Design
Standard Test Conditions (STC)
Parameter 540W 550W 560W 425W 430W
Maximum Power (Pmax) 540W 550W 560W 425W 430W
Maximum Power Voltage (Vmp) 40.72V 40.98V 41.24V 31.70V 31.88V
Maximum Power Current (Imp) 13.27A 13.43A 13.59A 13.41A 13.49A
Open-circuit Voltage (Voc) 49.33V 49.64V 49.95V 38.30V 38.49V
Short-circuit Current (Isc) 13.97A 14.14A 14.30A 14.15A 14.23A
STC: Irradiance 1000W/m², cell temperature 25℃, AM1.5G
Operating Conditions
Maximum System Voltage 1000V/1500V DC
Temperature Range -40°C to +85°C
Series Fuse Rating 15A
NOTC 45±2℃
Temperature Coefficient of Isc (α-Isc) +0.033%/℃
Temperature Coefficient of Voc (β-Voc) -0.29%/℃
Temperature Coefficient of Pmax (Y-Pmp) -0.39%/℃
