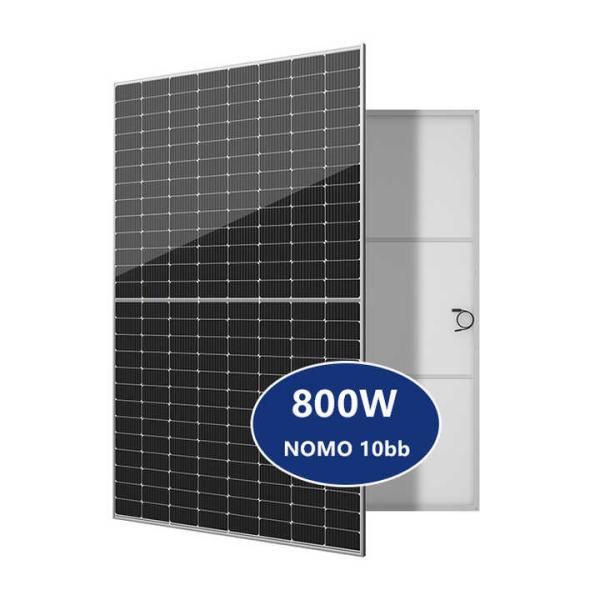

Customized 800W Solar Panel 48 Volt Low Degradation High Efficiency Solar Panel
Customized 800W Solar Panel 48 Volt Low Degradation High Efficiency Solar Panel
Customized 800W Solar Panel 48 Volt Low Degradation High Efficiency Solar Panel
Customized 800W Solar Panel 48 Volt Low Degradation High Efficiency Solar Panel
Customized 800W Solar Panel 48 Volt Low Degradation High Efficiency Solar Panel
Customized 800W Solar Panel 48 Volt Low Degradation High Efficiency Solar Panel
Specifications
Brand Name :
Kuoman
Model Number :
KM800W Solar Panel
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, L/C
Price :
USD1-100/pcs
Packaging Details :
standard international carton packing
Delivery Time :
general two weeks, more quantity based on exact quantity
Supply Ability :
10000pcs/month
Panel Efficiency :
22%
Module Dimensions :
2650*1305*35mm
Module Weight :
41kg
Rated Power :
800W
Open-circuit Voltage :
67.68V
Short-circuit Current :
60.7A
Description

Customized 800W Solar Panel 48 Volts Solar Panels

800W Solar Panel Specification:

Half-cut cell
Optimized power output underinter-row shading conditions.Reduced interconnection losses.

Highly reliable
Certified in TUV salt spray, ammoniacorrosion, 2400Pa wind load and

High efficiency
10Bus-Bar technology decreasesthe distance between bus barsand finger grid line which is bene-

Low hot-spot risk

The next-generation cell technologycan support improved temperature

Low degradation

1% first year degradation,0.4% linear degradation.

High yield

Effectively reducing BOS coststo achieve lower LCOE and

Structural Parameters
Cells
208pcs 182x91mm Monocrystalline solar cells
Module Dimension
2472x1134x35mm(LxWxH)
Module Weight
41kg
frame
Anodized aluminum profile
Junction Box
Rated current:30A, IP68, TUV
Cable
Length Negative 400mm/Positive 300mm
Connector
Compatible with MC4

Customized 800W Solar Panel 48 Volt Low Degradation High Efficiency Solar Panel

STC
Rated Maximum Power(Pmax)(W)
790
795
800
805
Open-circuit Voltag(Voc)(V)
67.23
67.51
67.68
67.89
Maximum Power Voltage(Vmp)(V)
16.65
16.72
16.78
16.81
Short-circuit Current(lsc)(A)
60.32
60.54
60.7
60.98
Maximum Power Current(lmp)A)
13.1
13.14
13.18
13.21
Module Efficiency(%)
21.07
21.2
21.33
21.47
STC
Irradiance 1000W/m2, cell temperature 25°C AM1.5G
Operating Conditions
Maxi System Voltage
1000V/1500V DC
Temperature range
-40°C~+85°C
Series Fuse Rating
30A
NOTC
45±2℃
Temperature Coefficient of Isc(α-Isc)
+0.04%/℃
Temperature Coefficient of Voc(β-Voc)
-0.24%/℃
Temperature Coefficient of Pmax(Y-Pmp)
-0.26%/℃

Customized 800W Solar Panel 48 Volt Low Degradation High Efficiency Solar PanelCustomized 800W Solar Panel 48 Volt Low Degradation High Efficiency Solar Panel

KUOMAN Case:

Customized 800W Solar Panel 48 Volt Low Degradation High Efficiency Solar Panel

Customized 800W Solar Panel 48 Volt Low Degradation High Efficiency Solar Panel

FQA:

1.Whats your MOQ ?

our min quantity is 1 pieces.

2.Whats your payment ways ?

we could accept T/T, L/C.

3.Whats your delivery time ?

Generally it will take about 20 days for production on receipt of advance
payment.
