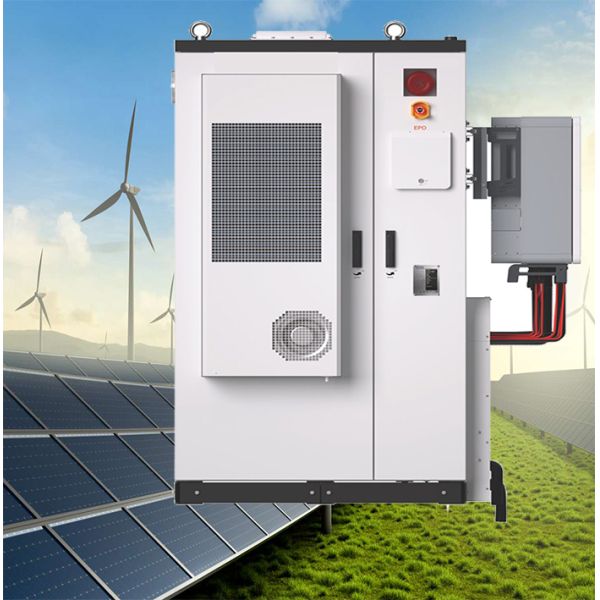

Commercial Energy Storage System with 50kW Hybrid Solar Inverter for C&I Peak Shaving Featuring LFP Battery and IP54/IP65 Protection
Commercial Energy Storage System with 50kW Hybrid Solar Inverter for C&I Peak Shaving Featuring LFP Battery and IP54/IP65 Protection
Specifications
Brand Name :
KUOMAN
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 pcs/month
Packaging Details :
Standard Export Packing
Module Dimensions :
1722x1134x30mm
Certifications :
IEC 61215, IEC 61730, UL 1703, CE
Front Glass :
3.2 mm tempered
Operatingtemperature :
-40°C to 85°C
Output Frequency :
60Hz/50Hz
Short Circuit Current :
13.88-14.22A
Junction Box :
25A, IP68
Warranty :
10 years product warranty, 25 years performance warranty
Surfacetreatment :
Anti-reflective coating
Panel Efficiency :
22%
Series Fuse Rating :
15A
Application :
Residential, Commercial, Industrial
Current :
12.5 amps
Cell Count :
144 monocrystalline
Temperature Range :
-40°C~+85°C
Description
Commercial Energy Storage System | 50kW Hybrid Solar Inverter for C&I Peak Shaving
Product Overview

This commercial & industrial (C&I) solar energy storage system integrates a lithium iron phosphate (LFP) battery cabinet and a hybrid solar inverter, designed for reliable, long-duration energy storage and grid-tied/backup power applications.

Key Technical Parameters
Battery System (BC107DE2)
  • Chemistry: Lithium Iron Phosphate (LFP) - safe, long cycle life, non-flammable
  • Total Capacity: 107.52 kWh (6 modules * 17.92 kWh)
  • Nominal Voltage: 384 V (operating range: 342-432 V)
  • Max Charge/Discharge Rate: 0.5C
  • Depth of Discharge (DoD): 90%
  • IP Rating: IP54 (outdoor installation)
  • Corrosion Resistance: C4 level (suitable for coastal/industrial environments)
  • Operating Temp: -30°C to +50°C
  • Cooling: Air conditioner (stable performance in extreme climates)
  • Certifications: UN38.3, MSDS, IEC 62040, IEC 62477, IEC 62619, IEC 63056, IEC 61000-6-2/4
Hybrid Inverter (KAC50DP2)
  • PV Input: 100 kWp max, MPPT voltage 250-950 Vdc
  • Battery Compatibility: 200-950 Vdc (rated 250-800 Vdc), 55 kW max DC power
  • AC Output: 50 kW rated (55 kVA max), grid-tied & backup power (50 kW backup)
  • Efficiency: Up to 97.5%
  • IP Rating: IP65 (dust & water resistant)
  • Operating Temp: -25°C to 60°C (derated above 45°C)
  • Cooling: Intelligent air cooling
  • Communication: RS-485/CAN, Modbus TCP/IP
Application Scenarios
Commercial & Industrial Facilities: Factories, warehouses, shopping malls, and office buildings for peak shaving, demand charge management, and backup power.
Solar PV Plants: Utility-scale and distributed solar installations to store excess solar energy for grid stability and time-of-use (TOU) arbitrage.
Microgrids: Remote communities, mining sites, and islands to integrate renewable energy, gensets, and energy storage for reliable off-grid power.
Critical Infrastructure: Hospitals, data centers, and telecom towers to ensure uninterrupted power supply during blackouts.
Agricultural & Rural Applications: Irrigation systems and farm operations to store solar energy for off-peak use and reduce reliance on diesel generators.
