High Energy Density 280Ah LFP Commercial Energy Storage Cabinet Fire Water Injection Port Safety Design
High Energy Density 280Ah LFP Commercial Energy Storage Cabinet Fire Water Injection Port Safety Design
High Energy Density 280Ah LFP Commercial Energy Storage Cabinet Fire Water Injection Port Safety Design
High Energy Density 280Ah LFP Commercial Energy Storage Cabinet Fire Water Injection Port Safety Design
Specifications
MOQ :
1
Packaging Details :
Standard Export Packing
Output Frequency :
60Hz/50Hz
Surfacetreatment :
Anti-reflective coating
Panel Efficiency :
22%
Model Number :
KMC50DP2
Certifications :
IEC 61215, IEC 61730, UL 1703, CE
Payment Terms :
T/T
Junction Box :
25A, IP68
Application :
Residential, Commercial, Industrial
Temperature Range :
-40°C~+85°C
Price :
based on the specification demands
Short Circuit Current :
13.88-14.22A
Current :
12.5 amps
Supply Ability :
10 pcs/month
Warranty :
10 years product warranty, 25 years performance warranty
Series Fuse Rating :
15A
Brand Name :
KUOMAN
Module Dimensions :
1722x1134x30mm
Cell Count :
144 monocrystalline
Certification :
CE, UL
Front Glass :
3.2 mm tempered
Place of Origin :
CHINA
Operatingtemperature :
-40°C to 85°C
Description
High Energy Density 280Ah LFP Commercial Energy Storage Cabinet Fire Water Injection Port Safety Design
High Energy Density 280Ah LFP Commercial Energy Storage Cabinet Fire Water Injection Port Safety Design
Product Overview

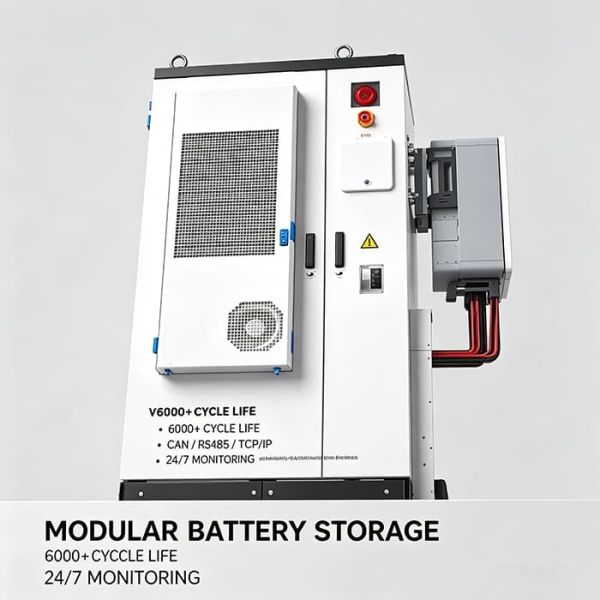

This commercial & industrial (C&I) solar energy storage system integrates a lithium iron phosphate (LFP) battery cabinet and a hybrid solar inverter, designed for reliable, long-duration energy storage and grid-tied/backup power applications.

Key Technical Parameters
Battery System (BC107DE2)
  • Chemistry: Lithium Iron Phosphate (LFP) - safe, long cycle life, non-flammable
  • Total Capacity: 107.52 kWh (6 modules * 17.92 kWh)
  • Nominal Voltage: 384 V (operating range: 342-432 V)
  • Max Charge/Discharge Rate: 0.5C
  • Depth of Discharge (DoD): 90%
  • IP Rating: IP54 (outdoor installation)
  • Corrosion Resistance: C4 level (suitable for coastal/industrial environments)
  • Operating Temp: -30°C to +50°C
  • Cooling: Air conditioner (stable performance in extreme climates)
  • Certifications: UN38.3, MSDS, IEC 62040, IEC 62477, IEC 62619, IEC 63056, IEC 61000-6-2/4
Hybrid Inverter (KAC50DP2)
  • PV Input: 100 kWp max, MPPT voltage 250-950 Vdc
  • Battery Compatibility: 200-950 Vdc (rated 250-800 Vdc), 55 kW max DC power
  • AC Output: 50 kW rated (55 kVA max), grid-tied & backup power (50 kW backup)
  • Efficiency: Up to 97.5%
  • IP Rating: IP65 (dust & water resistant)
  • Operating Temp: -25°C to 60°C (derated above 45°C)
  • Cooling: Intelligent air cooling
  • Communication: RS-485/CAN, Modbus TCP/IP
Application Scenarios
Commercial & Industrial Facilities: Factories, warehouses, shopping malls, and office buildings for peak shaving, demand charge management, and backup power.
Solar PV Plants: Utility-scale and distributed solar installations to store excess solar energy for grid stability and time-of-use (TOU) arbitrage.
Microgrids: Remote communities, mining sites, and islands to integrate renewable energy, gensets, and energy storage for reliable off-grid power.
Critical Infrastructure: Hospitals, data centers, and telecom towers to ensure uninterrupted power supply during blackouts.
Agricultural & Rural Applications: Irrigation systems and farm operations to store solar energy for off-peak use and reduce reliance on diesel generators.
