Low Maintenance Outdoor Industrial Energy Storage Air Cooled Cabinet 10ms Backup Switch For Commercial Use
Low Maintenance Outdoor Industrial Energy Storage Air Cooled Cabinet 10ms Backup Switch For Commercial Use
Low Maintenance Outdoor Industrial Energy Storage Air Cooled Cabinet 10ms Backup Switch For Commercial Use
Low Maintenance Outdoor Industrial Energy Storage Air Cooled Cabinet 10ms Backup Switch For Commercial Use
Specifications
Model Number :
KMC50DP2
Certifications :
IEC 61215, IEC 61730, UL 1703, CE
Payment Terms :
T/T
Junction Box :
25A, IP68
Application :
Residential, Commercial, Industrial
Temperature Range :
-40°C~+85°C
Price :
based on the specification demands
Short Circuit Current :
13.88-14.22A
Current :
12.5 amps
MOQ :
1
Packaging Details :
Standard Export Packing
Output Frequency :
60Hz/50Hz
Surfacetreatment :
Anti-reflective coating
Panel Efficiency :
22%
Supply Ability :
10 pcs/month
Warranty :
10 years product warranty, 25 years performance warranty
Series Fuse Rating :
15A
Brand Name :
KUOMAN
Module Dimensions :
1722x1134x30mm
Cell Count :
144 monocrystalline
Certification :
CE, UL
Front Glass :
3.2 mm tempered
Place of Origin :
CHINA
Operatingtemperature :
-40°C to 85°C
Description

Low Maintenance Outdoor Industrial Energy Storage Air Cooled Cabinet 10ms Backup Switch For Commercial Use

Low Maintenance Outdoor Industrial Energy Storage Air Cooled Cabinet 10ms Backup Switch For Commercial Use
Product Overview

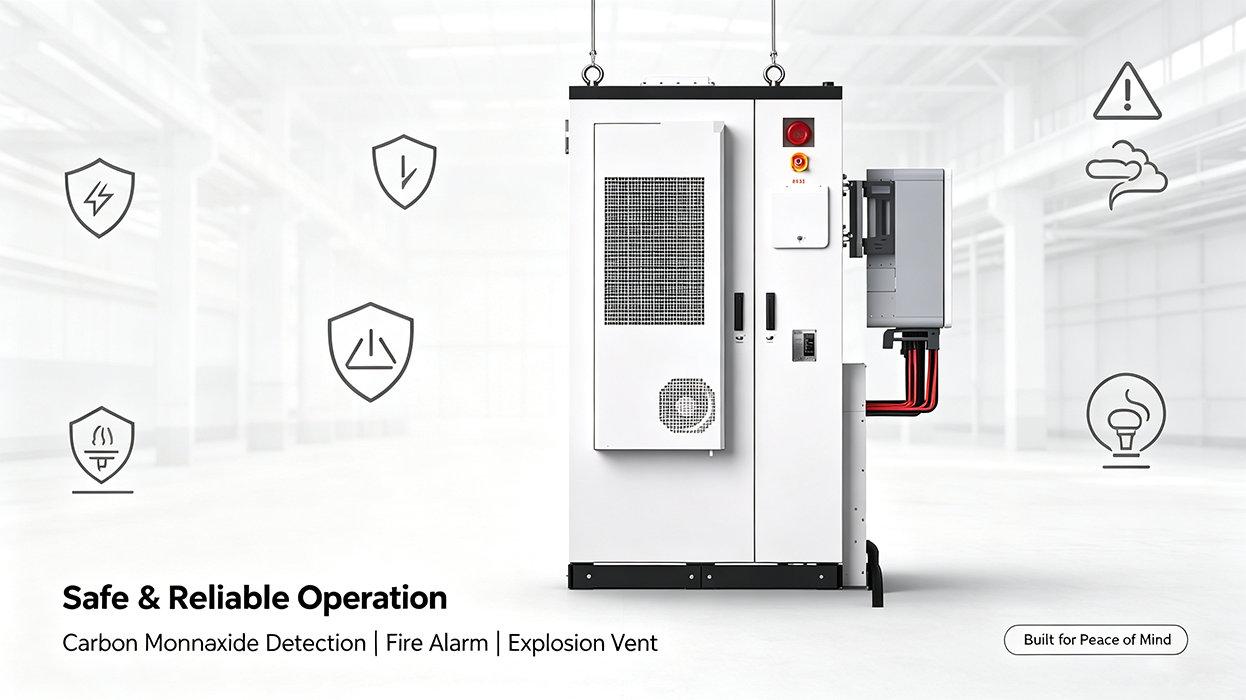

Our KMC50DP2 commercial energy storage cabinet integrates a 50kW hybrid solar inverter and BC107DE2 107.52kWh LFP battery pack into a single outdoor unit, a complete all-in-one solar storage solution designed for commercial & industrial users. Built with 280Ah large-capacity lithium iron phosphate cells, this compact ESS supports both DC-coupled and AC-coupled PV systems, delivering seamless on/off-grid power switching within 10ms to secure critical backup loads. Equipped with independent air conditioner cooling, full fire safety mechanisms and cloud 24/7 monitoring, it perfectly solves high electricity cost, power outage and peak demand challenges for businesses.

Key Technical Parameters
Battery System (BC107DE2)
  • Chemistry: Lithium Iron Phosphate (LFP) - safe, long cycle life, non-flammable
  • Total Capacity: 107.52 kWh (6 modules * 17.92 kWh)
  • Nominal Voltage: 384 V (operating range: 342-432 V)
  • Max Charge/Discharge Rate: 0.5C
  • Depth of Discharge (DoD): 90%
  • IP Rating: IP54 (outdoor installation)
  • Corrosion Resistance: C4 level (suitable for coastal/industrial environments)
  • Operating Temp: -30°C to +50°C
  • Cooling: Air conditioner (stable performance in extreme climates)
  • Certifications: UN38.3, MSDS, IEC 62040, IEC 62477, IEC 62619, IEC 63056, IEC 61000-6-2/4
Hybrid Inverter (KAC50DP2)
  • PV Input: 100 kWp max, MPPT voltage 250-950 Vdc
  • Battery Compatibility: 200-950 Vdc (rated 250-800 Vdc), 55 kW max DC power
  • AC Output: 50 kW rated (55 kVA max), grid-tied & backup power (50 kW backup)
  • Efficiency: Up to 97.5%
  • IP Rating: IP65 (dust & water resistant)
  • Operating Temp: -25°C to 60°C (derated above 45°C)
  • Cooling: Intelligent air cooling
  • Communication: RS-485/CAN, Modbus TCP/IP
Application Scenarios
Commercial & Industrial Facilities: Factories, warehouses, shopping malls, and office buildings for peak shaving, demand charge management, and backup power.
Solar PV Plants: Utility-scale and distributed solar installations to store excess solar energy for grid stability and time-of-use (TOU) arbitrage.
Microgrids: Remote communities, mining sites, and islands to integrate renewable energy, gensets, and energy storage for reliable off-grid power.
Critical Infrastructure: Hospitals, data centers, and telecom towers to ensure uninterrupted power supply during blackouts.
Agricultural & Rural Applications: Irrigation systems and farm operations to store solar energy for off-peak use and reduce reliance on diesel generators.
