14/16/18kW 3 Phase Hybrid Off Grid Solar Inverter 48-60V Battery 3 MPPT IP65
14/16/18kW 3 Phase Hybrid Off Grid Solar Inverter 48-60V Battery 3 MPPT IP65
14/16/18kW 3 Phase Hybrid Off Grid Solar Inverter 48-60V Battery 3 MPPT IP65
14/16/18kW 3 Phase Hybrid Off Grid Solar Inverter 48-60V Battery 3 MPPT IP65
Specifications
Model Number :
Three-Phase Hybrid Grid-Tied Inverter
Operating Temperature :
-25°C to 60°C
Supply Ability :
100pcs/month
Rated Voltage/Frequency :
120/208V, 60Hz
Maximum PV Voltage :
600V per tracker
Certification :
CE UL
Output Power :
14,000W / 16,000W / 18,000W
Payment Terms :
T/T
Output Configuration :
Three-phase + Neutral + Ground (3L+N+PE)
Protection Rating :
IP65
Price :
based on specification
Efficiency :
95% - 98%
MOQ :
1
Delivery Time :
20 working days
AC Input Range :
110V:85-138VAC;220V:170-275VAC
Peak Off-Grid Power :
28kVA to 36kVA
Place of Origin :
China
MPPT Efficiency :
99.9%
Packaging Details :
Standard internationa packing
Power Factor :
0.8 leading to 0.8 lagging
Brand Name :
KUOMAN
Battery Voltage :
40-60V DC
Description
14/16/18kW 3 Phase Hybrid Off Grid Solar Inverter 48-60V Battery 3 MPPT IP65

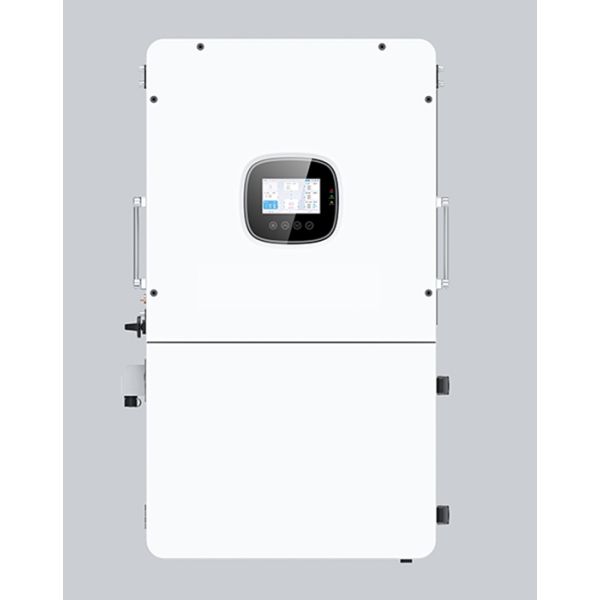

Empower your home or business with the robust and intelligent BSR Series three-phase hybrid inverters. Available in 14kW, 16kW, and 18kW models, these inverters seamlessly integrate solar, grid, and battery storage to provide reliable, efficient, and flexible power management. Featuring a modern white casing with a user-friendly display and easy-grip handles, the BSR series combines advanced technology with practical design.
14/16/18kW 3 Phase Hybrid Off Grid Solar Inverter 48-60V Battery 3 MPPT IP65
Technical Specifications & Features
Power & Electrical Specifications
  • Rated AC Output Power: 14,000W / 16,000W / 18,000W
  • Output Configuration: Three-phase + Neutral + Ground (3L+N+PE)
  • Rated Voltage/Frequency: 120/208V, 60Hz
  • Peak Off-Grid Power: High surge capacity (28kVA to 36kVA) for starting motors
  • Power Factor Adjustment: Range from 0.8 leading to 0.8 lagging
Battery Compatibility & Management
  • Battery Voltage Range: Wide 40-60V DC input
  • Supported Types: Lead-Acid, Lithium-ion, User-Defined
  • Lithium Battery Integration: Self-adapting BMS communication for seamless compatibility
  • High Current Charging/Discharging: Up to 350A (model dependent)
  • Dual Battery Inputs: Supports connection of two battery banks
Solar (PV) Input & Efficiency
  • Triple MPPT Trackers: 3 independent Maximum Power Point Trackers with 2 strings each
  • High PV Voltage: Maximum input voltage of 600V per tracker
  • High Capacity: Maximum PV array power up to 36kW (for BSR-18K-U3P)
  • Superior Efficiency: Maximum efficiency of 97.5%, CEC efficiency of 97%, and MPPT tracking efficiency of 99.9%
Grid & Generator Integration
  • Wide Input Range: Broad grid/generator voltage and frequency range for stable operation
  • High Bypass Current: Supports up to 200A bypass overload current for reliable grid backup
General Data & Robustness
  • Scalability: Supports parallel connection of 1 to 9 units for large-scale power needs
  • Protection Rating: IP65 certified for dust-tight and water-resistant performance
  • Operating Temperature: Wide range from -25°C to 60°C (with derating above 45°C)
  • Cooling: Combines heat sinks with intelligent forced air cooling
  • Communication Ports: Includes RS485, CAN, USB, and Dry Contact
  • Optional Connectivity: Wi-Fi/4G stick for remote monitoring
Safety & Certifications
  • Comprehensive Protections: Anti-islanding, PV lightning protection, leakage current detection, insulation monitoring, reverse polarity protection, and surge protection
  • International Certifications: Complies with CSA, IEC62109, and EN61000 standards
14/16/18kW 3 Phase Hybrid Off Grid Solar Inverter 48-60V Battery 3 MPPT IP65
Ideal Application Scenarios
Residential Homes with 3-Phase Supply: Power large homes, HVAC systems, and electric vehicle chargers efficiently
Commercial & Retail Stores: Reduce operating costs by powering lighting, refrigeration, and office equipment with solar energy
Small & Medium Enterprises (SMEs) / Workshops: Run machinery and production equipment reliably with clean, three-phase power
Agricultural & Farming Operations: Power irrigation systems, barns, and processing equipment
Off-Grid & Backup Power Systems: Provide critical power backup for buildings during grid outages
