5120Wh Rack‑Mount Solar Battery 48V 100Ah, Max 15 Units Parallel Expandable Energy Storage
5120Wh Rack‑Mount Solar Battery 48V 100Ah, Max 15 Units Parallel Expandable Energy Storage
5120Wh Rack‑Mount Solar Battery 48V 100Ah, Max 15 Units Parallel Expandable Energy Storage
5120Wh Rack‑Mount Solar Battery 48V 100Ah, Max 15 Units Parallel Expandable Energy Storage
Specifications
Certification :
CE ISO
Warranty :
10 years
Price :
USD1-100/pcs
Max Discharging Current :
100A
Operating Temperature Range :
-20°C to 50°C
Supply Ability :
10000pcs/month
Monitoring Interface :
LCD screen + smart app
Packaging Details :
standard international carton packing
Voltage Range :
43.2V-58.4V
Communication Ports :
CAN/RS485
Place of Origin :
China
Delivery Time :
general two weeks, more quantity based on exact quantity
Battery Chemistry :
LiFePO4
Total Energy :
5120Wh
Model Number :
KM 48V 100Ah
Efficiency :
95% - 98%
Dimensions :
433*483*176mm
Max Charge Current :
200A
Yearscycle Life :
6000 Cycles@25°c 0.2c, 80%dod
MOQ :
1
Compatibility :
Compatible with solar panels and grid power
Description
5120Wh Rack‑Mount Solar Battery 48V 100Ah, Max 15 Units Parallel Expandable Energy Storage
Our 19‑inch rack‑mount 48V 100Ah LiFePO4 battery delivers 5.12kWh usable energy, designed for server cabinet installation.
Built with Grade‑A LiFePO4 cells, it supports multi‑unit parallel expansion for residential solar, commercial backup, off‑grid systems and data‑room UPS storage.
Featuring smart BMS, CAN/RS485 communication, LCD real‑time display and circuit‑breaker safety design, this rack‑mount battery is ideal for solar installers, system integrators and wholesale distributors worldwide, backed by 10‑year manufacturer warranty and 8000 deep charge‑discharge cycles.
5120Wh Rack‑Mount Solar Battery 48V 100Ah, Max 15 Units Parallel Expandable Energy Storage
Technical Specifications
Nominal Capacity 100Ah
Total Energy 5120Wh / 5.12kWh
Cell Type Grade‑A LiFePO4 Lithium Iron Phosphate
Charge Cut‑off Voltage 56.2V
Discharge Cut‑off Voltage 45.6V
Standard Charging Current 50A | Max Charging Current: 100A
Continuous Discharge Rate 0.5C‑1C
Operating Temperature Charge: 0℃ ~ +55℃; Discharge: ‑20℃ ~ +55℃

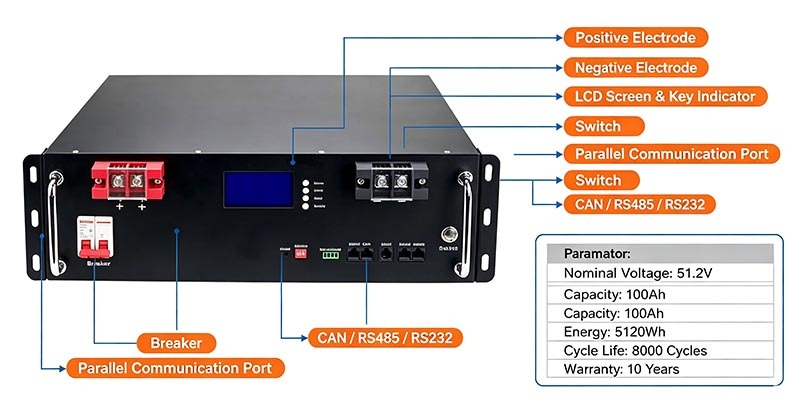

Mechanical Form 19‑inch Standard 3U Rack‑mount Module
Dimension (W×D×H) 482 × 520 × 133mm (3U height)
Net Weight 43.5kg
Housing Heavy‑duty metal rack‑mount chassis, pull‑out handles for easy handling
Safety Device Built‑in AC/DC circuit breaker
Display LCD screen + LED status indicator lights
Communication CAN, RS485, RS232, Dry contact; Optional Bluetooth
Parallel Support Max 15 units parallel for capacity expansion
Certifications CE, IEC62619, UN38.3, MSDS
Available capacity options 50Ah / 100Ah / 150Ah / 200Ah / 280Ah
Cycle Life Up to 8000 deep cycles
Warranty 10‑Year Manufacturer Warranty
Lead Time 5‑12 working days for orders below 100 units
Shipping Sea, Air, Railway transport available
5120Wh Rack‑Mount Solar Battery 48V 100Ah, Max 15 Units Parallel Expandable Energy Storage
Application Scenarios
  • Residential solar energy storage (19‑inch cabinet‑type home solar system)
  • Commercial & office UPS emergency backup power
  • Small‑medium data room, server room backup power supply
  • Off‑grid cabins, remote base stations, industrial site power storage
  • Hybrid solar‑wind off‑grid power station system
  • Micro‑grid energy‑storage cabinet projects for industrial & agriculture
  • Telecom base station, monitoring equipment standby power
  • Solar project integrator assembled energy‑storage cabinet solutions
Key Features: 8000 deep cycles lifespan • 10-year warranty • Smart BMS with multiple communication protocols • Expandable parallel configuration • Industrial-grade safety design
