Mobile 5.12kWh LiFePO4 Energy Storage Battery, LCD Display, BMS Protection
Mobile 5.12kWh LiFePO4 Energy Storage Battery, LCD Display, BMS Protection
Mobile 5.12kWh LiFePO4 Energy Storage Battery, LCD Display, BMS Protection
Mobile 5.12kWh LiFePO4 Energy Storage Battery, LCD Display, BMS Protection
Specifications
Model Number :
KM 51V 100Ah home battery
Total Energy :
5120Wh
MOQ :
1
Delivery Time :
10 working days
Battery Chemistry :
LiFePO4
Packaging Details :
Standard international packing
Payment Terms :
T/T
Charging Current :
100A
Dimensions :
607.7*362.5*162.3 (mm)
Brand Name :
KUOMAN
Floating Charge Voltage :
51.2V
Place of Origin :
CHINA
Nominal Capacity :
100Ah
Round-Trip Efficiency :
95%
Price :
based on the specification demands
Max Output Power :
3.3KVA/3.68KVA/4.4KVA/4.6KVA/5.5KVA/6KVA
Work Temperature :
-20℃~55℃
Depth Of Discharge :
90%
Nominal Voltage :
51.2V
Supply Ability :
200pcs/month
Working Voltage Range :
21.6V-29.2V | 43.2V-58.4V
Certification :
CE, FCC, UKCA, CB
Description
Mobile 5.12kWh LiFePO4 Energy Storage Battery, LCD Display, BMS Protection

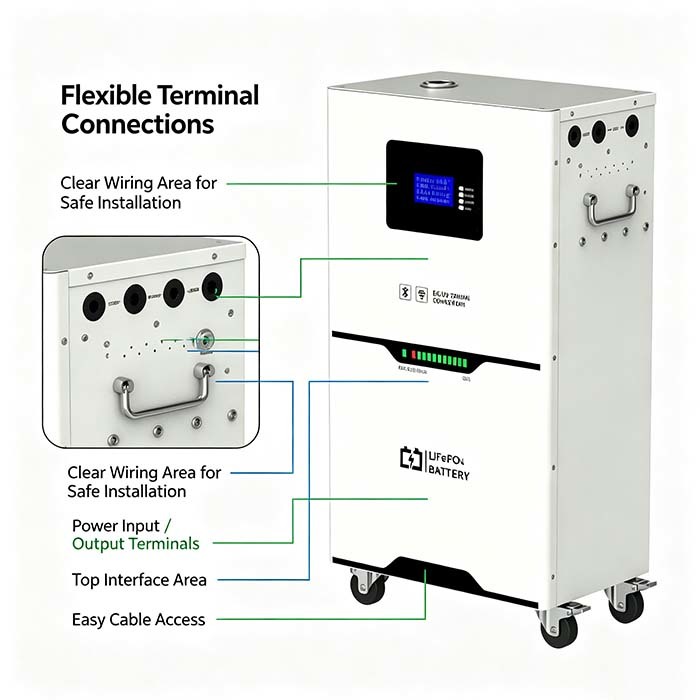

This 51.2V 100Ah 5.12kWh LiFePO4 energy storage battery is a floor-standing, wheeled cabinet-type lithium iron phosphate battery designed for residential solar backup and off-grid power systems. Built with premium LiFePO4 cells and integrated smart BMS, it delivers reliable long-cycle power storage.

It supports parallel connection of up to 15 units to expand capacity, features LCD real-time display, and offers optional Bluetooth & WiFi mobile app monitoring. With 6000 cycles @0.5C, 80% DOD and >98% round-trip efficiency, it provides stable emergency backup power for homes, cabins and remote locations. Full certifications including UN38.3, MSDS, CE and IEC guarantee global safety compliance.

Mobile 5.12kWh LiFePO4 Energy Storage Battery, LCD Display, BMS Protection
Technical Specifications
Item Specification
Battery Type LiFePO4
Nominal Voltage 51.2V
Nominal Capacity 100Ah Energy 5120Wh
Dimensions (L×W×H) 607.7 * 362.5 * 162.3 (mm) Weight 43KG
Efficiency (Round-trip) >98%
Max in Parallel 15PCS
Voltage Range 43.2V ~ 58.4V
Recommended Charge Voltage 57.6V
Max Charge Voltage 58.4V
Recommended Charge Current 70A
Max Continuous Charge Current 100A
Recommended Discharge Voltage 44.8V
Max Discharge Voltage 43.2V
Max Continuous Discharge Current 100A
Cycle Life (0.5C,25℃@80% DOD) 6000 Cycles
Storage Temperature -20℃ ~ 60℃
Wi-Fi & Bluetooth App (Option) Yes
Certification UN38.3 / MSDS / CE / IEC
Application Scenarios

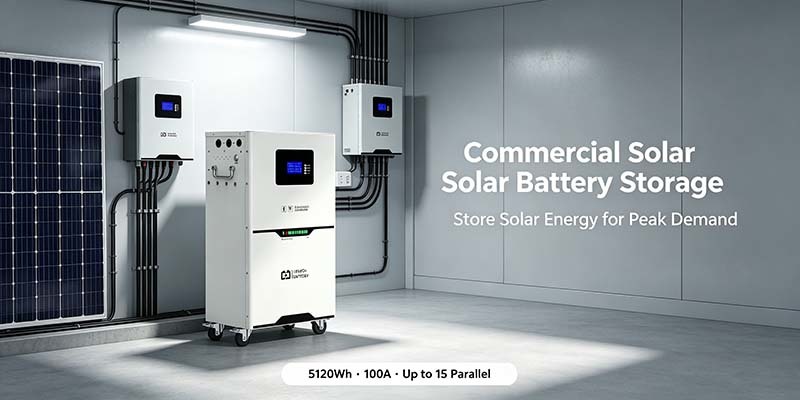

  • Residential home solar backup power for grid outage emergency supply
  • Off-grid cabins, tiny houses, remote villas without stable utility power
  • Solar photovoltaic storage system for self-consumption and peak shaving
  • RV, caravan and mobile home power storage
  • Remote farm, irrigation equipment and rural off-grid power supply
  • Small commercial shop emergency backup power
  • Marine / boat off-grid power storage
  • Telecom base station and remote monitoring equipment backup power
Mobile 5.12kWh LiFePO4 Energy Storage Battery, LCD Display, BMS Protection
Why Choose Us ?
  • We are a professional manufacturer focusing on LiFePO4 energy storage batteries with strict quality control.
  • Every battery undergoes full performance testing before shipment to ensure stable quality.
  • Custom service available for logo, packaging and parameter adjustment for bulk orders.
  • Complete certification documents to support customs clearance for global markets.
  • Fast technical support team, provide professional installation and troubleshooting guidance.
  • Competitive factory direct price, no middleman markup for bulk purchases.
  • 24/7 online pre-sales and after-sales service for global customers.
  • Reliable warranty coverage to protect your investment on home energy storage.
