Industrial Grade Silicone Conductive Spray Ink for Silicone Products Manufacturing
Industrial Grade Silicone Conductive Spray Ink for Silicone Products Manufacturing
Specifications
Certification :
ROHS，SGS
Brand Name :
KangLiBang
Price :
$10-$100
Delivery Time :
5-7 work days
Payment Terms :
T/T
Packaging Details :
1KG/BOTTLE
Place of Origin :
Guangdong, China
MOQ :
1KG
Description
Silicone Rubber Spraying Conductive Coating Ink

Silicone Rubber Spraying Conductive Coating Ink


Product Description

Featuring high-temperature vulcanization technology, this single-component ink is tailored for silicone surfaces needing electrical conductivity. It is applicable to silk screen printing, pad printing, and spot printing.


Application

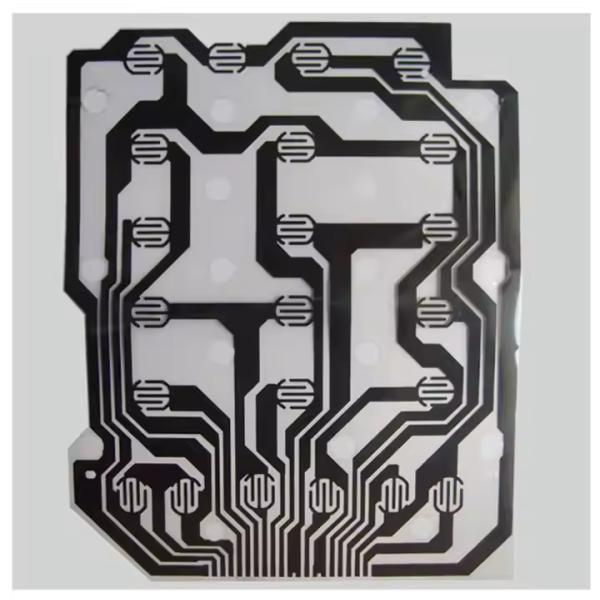

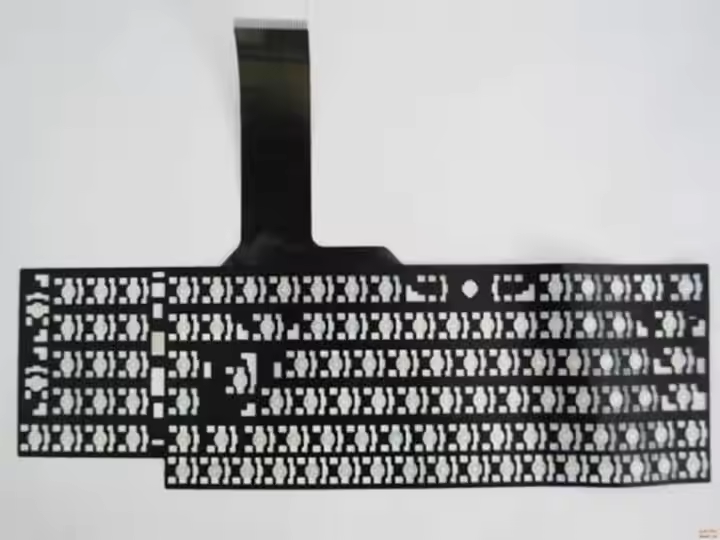

Mainly applied to silicone products that requires electrical conductivity.



Processing


1.Clean the silicone surface thoroughly to remove impurities, oil, particles, and other residues.
2. After taking the ink from the refrigerator, let it come to room temperature before using. If the ink is too thick, add odorless kerosene to obtain a viscosity suitable for screen, pad, or spot printing.
3. Leave the ink undisturbed for 10–30 minutes in a dust-free environment. Once the solvent has fully evaporated, curing will occur.
4. For vulcanization, bake at 180–200℃ for 10–20 minutes.
5. Use aviation kerosene as a diluent. For spot printing, the ink-to-thinner ratio is 1:2. For screen printing, the ratio is 1:0.2.
6. The resistance is about 100 Ω.
All the above physical data are for reference only.


Attention

1. The product should be sealed and stored at 0-10°C, and the storage period is three
months. When the product has passed the storage period, it can be further used after
the technical test.
2. The product should be stirred evenly and completely.
3. Printing must be done in a suitable environment. It is recommended to keep the
working area free of dust, keep the temperature below 25 ° C and control the
humidity to 60-75%. Too low humidity will easily cause static electricity in the ink,
which in turn may result in a poor printed image.
4. Unused ink should be sealed and refrigerated.


Packing

1KG/Bottle.

Application range:


Industrial Grade Silicone Conductive Spray Ink for Silicone Products Manufacturing


Industrial Grade Silicone Conductive Spray Ink for Silicone Products Manufacturing
