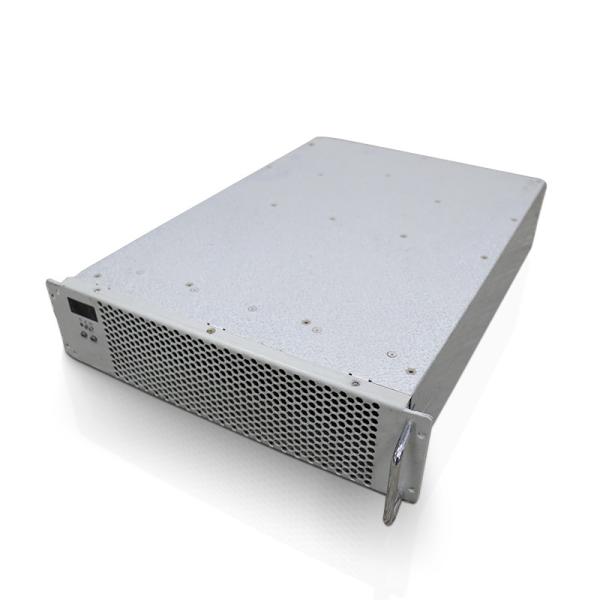

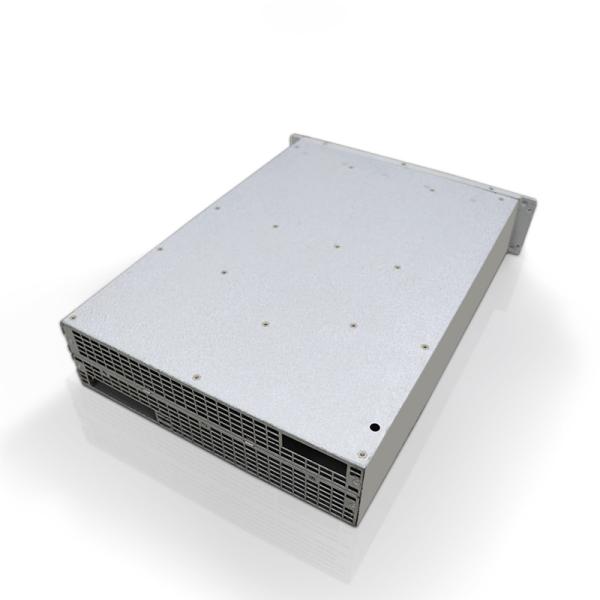

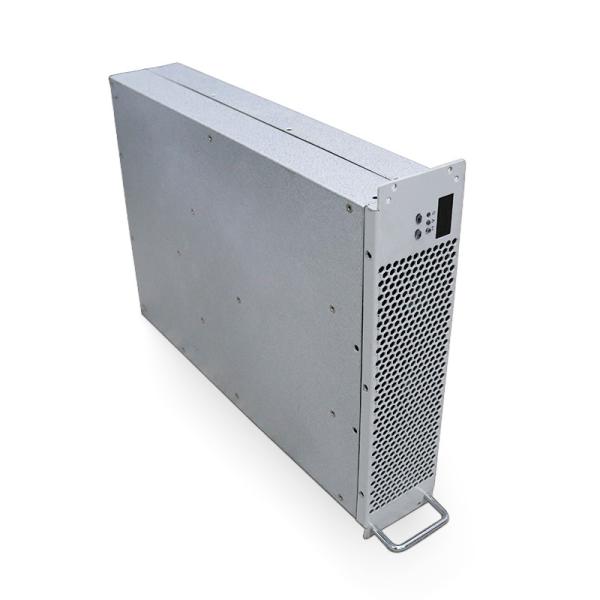

30kw DC-DC Power EV Charger Module For Fast EV Charging In -30C-70C
30kw DC-DC Power EV Charger Module For Fast EV Charging In -30C-70C
30kw DC-DC Power EV Charger Module For Fast EV Charging In -30C-70C
30kw DC-DC Power EV Charger Module For Fast EV Charging In -30C-70C
30kw DC-DC Power EV Charger Module For Fast EV Charging In -30C-70C
30kw DC-DC Power EV Charger Module For Fast EV Charging In -30C-70C
30kw DC-DC Power EV Charger Module For Fast EV Charging In -30C-70C
30kw DC-DC Power EV Charger Module For Fast EV Charging In -30C-70C
30kw DC-DC Power EV Charger Module For Fast EV Charging In -30C-70C
30kw DC-DC Power EV Charger Module For Fast EV Charging In -30C-70C
30kw DC-DC Power EV Charger Module For Fast EV Charging In -30C-70C
30kw DC-DC Power EV Charger Module For Fast EV Charging In -30C-70C
Specifications
Place of Origin :
Guangdong, China
Model Number :
DC Power Module
Brand Name :
KIWI
Packaging Details :
Carton/Custom
Price :
$1,360.00/pieces 1-99 pieces
Startup Time :
3s-8s
Efficiency :
≥96%
Input Frequency :
45Hz-65Hz
Cooling :
Fan Cooling
THD :
≤5%
Operating Temperature :
-30℃-70℃
Acoustic Noise :
<60dB
Pressure/Altitude :
79kPa-106kPa/2000m
MTBF :
>500000h(40℃)
Description

30kw DC-DC EV Charger Module for Fast EV Charging in -30C-70C Temperature Range

30kw DC-DC Power EV Charger Module For Fast EV Charging In -30C-70C
Shenzhen Kiwi Technology Co., Ltd.
As a solution provider, we can help you calculate the cost of use and match the best product solution with the local policy.
Products Description
30kw DC-DC Power EV Charger Module For Fast EV Charging In -30C-70C
- Ultra high efficiency: the highest efficiency> 96%, rated efficiency> 95%
- Ultra high power density: power density up to 45W/in
- Ultra wide output voltage range: 150VDC * 1000VDC
- Ultra small output ripple voltage: peak-to-peak ripple < 2V
- Ultra small standby power consumption: standby power < 11W
- Complete protection and alarm functions: input over/under voltage, output over voltage, over current, Over temperature protection, output under voltage alarm, output short circuit protection
- LED can display output voltage, output current, group address, protocol,
module address, manual or automatic, fault information
- Support CAN, 485 bus communication, power modules can be grouped by controller
- Adopt DSP digital control and support voltage and current adjustment function
- Battery current reverse protection circuit inside, support hot swap
- Automatically identify and verify new addresses without manually setting
- Discharge circuit inside
30kw DC-DC Power EV Charger Module For Fast EV Charging In -30C-70C
30kw DC-DC Power EV Charger Module For Fast EV Charging In -30C-70C
Product Paramenters
Model Number
UXC100040-SW
Type
DC/DC Converters, DC/AC Inverters
Output Current
0-100A
Output Frequency
50/60hz
Size
300*84*437.5mm
Weight
15
Certificate
CE
Startup Time
3s-8s
Efficiency
≥96%
Input Frequency
45Hz-65Hz
Communication
CAN&485
Cooling
Fan Cooling
THD
≤5%
Operating Temperature
-30℃-70℃
Acoustic Noise
<60dB
Pressure/Altitude
79kPa-106kPa/2000m
MTBF
>500000h(40℃)
