C Rail Cable Trolley System For Electric Hoist Traveling
C Rail Cable Trolley System For Electric Hoist Traveling
Specifications
Brand Name :
kiwicranes
Model Number :
LD
Certification :
ISO
Place of Origin :
China
MOQ :
1set
Payment Terms :
D/A,D/P,T/T,Western Union
Supply Ability :
10000sets one year
Delivery Time :
5-8 working days
Price :
USD300-3000/set
Packaging Details :
Crates
Conductor Type :
Aluminum/Copper
Nominal Current :
150A-3000A
D.C. Resistance :
0.015-0.376Ω/Km
Impendance :
0.017-0.381Ω/Km
Support Sapcing :
1.5m
Rail Length :
4.5-6m
Housing Length :
4.42-5.8m
Max Voltage :
660V
Expansion Joint :
No Required ≤200m
Flame Retardant :
Class B1-No Flaming Particles, Self-Extinguishing
Description

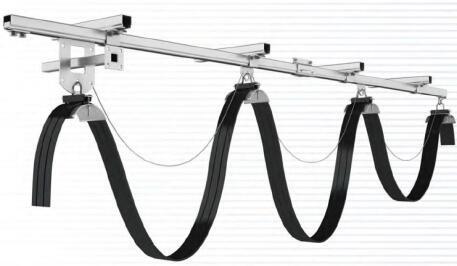

C-Rail Cable Trolley System For Electric Hoist Traveling

Comprehensive Guide to C-Track & Cable Trolleys Festoon Systems support conductor cables(flat or round) and hoses (hydraulic and pneumatic applications) for delivering power &control to mobile equipment in a safe, efficient and maintenance free method.The cable trolleys are well guided inside their C-tracks and protected against humidity , dust and icing. Cable trolleys not only deliver power and control to mobile equipment which has reciprocal motion but also support large quantities of data cables including optic fibre travelling independently from the mobile machinery. The relevant control carriers with and without push button lifting are also shown.

C Rail Cable Trolley System For Electric Hoist Traveling

1,Mass production of C-rails, large stock available

C Rail Cable Trolley System For Electric Hoist Traveling

C Rail Cable Trolley System For Electric Hoist Traveling

2,Towing trolley

C Rail Cable Trolley System For Electric Hoist Traveling

3, Middle cable trolley

C Rail Cable Trolley System For Electric Hoist Traveling

4, End cable trolley

C Rail Cable Trolley System For Electric Hoist Traveling

5, C-track hanger

C Rail Cable Trolley System For Electric Hoist Traveling

6, Joint clamp

C Rail Cable Trolley System For Electric Hoist Traveling

7,Flat cable for cranes traveling

C Rail Cable Trolley System For Electric Hoist Traveling

C-track datas

C Rail Cable Trolley System For Electric Hoist Traveling

Type C32*30*1.5
Materia Galvanized steel
Weight kg/m 1.1
A 32
B 30
C 12
δ 1.5
Max cable load 89kg(spacing 1.5m)
