10 Ton Span 30m Single Girder Gantry Crane Outdoor Use Electric
10 Ton Span 30m Single Girder Gantry Crane Outdoor Use Electric
Specifications
Brand Name :
kiwicranes
Model Number :
MH
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1
Payment Terms :
D/A,D/P,T/T,Western Union
Supply Ability :
1000sets one year
Delivery Time :
30 working days
Price :
USD10000~200000 one set
Safety Device :
overload limit switch
Delivery Inspection :
Available
Oem Service :
yes
Protection Grade :
IP55
Control Method :
Pendent button, wireless remote, cabin
Lifting Height :
6-30 meters
Work Duty :
A5~A7
Long Travel Speed :
0-45 m/min
Structure Form :
gantry
Crane Type :
MH Type gantry crane
Description

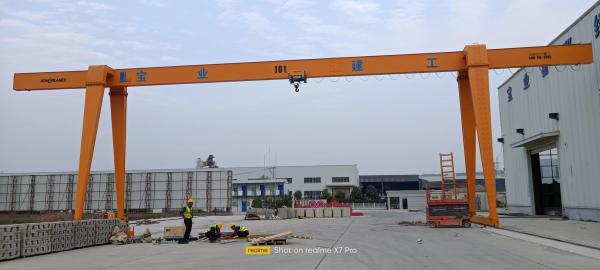

Outdoor Use Electric Single Girder Gantry Crane 10ton

Brief Description:
The Electric Single-Girder Gantry Crane (10-ton capacity) is a cost-effective lifting solution designed for outdoor/indoor material handling applications. It features a simple yet robust structure with a single girder design, powered by electric hoist for smooth operation. Ideal for workshops, warehouses, construction sites, and freight yards where heavy loads need to be moved efficiently. The crane offers easy installation, low maintenance, and reliable performance with standard safety features like overload protection and limit switches. operated by radio remote control.

1)The main girder adopts welded box beam, which has compact structure and light weight.It can be bolted in sections if span over 12 meters, which is convenient for container transportation.

10 Ton Span 30m Single Girder Gantry Crane Outdoor Use Electric

2)end carriage

  • Wheels & Drive: Equipped with double-flanged wheels (cast steel or forged) and motorized travel drives (both sides) for smooth movement.

  • Buffers: Integrated rubber to absorb shocks at travel limits.

  • Guarding: Optional anti-collision devices and cable reels for power supply management.

  • Surface Treatment: Painted with anti-rust primer and weather-resistant topcoat for outdoor use.

10 Ton Span 30m Single Girder Gantry Crane Outdoor Use Electric

10 Ton Span 30m Single Girder Gantry Crane Outdoor Use Electric

10 Ton Span 30m Single Girder Gantry Crane Outdoor Use Electric

3)legs

Fabricated from high-quality Q235B steel with rigid box-type

10 Ton Span 30m Single Girder Gantry Crane Outdoor Use Electric

4) control panel for long traveling(VFD control)

pendant push buttons control (radio wireless remote control option)

10 Ton Span 30m Single Girder Gantry Crane Outdoor Use Electric

5) cross C-track power cables

10 Ton Span 30m Single Girder Gantry Crane Outdoor Use Electric

6) electric wire rope hoist(M5 duty, lower headroom type)

10 Ton Span 30m Single Girder Gantry Crane Outdoor Use Electric

Capacity 10ton
Span 30m (customizable)
Lifting Height 12m
Work Duty A5
Lifting Speed 5/0.8m/min
Travelling Speed

20 m/min VFD (crab),

30 m/min VFD(gantry)
Power Supply

380V/50Hz, 3-phase

(or as required)
Hoist Type Electric wire rope hoist
Control Mode Pendant push-button/Radio remote
Rail Type P30/P38 (or customer-specified)
Ambient Temperature -20°C to +40°C
Safety Features Overload limiter, limit switches, emergency stop
